Chord NU1-N UHF Wireless Beltpack Microphone System

£9999
RRP £11900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Chord NU1-N is a UHF wireless microphone system built around a fixed-frequency beltpack transmitter and a half rack-width receiver. It runs on 864.1MHz, which is licence free in the UK and EU, so you can set it up and use it straight away without applying for permission. The system comes with a choice of neckband or lavalier microphone (a lavalier is the small clip-on mic you'll often hear called a lapel mic), giving you a hands-free option for presenting, teaching or performing.

To keep the signal stable, the receiver uses a pilot tone and mute circuit that cuts unwanted noise when the transmitter is off or out of range. The working range is up to 60m, with a signal to noise ratio above 105dB and THD under 0.5% at 1kHz, so speech and vocals come through clean. Frequency response covers 50Hz to 18kHz, and the balanced output sits at 400mV, with an unbalanced level of 200mV and a 2.2k Ohm output impedance for connecting into a mixer or amplifier.

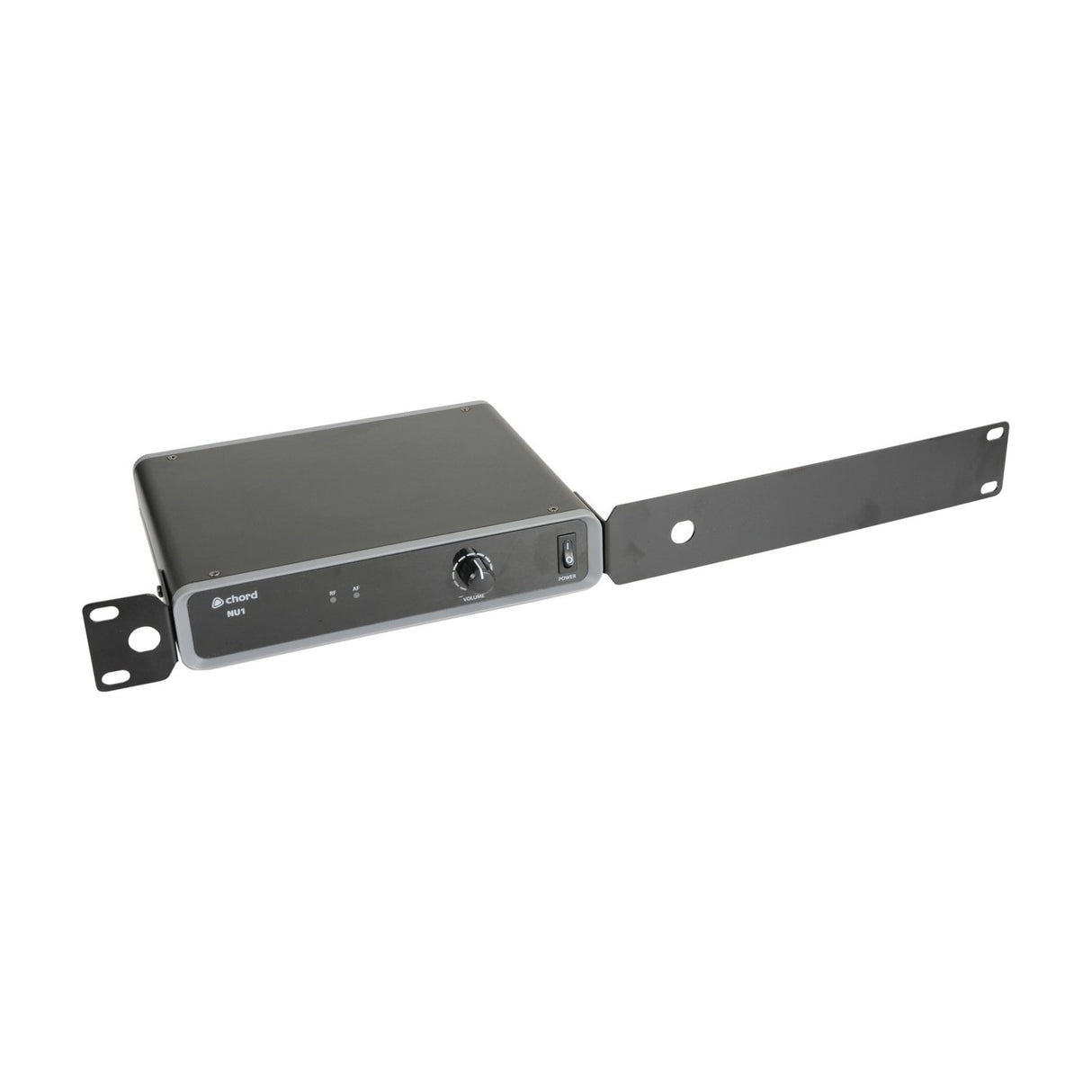

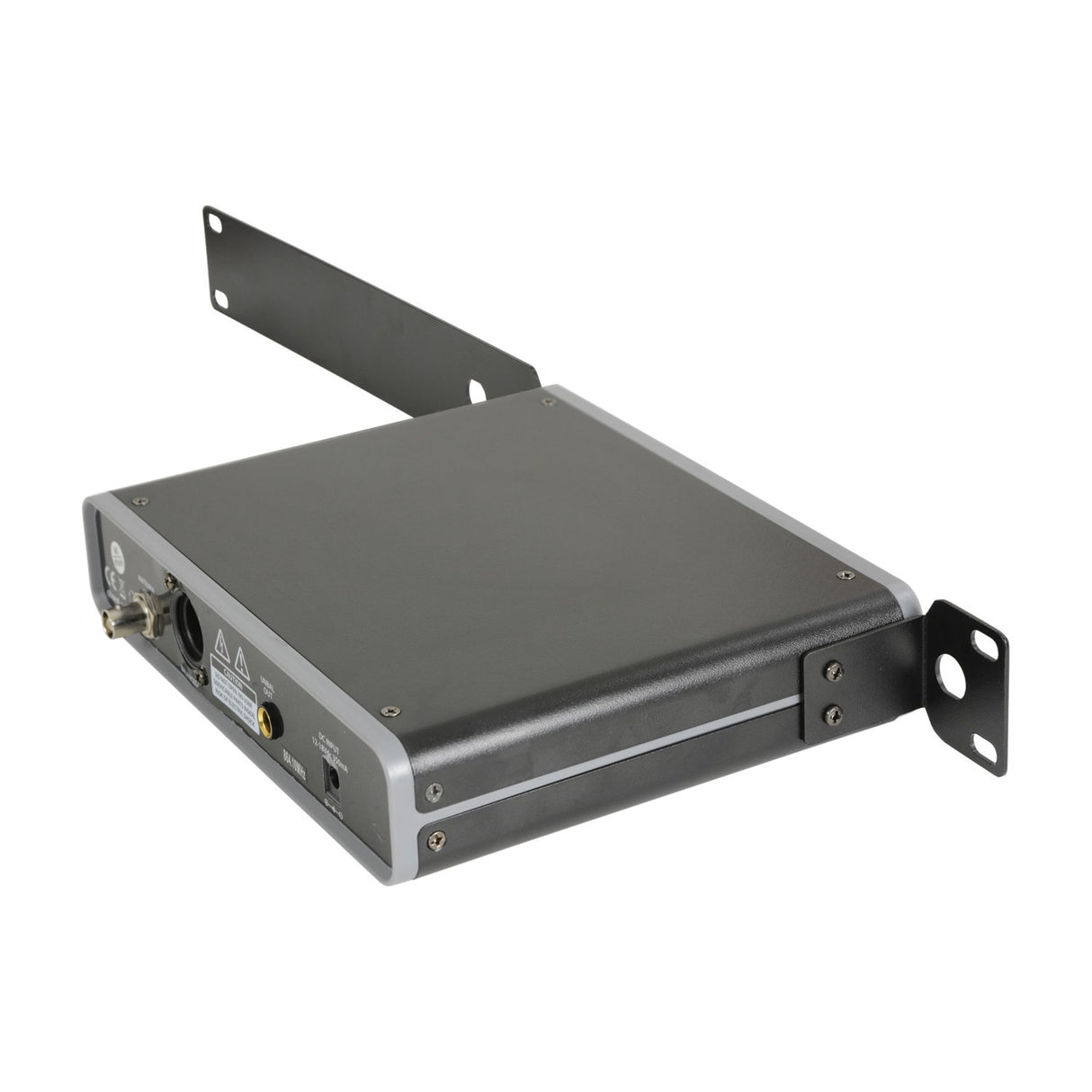

The receiver measures 44 x 198 x 190mm and weighs 710g. It's supplied with rack ears and front-mounting antenna accessories, so you can fit it into a standard 19-inch rack alongside your other gear. Power comes from the included mains adaptor (12-18Vdc, 350mA), while the transmitter runs on 2 x AA batteries, also supplied. The transmitter measures 205 x 68 x 25mm and weighs 76g without a battery, keeping it light enough to wear comfortably on a belt or waistband.

Specification
Carrier frequency 864.1MHz
Power supply 12-18Vdc, 350mA (mains adaptor included)
Range 60m
Batteries 2 x AA (for transmitter - included)
Signal to noise ratio >105dB
THD <0.5% @ 1kHz
Frequency response 50Hz-18KHz ±1dB
Image rejection >85dB
Output impedance 2.2k Ohm
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions : receiver 44mm x 198mm x 190mm
Weight : receiver 0.71KG
Dimensions : transmitter 205mm x 68mm x 25mm
Weight : transmitter 0.08KG
Downloads

Product Manual

Frequently Asked

Do I need a licence to use the NU1-N?

No. It operates on 864.1MHz, which is licence free in both the UK and EU, so you can use it without applying for any permit.

Can I choose between a neckband and lavalier mic?

Yes. The system is supplied with a choice of neckband or lavalier (lapel) microphone, both giving you hands-free operation.

Will the receiver fit a standard rack?

Yes. It's a half rack-width unit and comes with rack ears and front-mounting antenna accessories to fit standard 19-inch racks.

How is the system powered?

The receiver uses the included mains adaptor (12-18Vdc, 350mA). The beltpack transmitter runs on 2 x AA batteries, which are also included.

What is the working range?

The NU1-N has a range of up to 60m, depending on your environment and any obstructions between transmitter and receiver.

What outputs does the receiver have?

It provides a balanced output at 400mV and an unbalanced output at 200mV, with a 2.2k Ohm output impedance.
