Chord NU1-N UHF Wireless Beltpack Microphone System

£9999
RRP £11900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

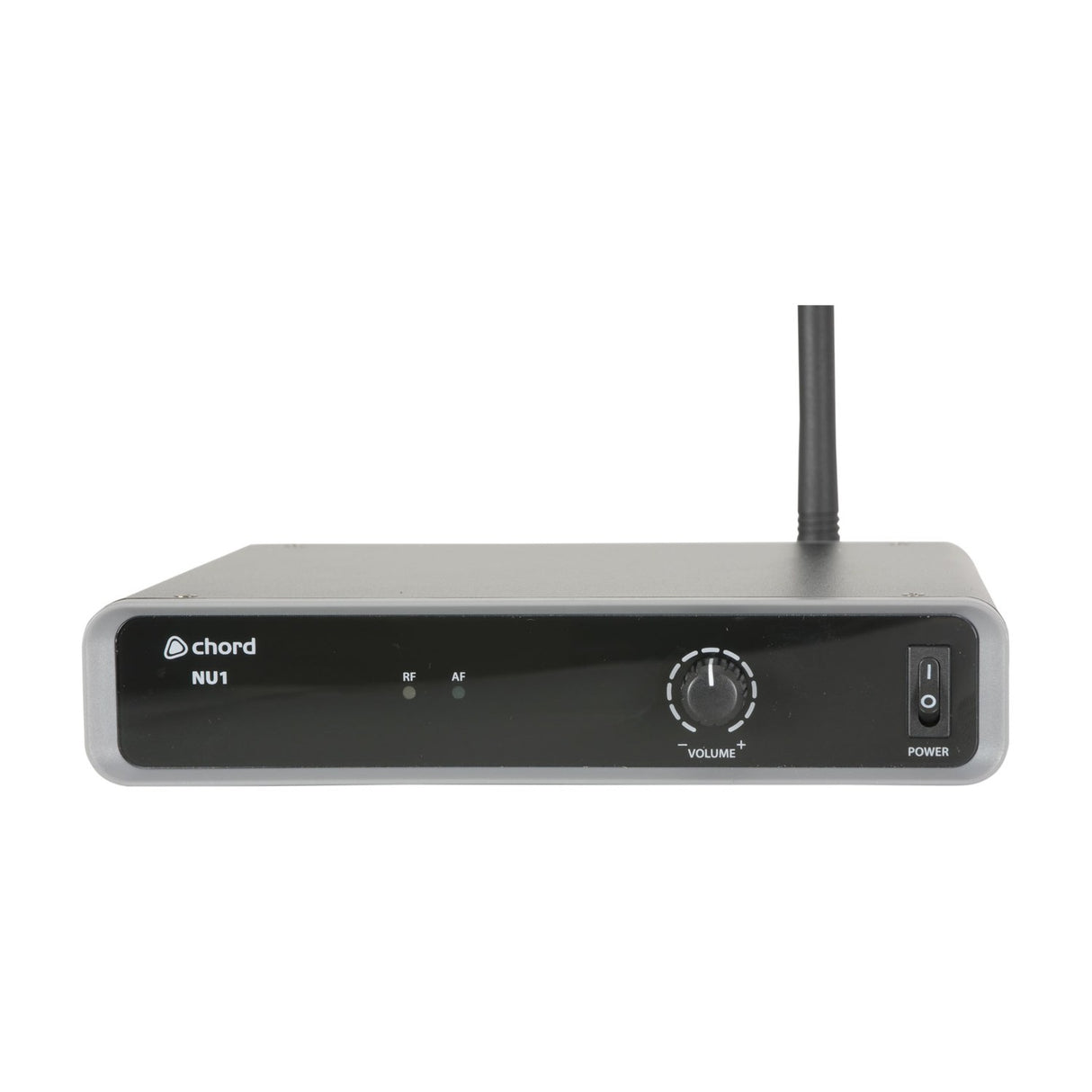

The Chord NU1-N is a wireless microphone system built around a fixed UHF beltpack transmitter and a half rack-width receiver. It operates at 863.1MHz, which is licence free in both the UK and EU, so you can run it without paying for a spectrum permit. A pilot tone and mute circuit keep the signal stable and cut out unwanted noise when the transmitter is switched off or moves out of range.

You get a choice of microphone with the system: a neckband mic or a lavalier (also called a lapel or tie-clip mic). Both plug into the beltpack transmitter, which measures 205 x 68 x 25mm and weighs 76g without its battery. Power for the transmitter comes from 2 x AA batteries, included in the box. The receiver runs from the supplied mains adaptor (12-18Vdc, 350mA) and gives a working range of around 60m in typical conditions.

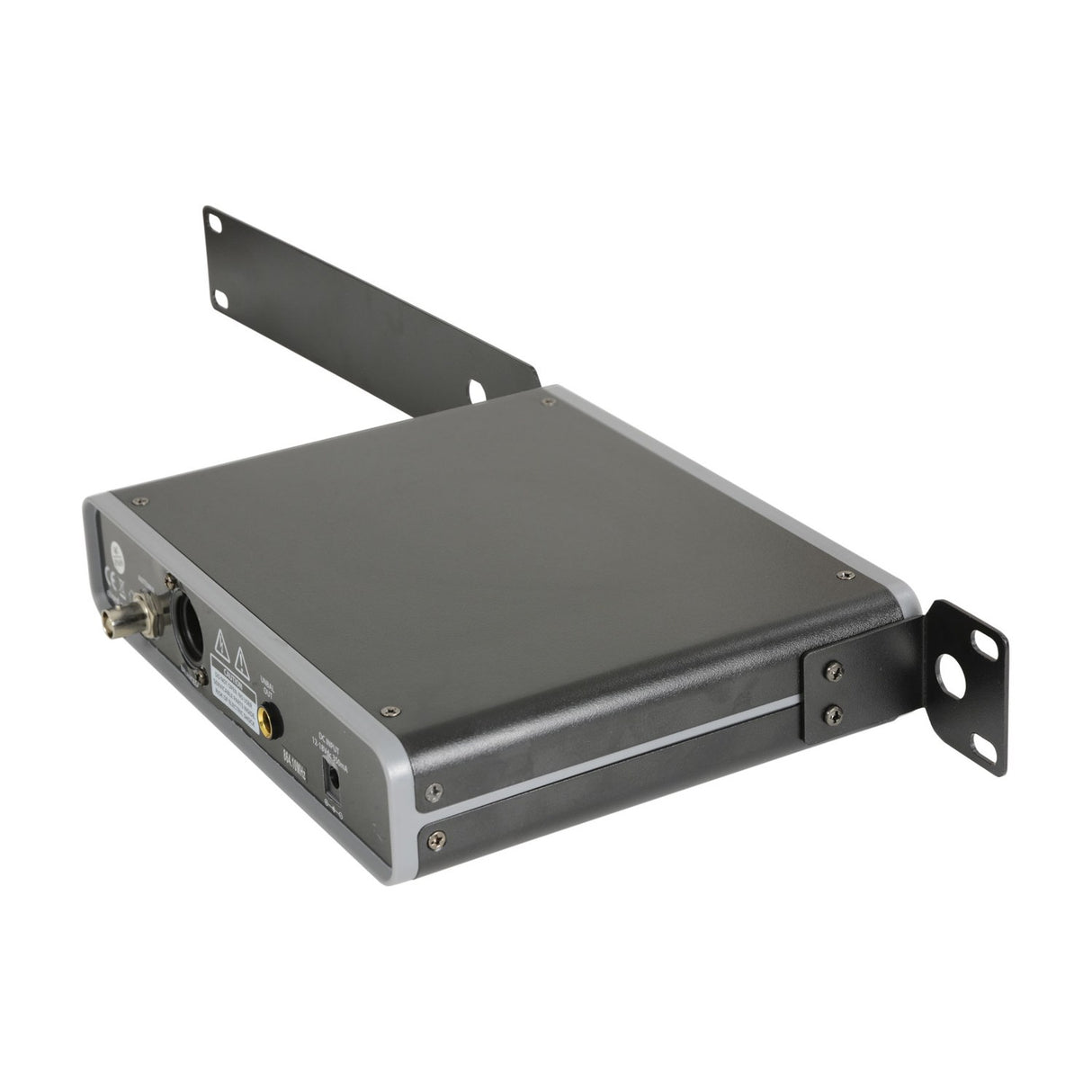

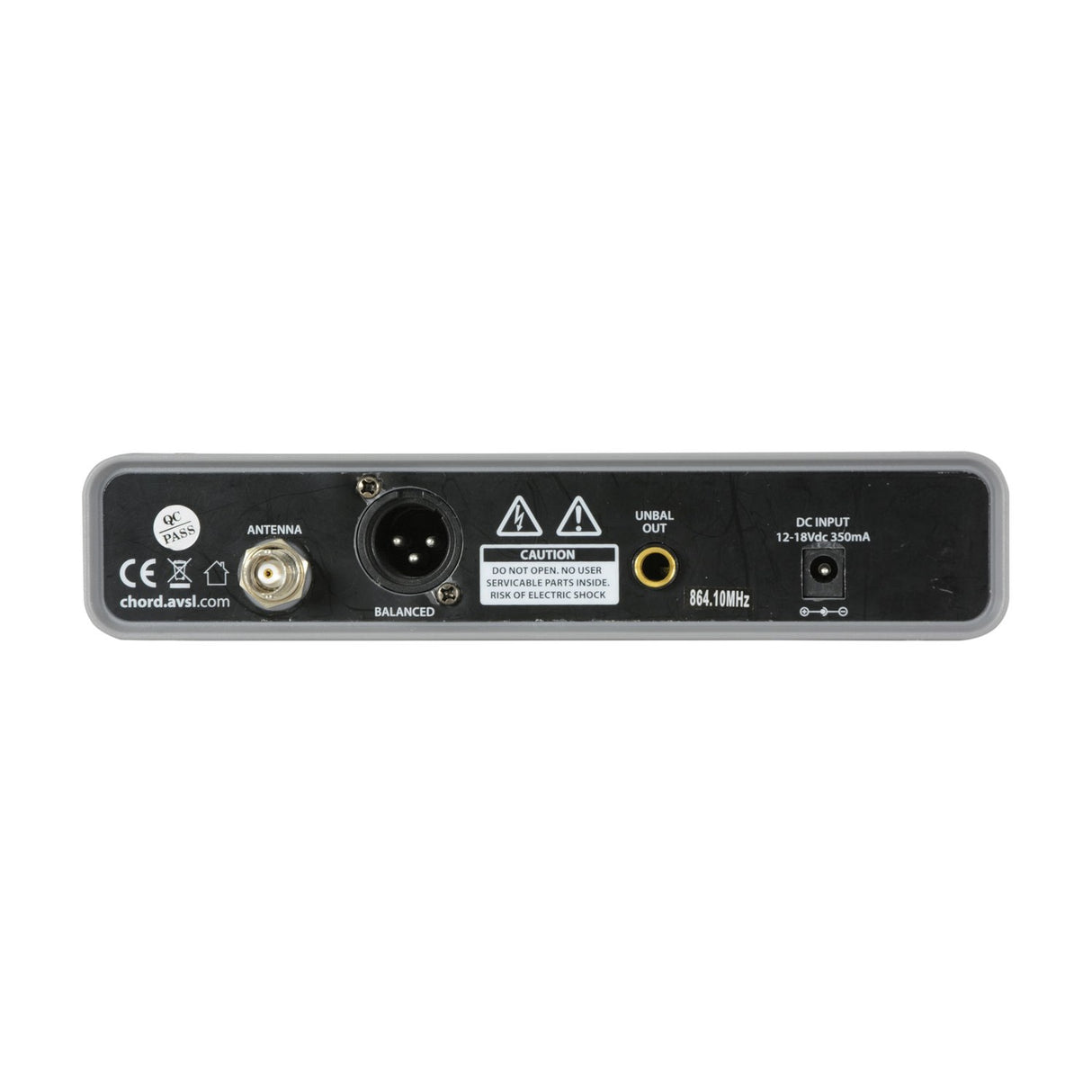

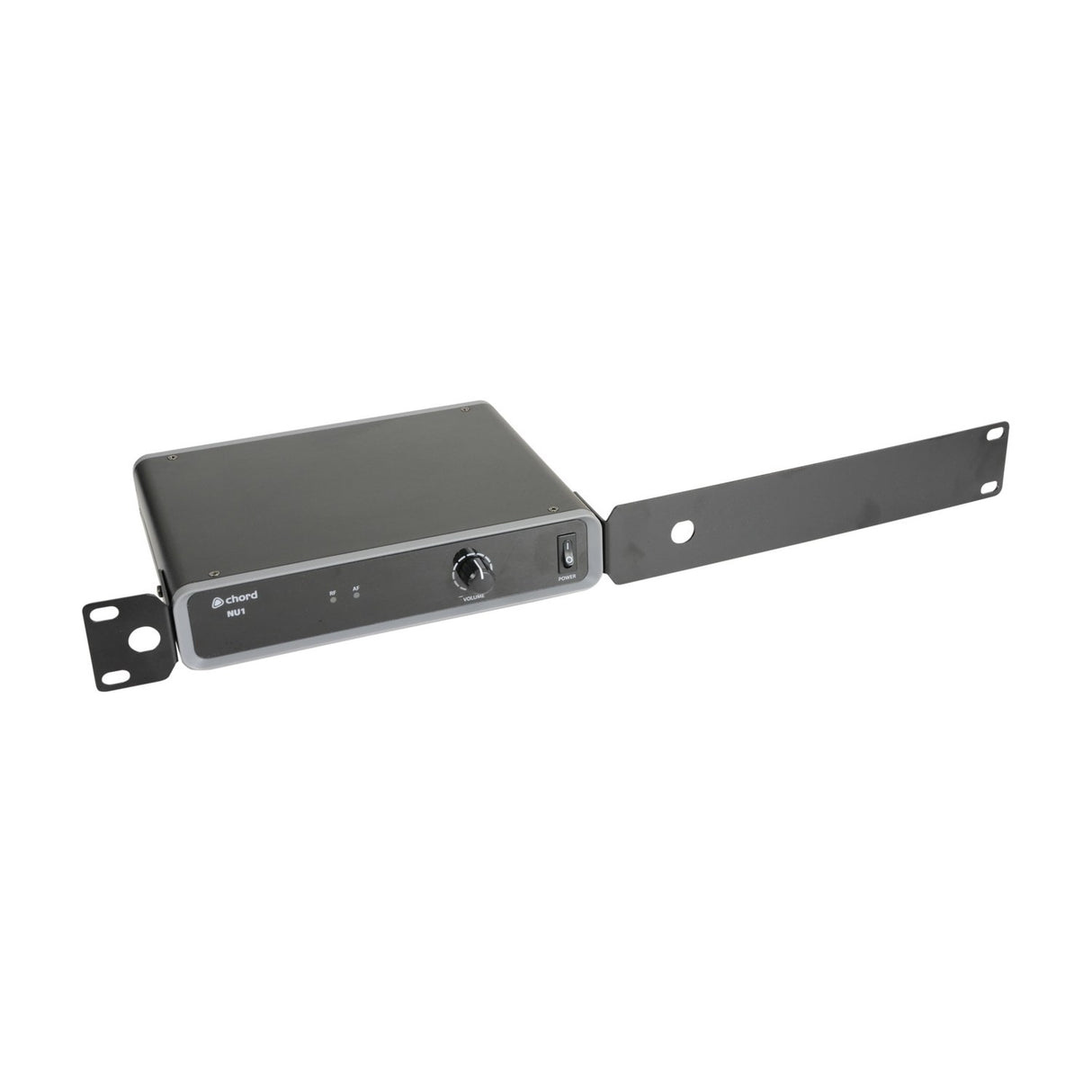

The receiver unit measures 44 x 198 x 190mm and weighs 710g, and it fits standard 19" racks using the rack ears and front-mounting aerial (antenna) accessories that come as part of the package. On the audio side you get a signal to noise ratio of more than 105dB, THD below 0.5% at 1kHz and a frequency response of 50Hz to 18kHz ±1dB. Output is 400mV balanced or 200mV unbalanced, with a 2.2k Ohm output impedance. It suits presentations, houses of worship, small stages and any setting where you want hands-free wireless audio.

Specification
Carrier frequency 863.1MHz
Power supply 12-18Vdc, 350mA (mains adaptor included)
Range 60m
Batteries 2 x AA (for transmitter - included)
Signal to noise ratio >105dB
THD <0.5% @ 1kHz
Frequency response 50Hz-18KHz ±1dB
Image rejection >85dB
Output impedance 2.2k Ohm
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions : receiver 44mm x 198mm x 190mm
Weight : receiver 0.71KG
Dimensions : transmitter 205mm x 68mm x 25mm
Weight : transmitter 0.08KG
Downloads

Product Manual

Frequently Asked

Do I need a licence to use the NU1-N?

No. It runs at 863.1MHz, which is licence free for use in the UK and EU, so there is nothing extra to pay or register.

What microphone comes with the system?

You get a choice of a neckband microphone or a lavalier mic (also known as a lapel or tie-clip mic). Both connect to the beltpack transmitter.

Can I mount the receiver in a rack?

Yes. The receiver is half rack-width and fits standard 19" racks using the included rack ears and front-mounting aerial (antenna) accessories.

What is the working range?

The system gives a range of around 60m under typical operating conditions.

How is the system powered?

The transmitter uses 2 x AA batteries (included), and the receiver runs from the supplied mains adaptor at 12-18Vdc, 350mA.

Does it include everything to get started?

Yes. It comes with the mains adaptor, 2 x AA batteries, rack-mounting accessories and your chosen neckband or lavalier microphone.
