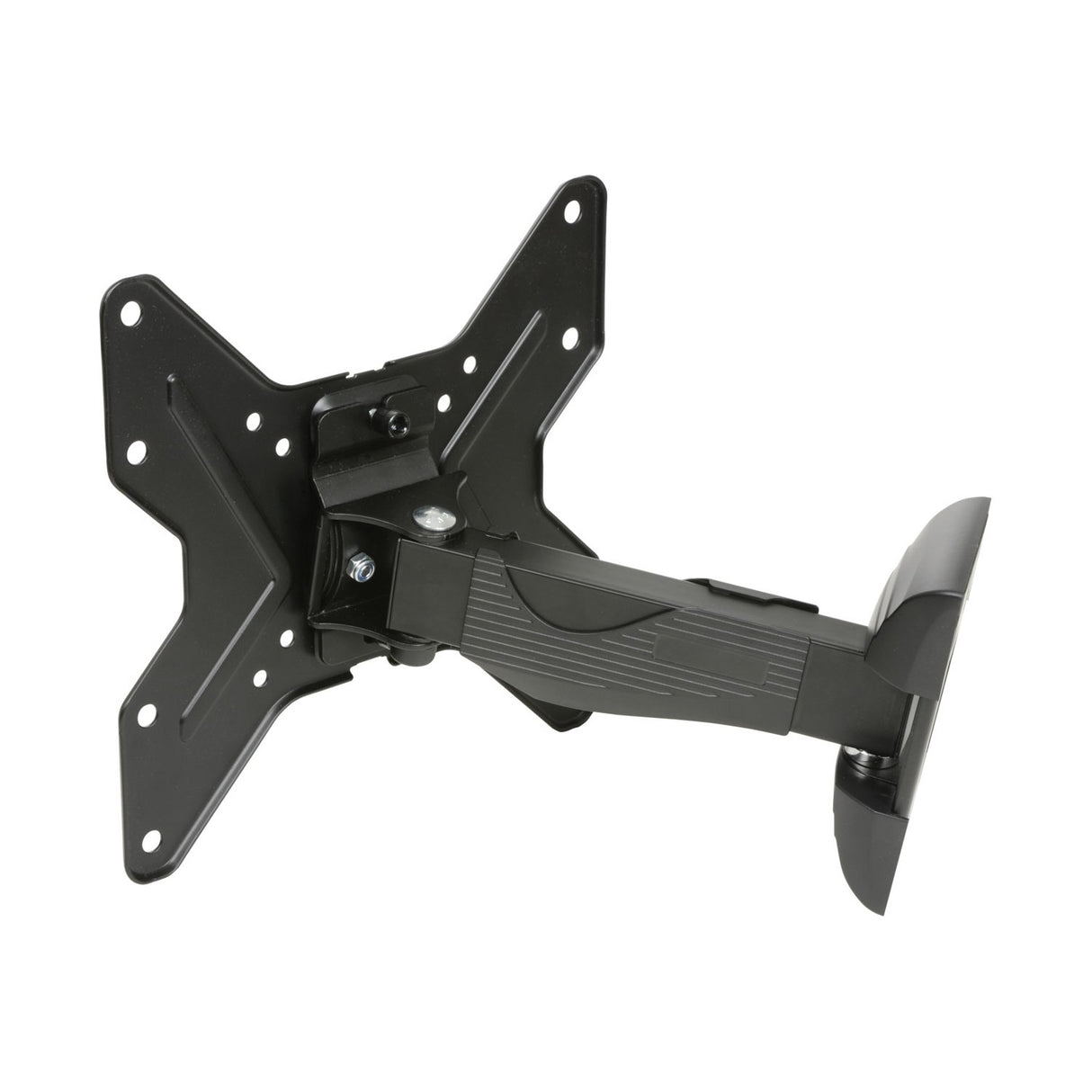

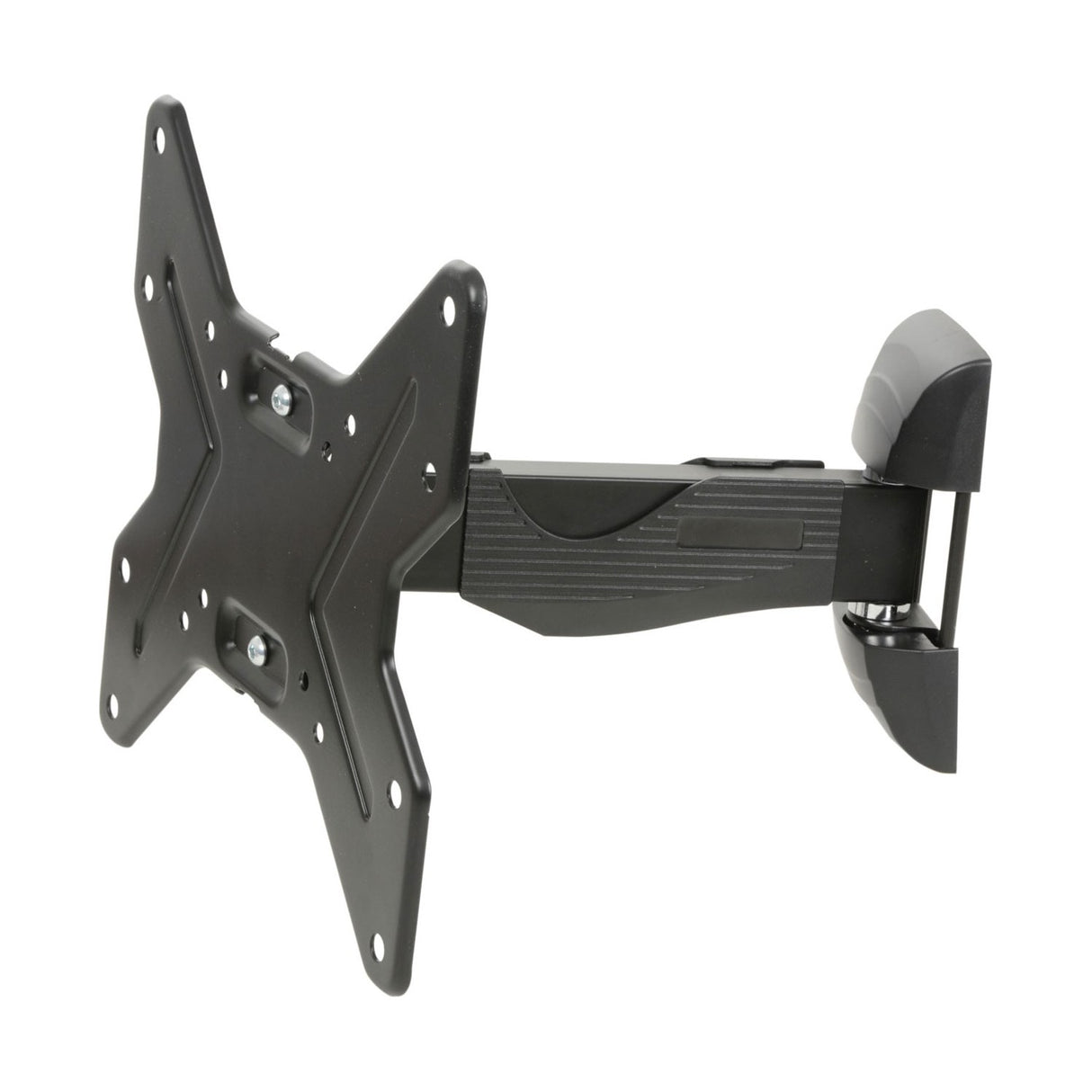

AV:Link INS201 Full Motion Single Arm TV Wall Bracket

£1799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The AV:Link INS201 is a full motion wall bracket (wall mount) made from rolled steel, built to hold LCD or LED screens sized 26" to 45" and weighing up to 25kg. It works with VESA 75 x 75, 100 x 100 and 200 x 200mm hole patterns, so it fits a wide spread of TVs and monitors without you needing to check for an unusual fixing layout. The single arm design keeps things simple while still giving you room to move the screen where you need it.

Movement is where this bracket earns its place. The arm swivels 180° from the wall connection point and a further 180° from the arm itself, letting you pull the screen out and angle it across the room or back flat against the wall when it's not in use. There's a tilt mechanism running from -5° to 10° to help cut glare, and the distance from the wall adjusts between 50mm and 225mm. Locking screws hold everything in place once you've set your position, so the screen stays put.

The compact wall plate measures 143 x 72mm (W x H) and the whole bracket weighs 1.4kg, which makes it manageable to handle during fitting. All the installation hardware is included, along with a full set of TV fixing screws: 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm and 4x M8 x 20mm. That range of screw sizes covers most mounting holes you're likely to meet, so you should have what you need to get the job done in one go.

Specification
Max. hole spacing 200 x 200mm
Distance from wall 50 - 225mm
Max. weight load 25.00KG
VESA 75 x 75, 100 x 100 and 200 x 200mm
Wall plate dimensions 143mm x 72mm (W x H)
Weight 1.40KG
TV fixing screws provided 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm, 4x M8 x 20mm
Downloads

Product Manual

Frequently Asked

What size TVs does this bracket fit?

It suits LCD or LED screens sized 26" to 45" and weighing up to 25kg.

Which VESA patterns are supported?

The INS201 works with VESA 75 x 75, 100 x 100 and 200 x 200mm hole patterns.

How much can the bracket move?

It swivels 180° from the wall connection point and 180° from the arm, with -5° to 10° of tilt. The distance from the wall adjusts between 50mm and 225mm.

Are fixing screws included?

Yes. You get 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm and 4x M8 x 20mm TV fixing screws, plus the wall mounting hardware.

How is the screen held securely?

Locking screws let you fix your chosen position so the screen stays where you set it.

What are the wall plate dimensions?

The wall plate measures 143 x 72mm (W x H), and the complete bracket weighs 1.4kg.
