AV:Link HQT201 Full Motion Double Arm TV Wall Bracket

£2699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

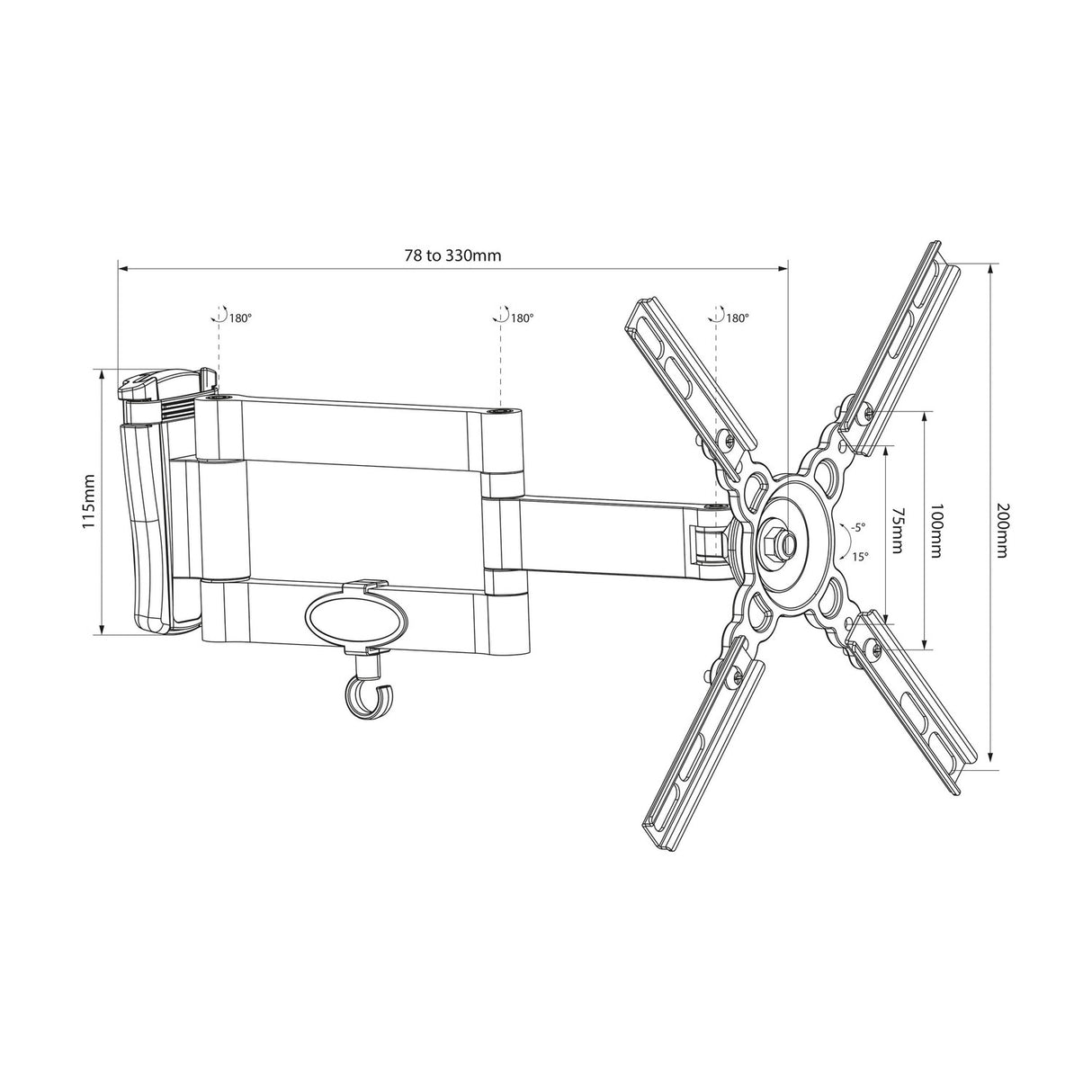

The AV:Link HQT201 is a double arm, fully adjustable steel wall bracket (US: wall mount) built for screens from 13" to 42". The double arm design lets you pull the screen out from the wall, push it back flat, and angle it to suit where you sit. It swivels 180° from the wall connection point and a further 180° from the arm joint, so you can turn the screen towards a sofa or kitchen worktop with ease.

For fine tuning, the tilt mechanism gives you -5° to 15° of movement, useful for cutting glare or lining the picture up with a higher or lower seat. The bracket sits between 78mm and 330mm from the wall depending on how far you extend the arms, and it holds up to 15kg. It supports VESA 75 and 100 hole patterns as standard, with adaptors included to reach VESA 200x200mm. A built-in lock adds safety and stability once the screen is in place.

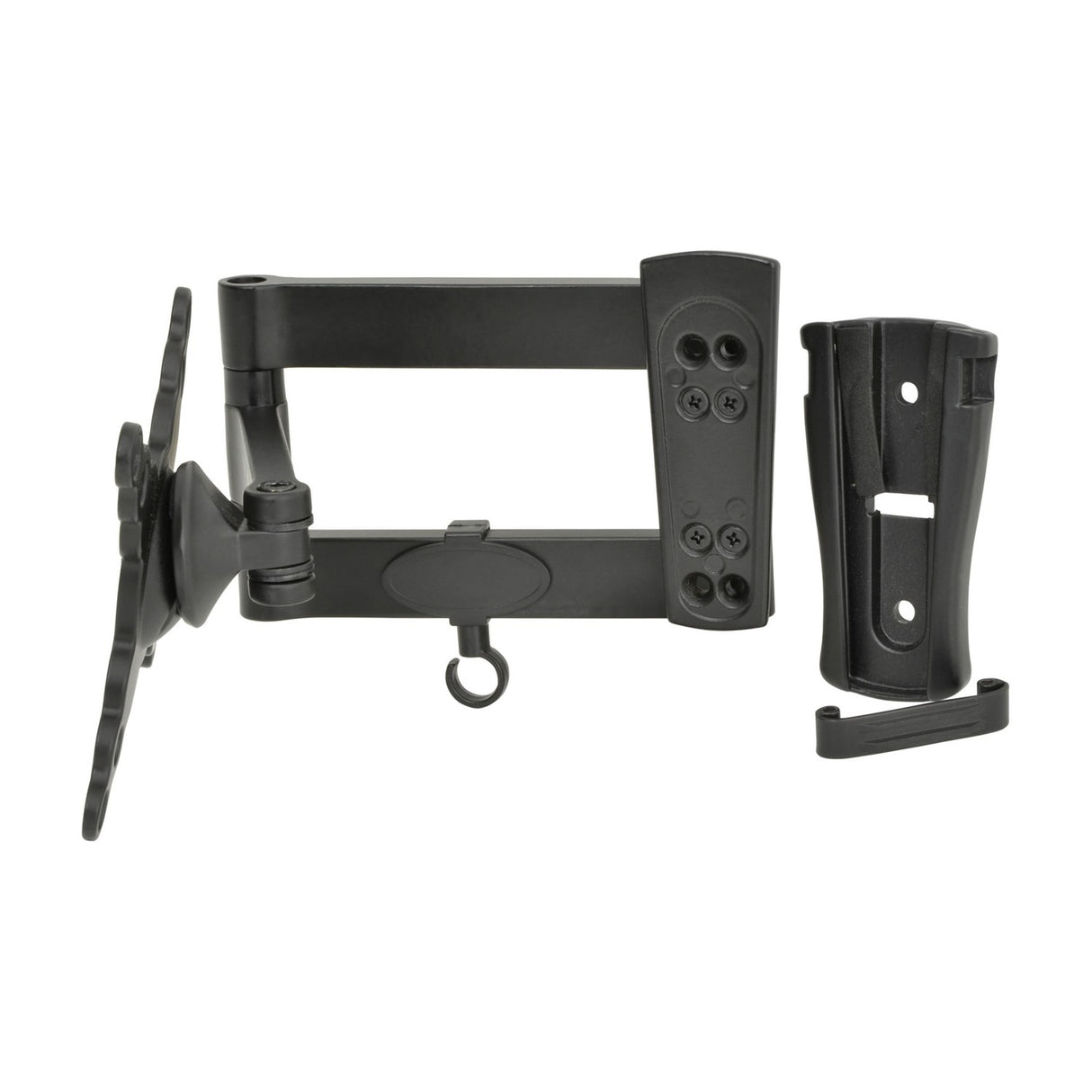

Setup is straightforward. The bracket detaches from the wall mount so you can fix the wall plate first, then hang the screen. An integrated spirit level helps you get the plate straight, and a cable retainer keeps leads tidy behind the screen. The wall plate measures 57 x 115mm (W x H) and the whole bracket weighs just over 1kg. A full fixing kit is supplied, including TV fixing screws in M4, M5, M6 and M8 sizes to match a wide spread of monitors and televisions.

Specification
Max. VESA 200x200mm (with adaptor)
Distance from wall 78 - 330mm
Max. weight load 15.00KG
Wall plate dimensions 57mm x 115mm (W x H)
Weight 1.02KG
TV fixing screws provided 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm
Screen size 13" to 42"
Downloads

Product Manual

Frequently Asked

What screen sizes does the HQT201 fit?

It suits screens from 13" to 42", covering most monitors and smaller televisions.

How much weight can it hold?

The maximum load is 15kg, so check your screen's weight against this before fitting.

Which VESA patterns are supported?

VESA 75 and 100 are supported as standard, and the included adaptors let you reach VESA 200x200mm.

How far does it move from the wall?

The double arms extend from 78mm to 330mm from the wall, plus 180° swivel at both the wall point and arm joint.

Can I tilt the screen?

Yes, the tilt mechanism gives -5° to 15° of movement to reduce glare and adjust the viewing angle.

Are the fixings included?

Yes, a full installation kit is supplied with TV fixing screws in M4, M5, M6 and M8 sizes.
