AV:Link HQS201 Full Motion 13-42" TV Wall Mount Bracket

£1699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

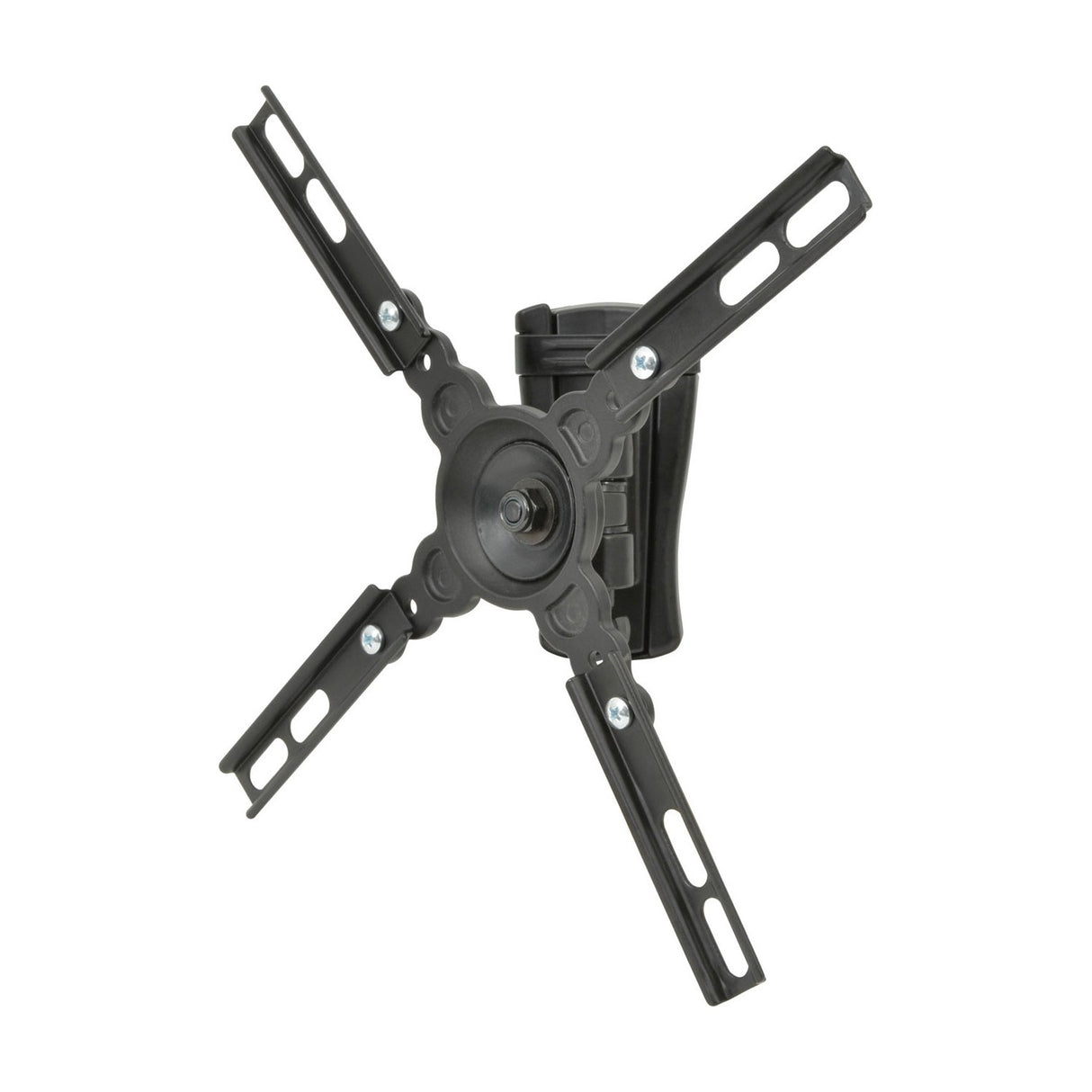

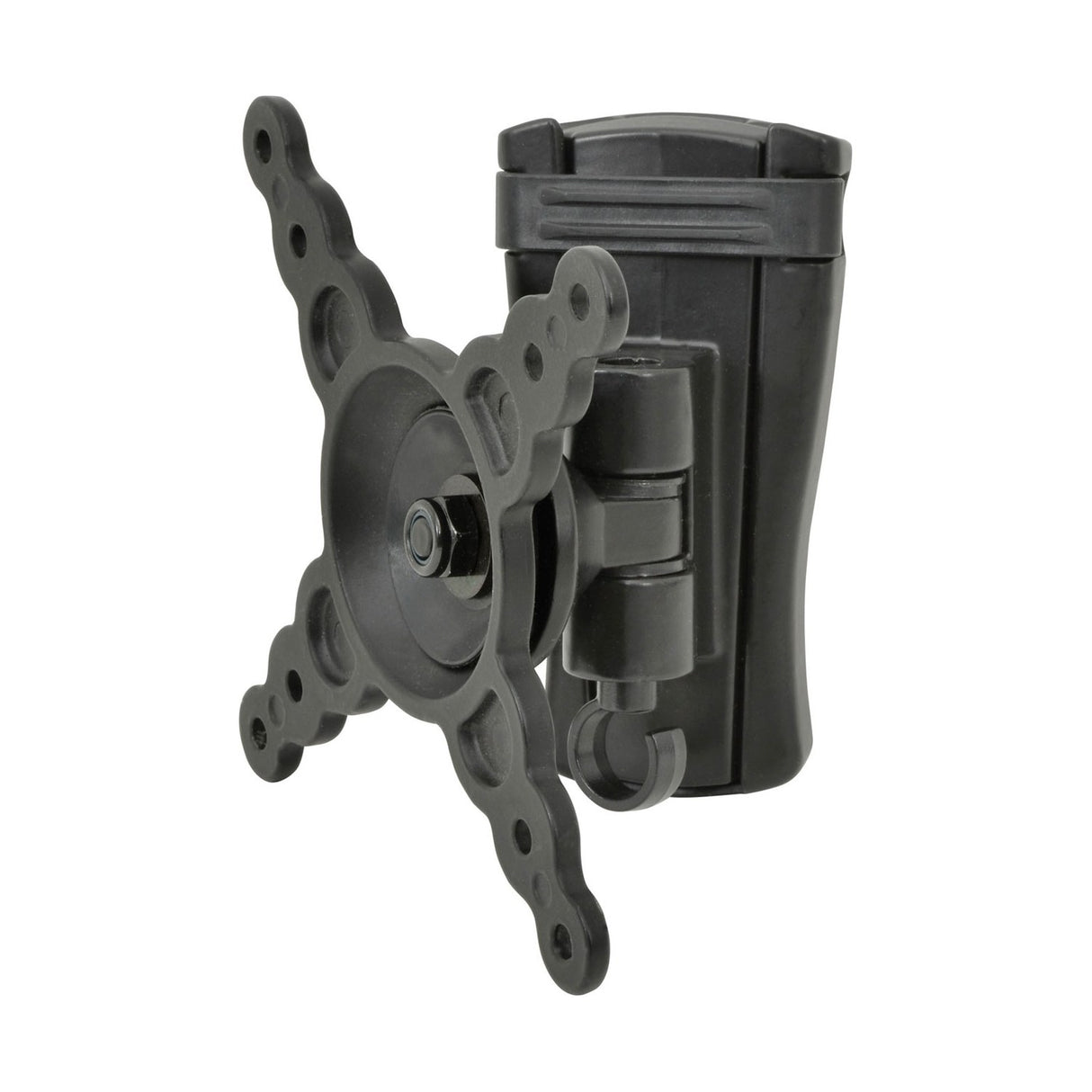

The AV:Link HQS201 is a compact steel wall bracket made for screens from 13 to 42 inches. It suits both TVs and monitors, so it works well in a bedroom, kitchen, study or any spot where you want to keep a screen off the surface and free up space. The full motion design lets you pull the screen out, angle it and turn it towards you, which helps when seating isn't directly in front of the wall.

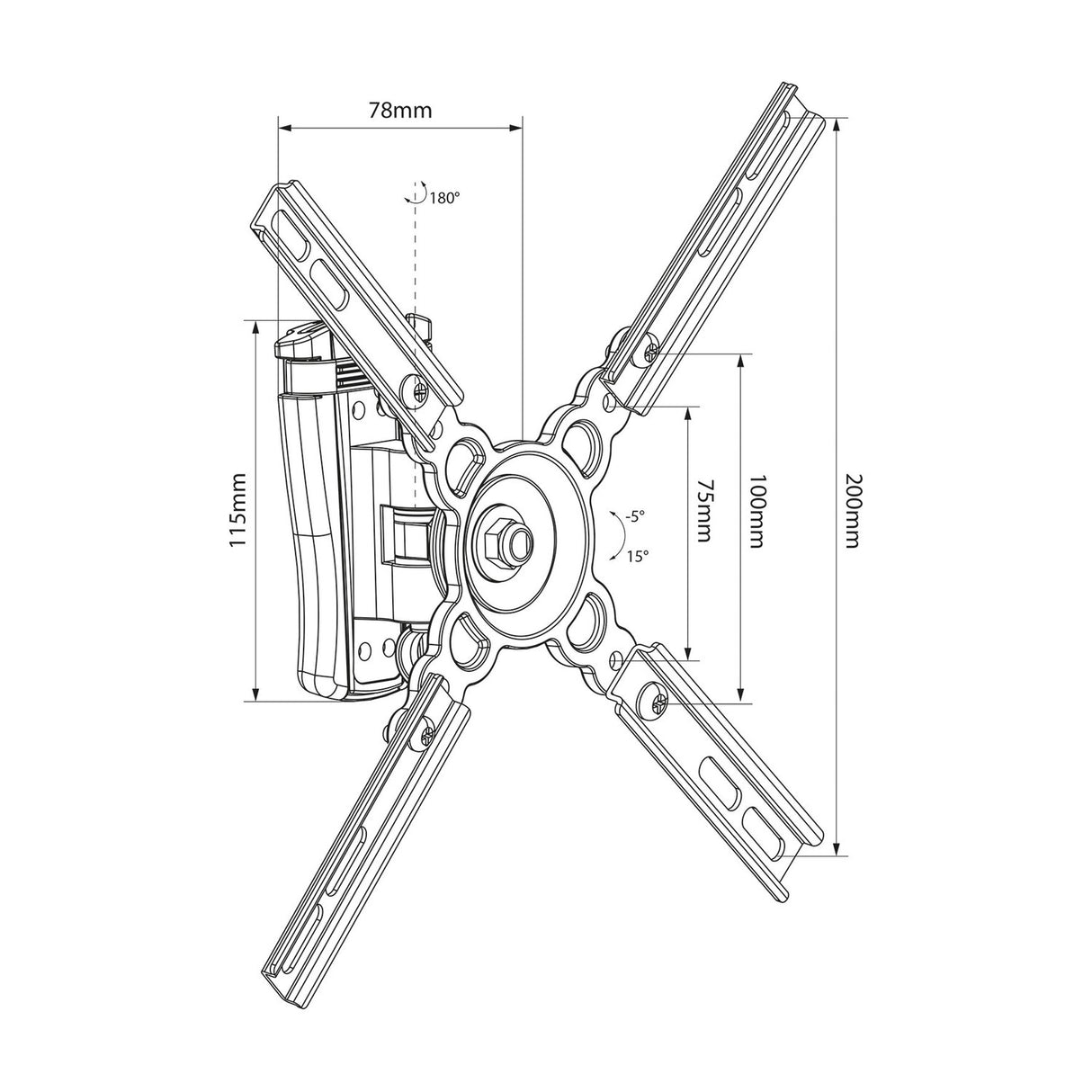

You get a good range of movement here. The bracket tilts from -5° to 15° to cut glare and reflections, and it swivels up to 180° from the wall connection point so you can turn the screen across the room. It sits 78mm from the wall and takes a maximum load of 15kg. VESA 75 and 100 hole patterns are covered as standard, and the supplied adaptors extend this to VESA 200x200mm, so you can fit a wider selection of screens.

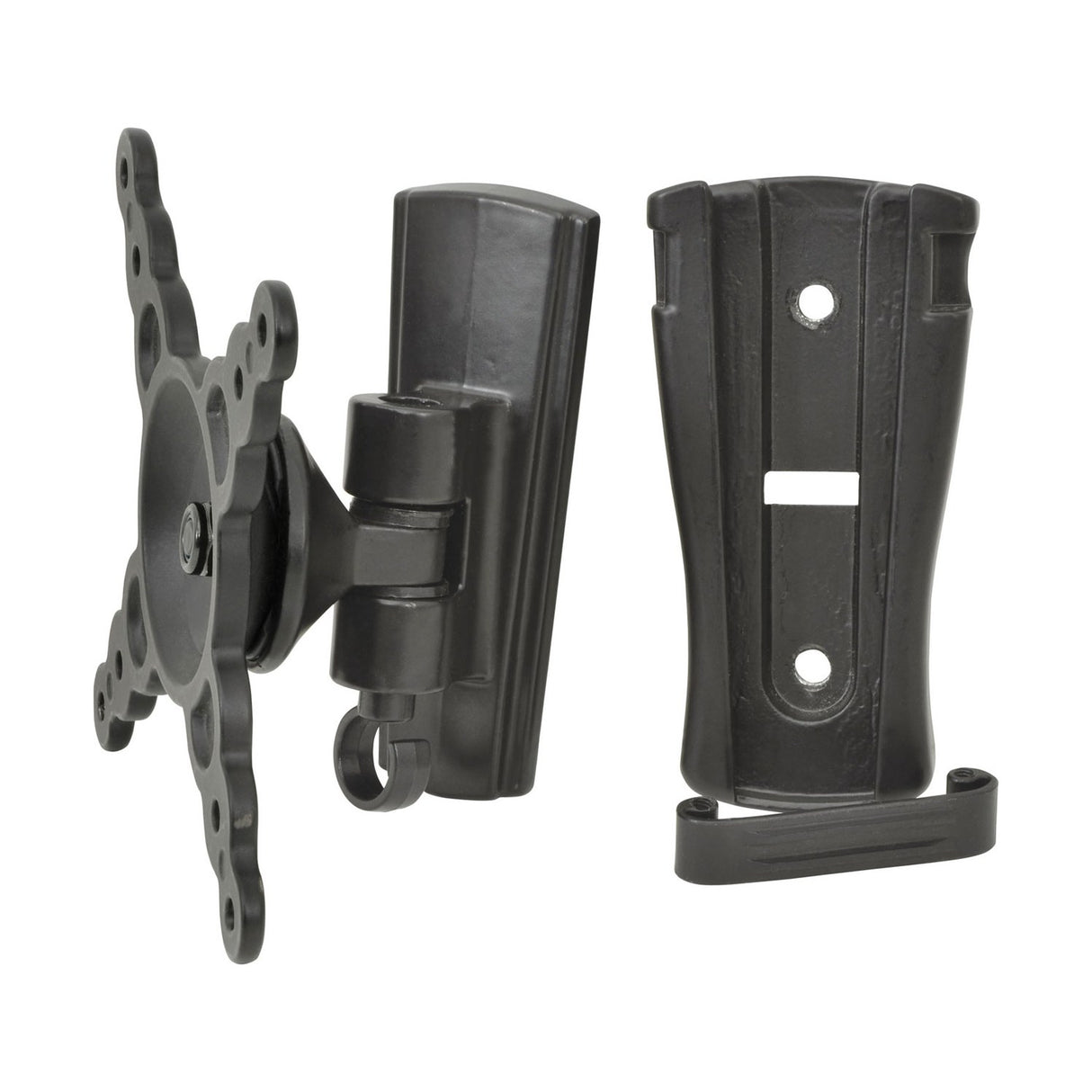

Fitting is straightforward. The bracket detaches from the wall plate, so you can mount the plate first and then attach the screen. An integrated spirit level helps you get everything straight, a cable retainer keeps leads tidy, and a built-in lock adds stability once the screen is in place. The full installation hardware is included, with a range of TV fixing screws (also called mounting screws) to match different screens. The wall plate measures 57 x 115mm (W x H) and the whole bracket weighs 640g.

Specification
Max. VESA 200x200mm (with supplied adaptor)
Distance from wall 78mm
Max. weight load 15.00KG
Wall plate dimensions 57mm x 115mm (W x H)
Weight 0.64KG
TV fixing screws provided 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm
Screen size 13" to 42"
Downloads

Product Manual

Frequently Asked

What size screens does the HQS201 fit?

It suits screens from 13 to 42 inches, covering many TVs and monitors.

What VESA patterns are supported?

VESA 75 and 100 hole patterns are covered as standard, and the included adaptors extend this up to VESA 200x200mm.

How much weight can it hold?

The maximum weight load is 15kg, so check your screen's weight before fitting.

How far does the screen sit from the wall?

The bracket sits 78mm from the wall. It also swivels up to 180° and tilts from -5° to 15°.

Are fixings included?

Yes. The installation hardware is supplied, including a range of M4, M5, M6 and M8 TV fixing screws, plus the VESA 200 adaptors.

Can I detach the screen from the wall plate?

Yes. The bracket detaches from the wall mount, which makes installation easier as you fit the plate first.
