AV:Link HQO201 Full Motion Single Arm TV Wall Bracket

£1999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

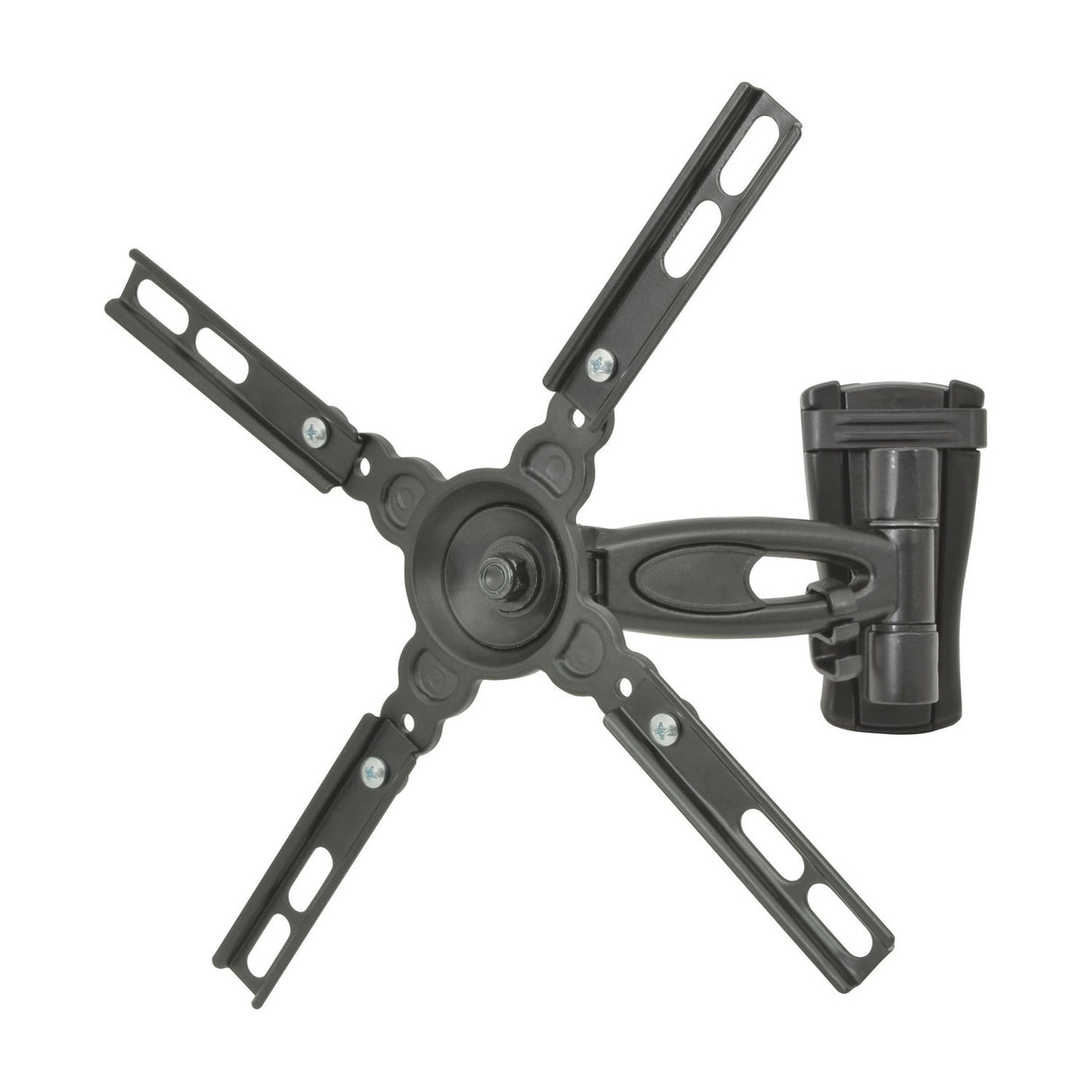

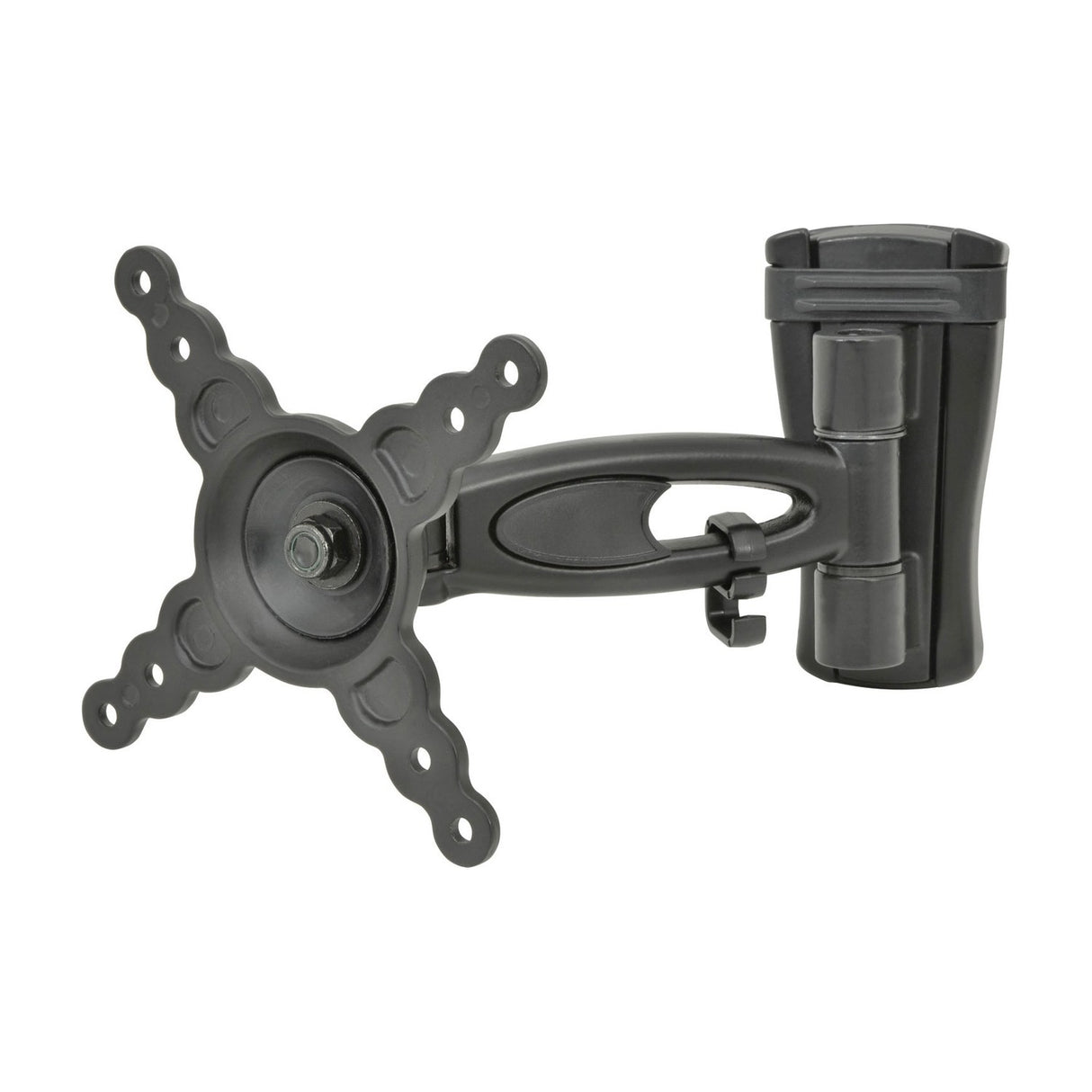

The AV:Link HQO201 is a single arm, full motion wall bracket (also called a wall mount) built for screens from 13" to 42". Made from steel, it holds up to 15kg and gives you plenty of room to move your TV or monitor into the right position. The arm swivels 180° from the wall connection point and a further 180° from the arm itself, so you can angle the screen towards a sofa, desk or across a room without shifting the whole set-up.

Adjustment is straightforward. A -5° to 15° tilt mechanism helps you cut glare from windows or overhead lights, and the bracket sits between 78mm and 190mm from the wall depending on how far out you extend the arm. An integrated spirit level makes it easier to get things straight during fitting, and a cable retainer keeps leads tidy behind the screen. There is also a built-in lock for added safety and stability once the TV is in place.

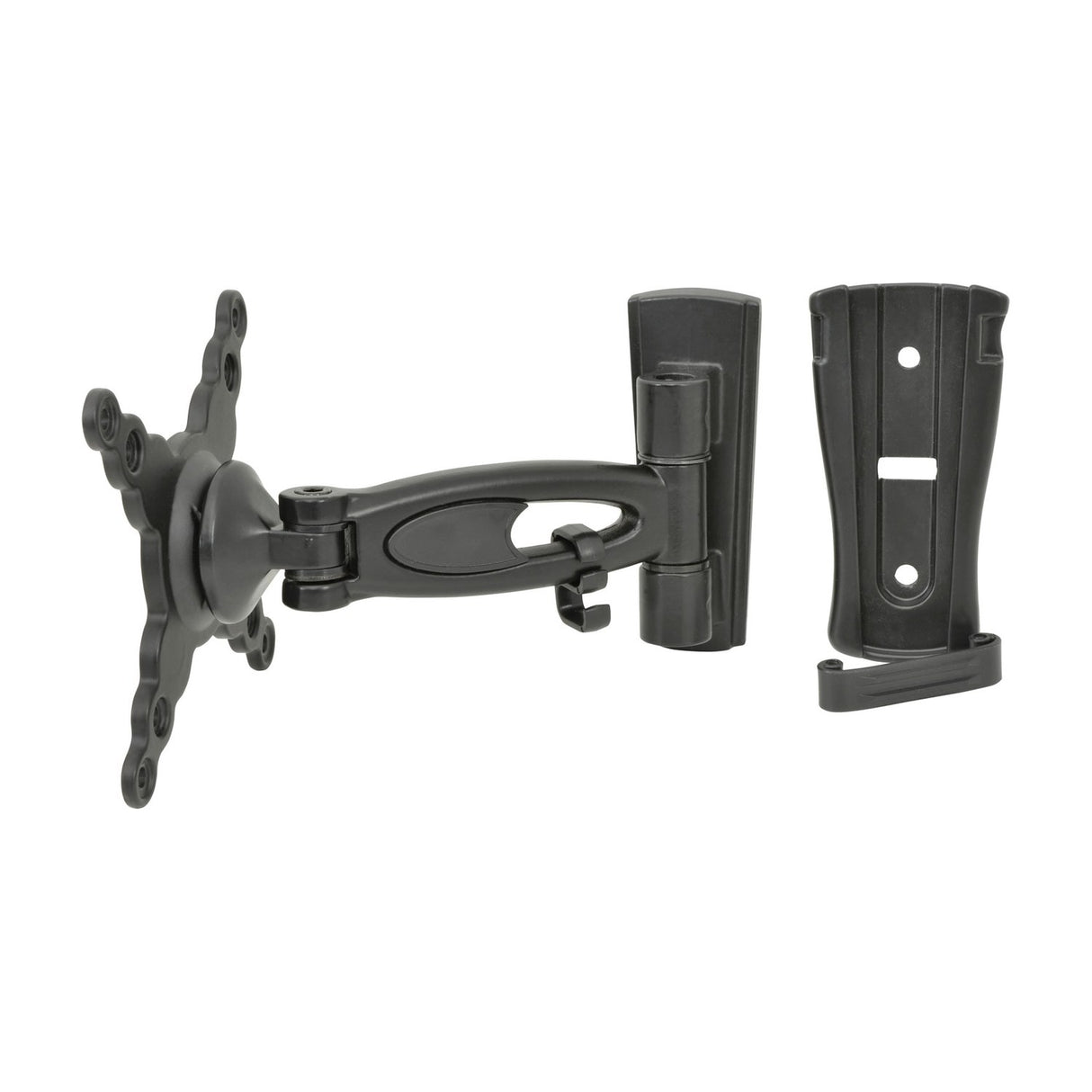

The HQO201 supports VESA 75 and 100 hole patterns as standard, with adaptors included to reach a VESA 200x200mm pattern. The wall plate measures 57 x 115mm (W x H) and the bracket detaches from the wall mount, so you can attach it to the back of your screen first and then hook it onto the wall. A full set of installation hardware is supplied, including TV fixing screws in M4, M5, M6 and M8 sizes to suit a range of screens.

Specification
Max. VESA 200x200mm (with adaptor)
Distance from wall 78 - 190mm
Max. weight load 15.00KG
Wall plate dimensions 57mm x 115mm (W x H)
Weight 0.80KG
TV fixing screws provided 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm
Screen size 13" to 42"
Downloads

Product Manual

Frequently Asked

What screen sizes does the HQO201 fit?

It suits screens from 13" to 42", covering most small and medium TVs and monitors.

How much weight can it hold?

The maximum weight load is 15kg, so check your screen's weight before fitting.

Which VESA patterns does it support?

It supports VESA 75 and 100 as standard, plus VESA 200x200mm using the included adaptors.

How far does the bracket sit from the wall?

The distance from the wall ranges from 78mm to 190mm depending on how far you extend the arm.

Does it tilt and swivel?

Yes. It tilts from -5° to 15° and swivels 180° from the wall point and 180° from the arm.

Are fixings included?

Yes. Installation hardware is supplied, with TV fixing screws in M4, M5, M6 and M8 sizes.
