AV:Link DAC7 Digital to Analogue Audio Converter

£1399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

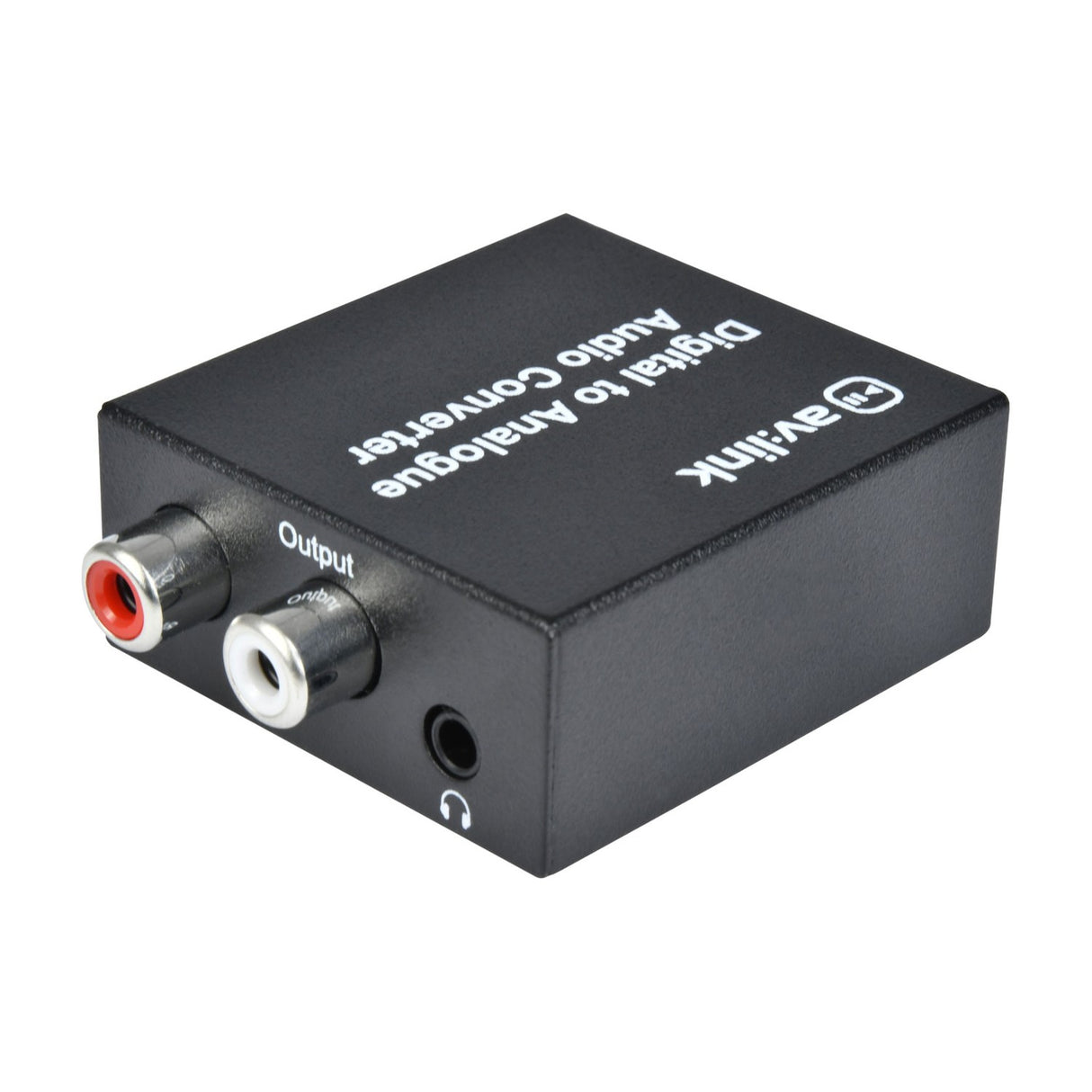

The AV:Link DAC7 takes a digital audio signal and turns it into an analogue one, so you can connect gear that only offers digital output to speakers or headphones that expect standard analogue inputs. It accepts either optical (Toslink) or coaxial digital signals and gives you both RCA (L/R) phono outputs and a 3.5mm headphone jack, sometimes called a headphone socket. That covers most of the common connection needs in one small box.

We designed it for situations where a games console, LED TV, projector or Blu-ray player has no RCA or 3.5mm output of its own. It handles a 24-bit S/PDIF incoming bit stream across the left and right channels, and supports sampling rates of 32, 44.1, 48 and 96 KHz. Setup is plug and play, with instant synchronisation and no delay, so you simply connect your source, connect your output and go.

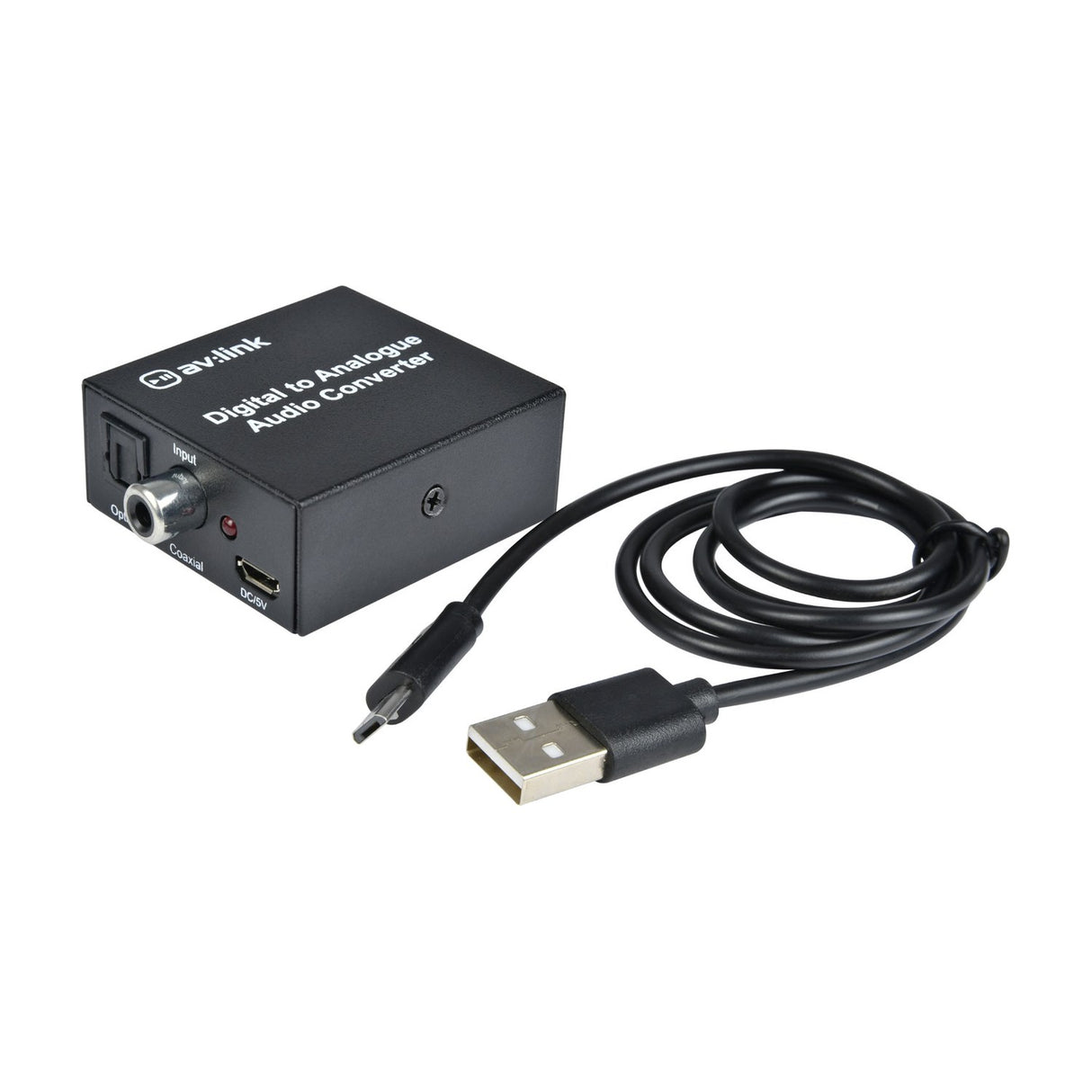

Power comes from USB, and a USB power lead is supplied in the box. The unit runs on DC 5V through a micro USB input, which means you can draw power from a nearby TV, wall adaptor or similar port rather than needing a separate mains supply. At 62 x 45 x 20mm and 65g it is small and light enough to sit tucked behind your equipment. It is a handy little device for adding analogue audio to kit that was never built to provide it, without any complicated configuration.

Specification
Dimensions 62mm x 45mm x 20mm
Weight 0.07KG
Power : input DC/5V (micro USB)

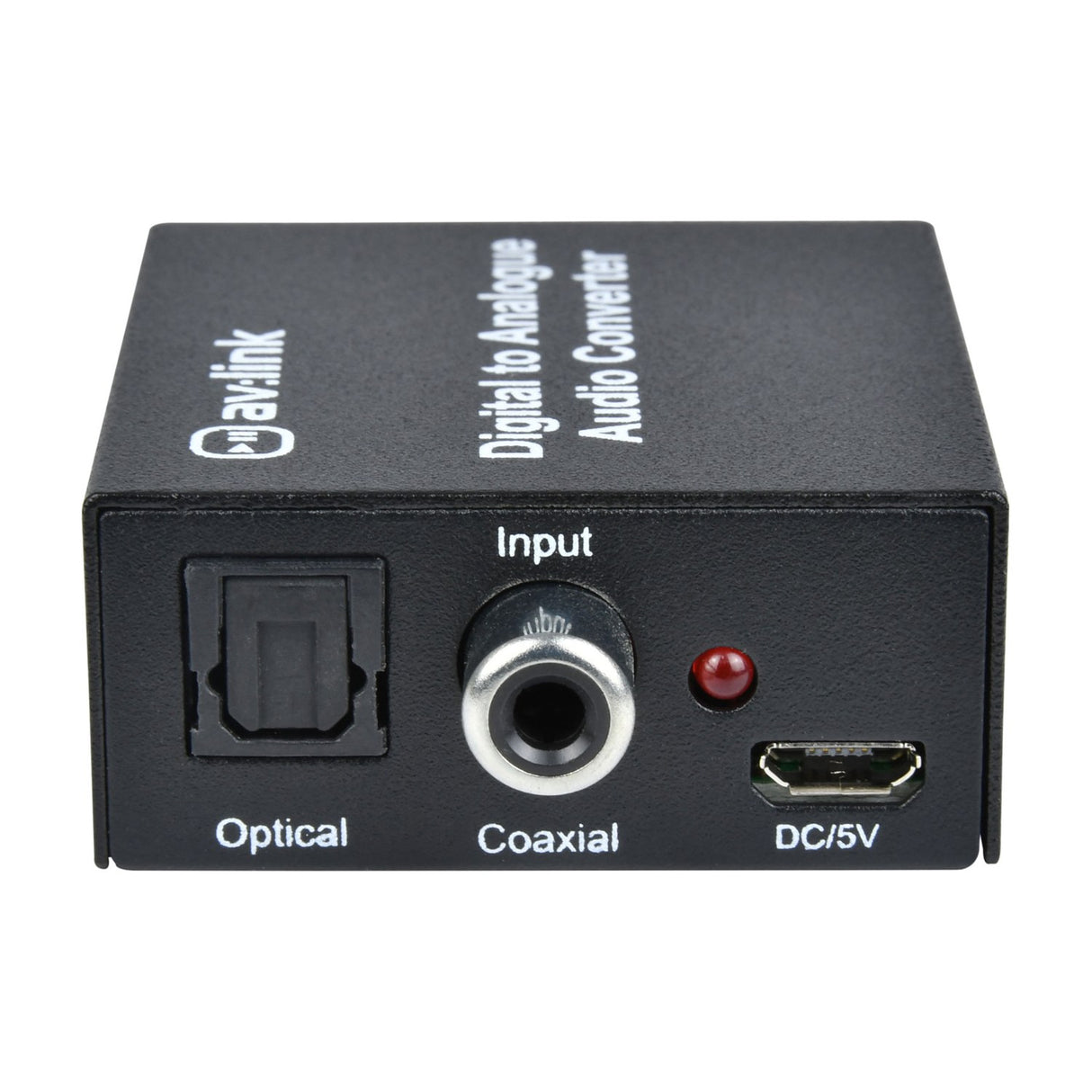

Input connections Optical (Toslink), Coaxial

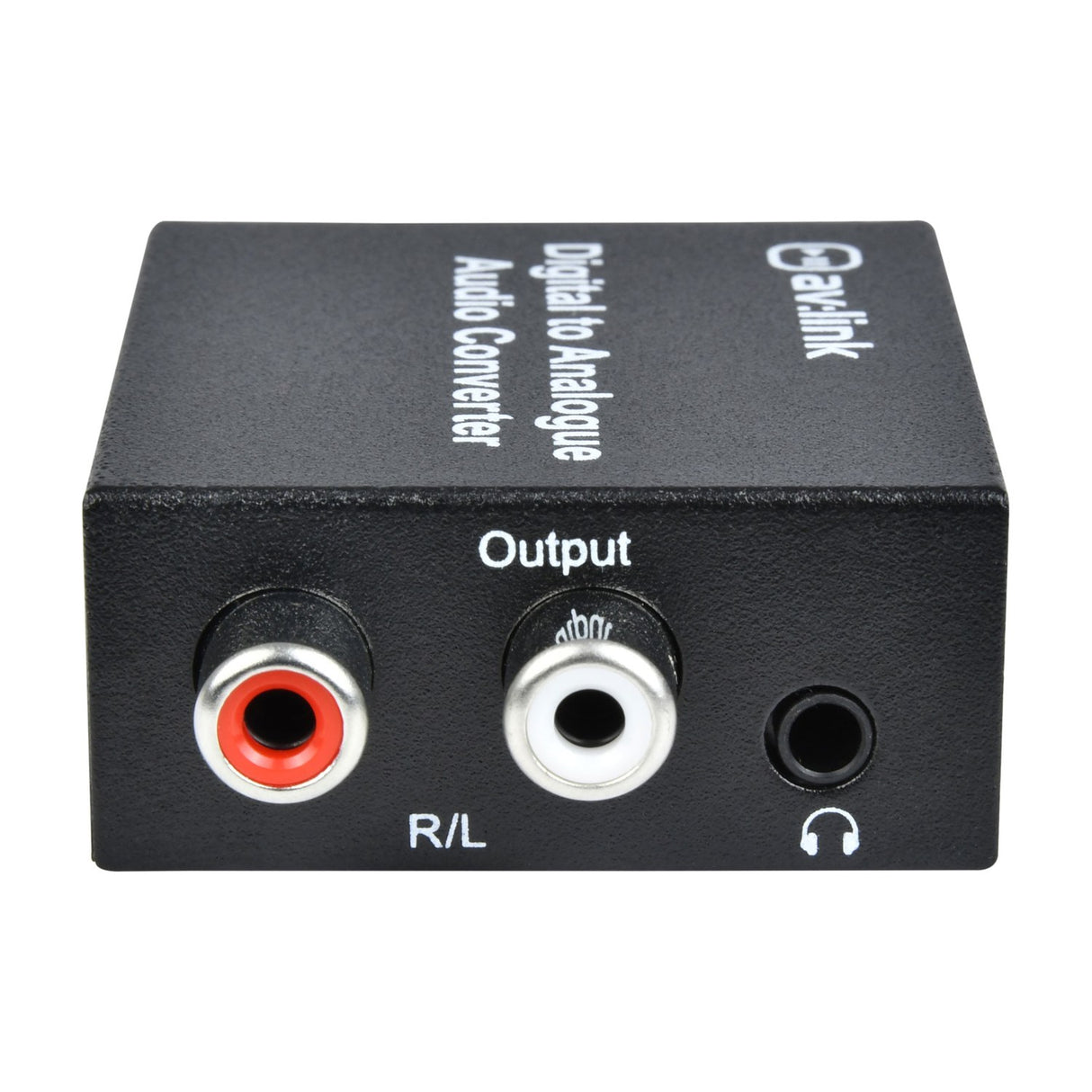

Output connections RCA (L/R), 3.5mm
Frequently Asked

What inputs and outputs does the DAC7 have?

It accepts optical (Toslink) or coaxial digital audio inputs, and gives you RCA (L/R) phono outputs plus a 3.5mm headphone jack.

How is the converter powered?

It runs on DC 5V through a micro USB input, and a USB power lead is supplied. You can power it from a TV USB port or a mains USB adaptor.

What sampling rates does it support?

It supports 32, 44.1, 48 and 96 KHz, with a 24-bit S/PDIF incoming bit stream on the left and right channels.

What is it useful for?

It suits games consoles, LED TVs, projectors and Blu-ray players that only have digital audio output and no RCA or 3.5mm socket.

Do I need to configure anything?

No. It is plug and play with instant synchronisation, so you connect your source and output and it works straight away.

How big is the unit?

It measures 62 x 45 x 20mm and weighs 65g, so it fits easily behind your equipment.
