AV:Link 4KS18 8K HDMI Splitter 1x8 with EDID

£10999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

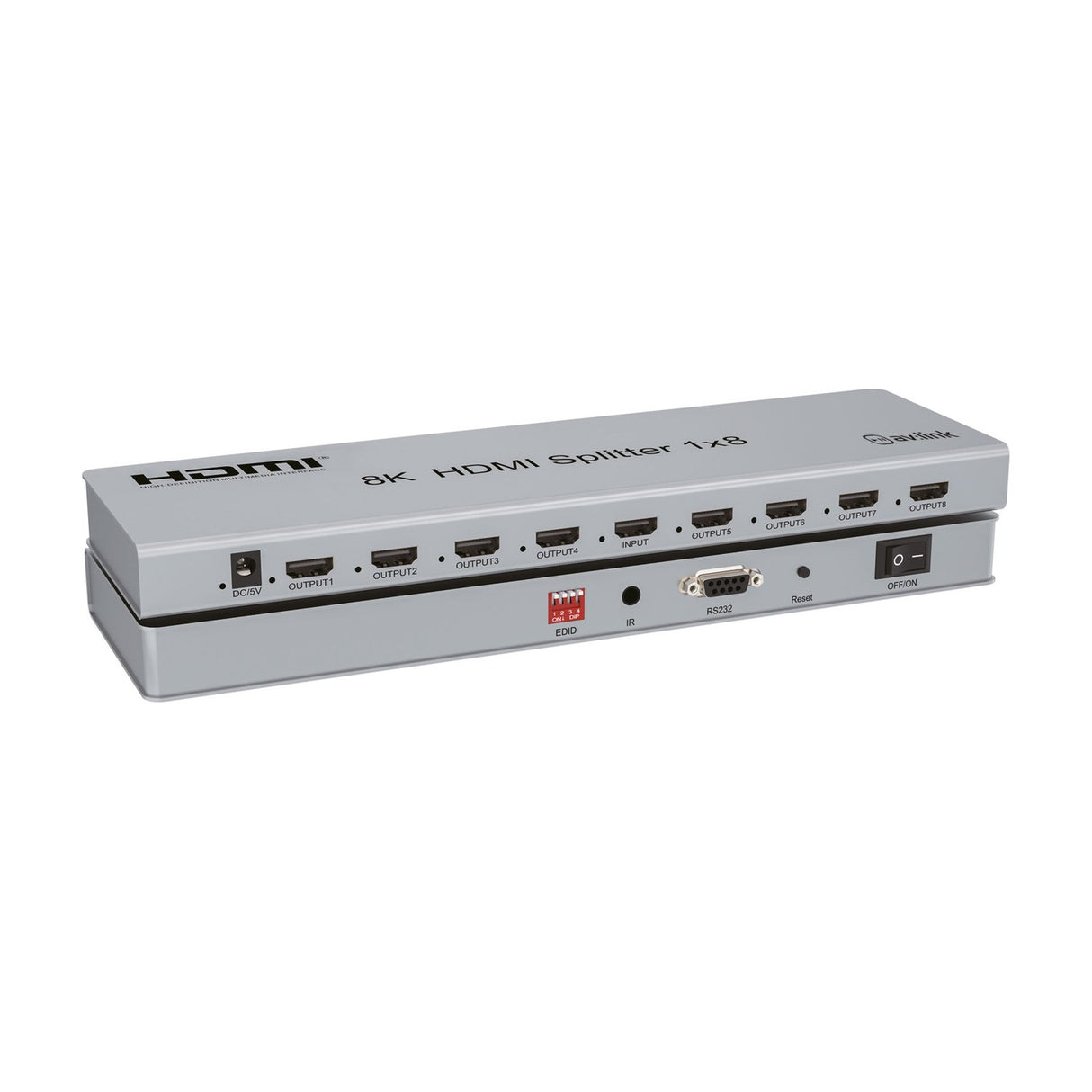

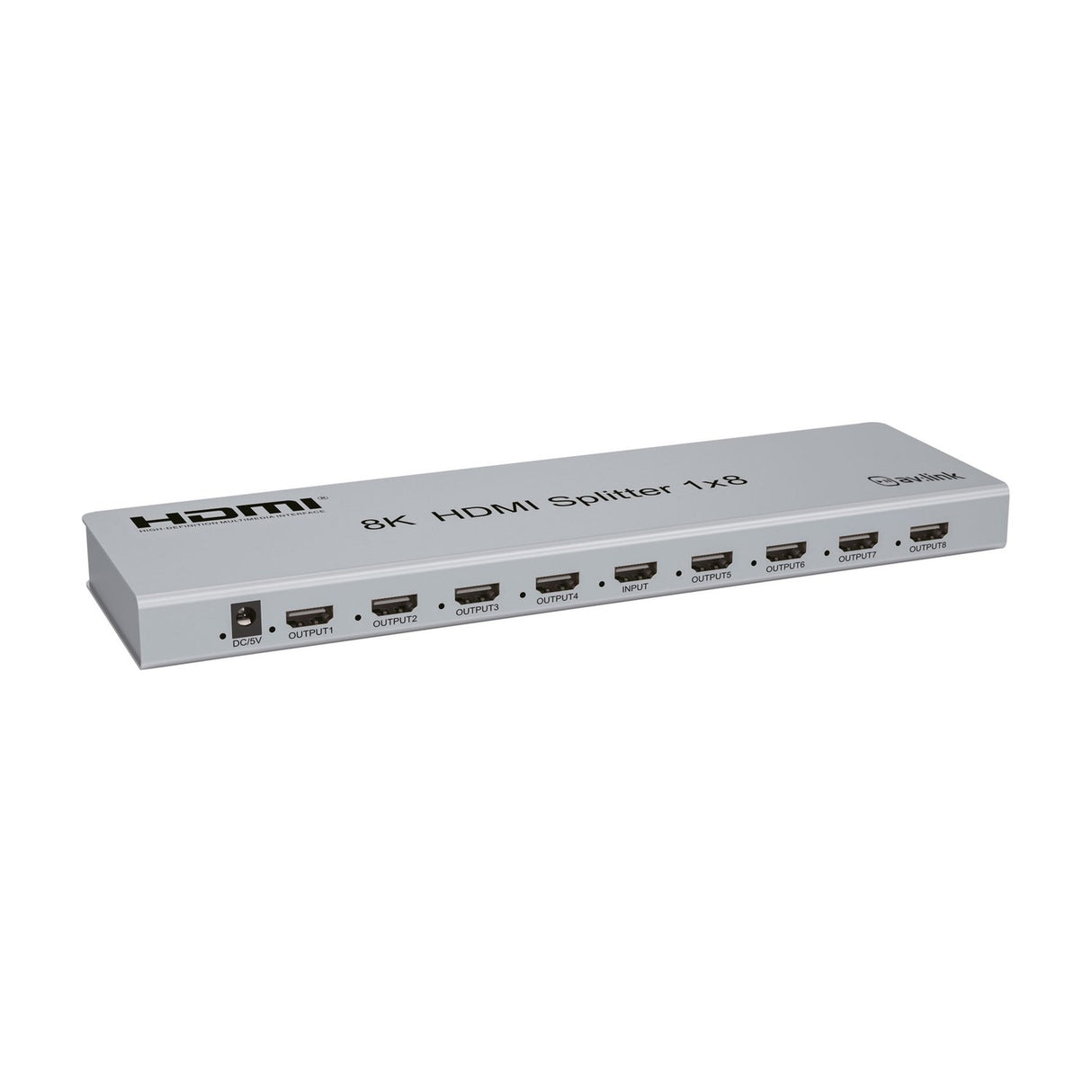

The AV:Link 4KS18 is an 8K HDMI splitter that sends a single HDMI source to eight displays at once. It supports resolutions up to 7680 x 4320 at 60Hz, so it keeps pace with the latest 8K screens while still working with lower resolution sets. Connection and installation are straightforward, with one HDMI input feeding all eight outputs simultaneously.

An 8-mode EDID switch lets you set the video and audio formats you need, which helps when your displays have different capabilities and you want a consistent output across the wall. On the audio side it handles DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD formats. Deep colour is supported at 8, 10 and 12bit, and the maximum data rate is 40Gbps. Transmission runs up to 10m at 8K 60Hz over each HDMI (also written HDMI cable) run.

The unit sits in a tough metal chassis with a satin silver finish, and the slimline shape keeps it tidy in a rack or on a shelf. It runs across a wide operating temperature range of -15°C to +55°C, which suits it to varied environments. An RS232 serial connection is included for online firmware updates. It works well for gaming and home entertainment, and it is equally at home in hospitality and other commercial venues that need multiple display feeds from one source.

Specification
Video resolution Up to 7680 x 4320 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
Transmission distance 10m max 8K @ 60Hz
Operating temperature range -15°C to +55°C
Max. baud rate 40Gbps
Input connections HDMI, RS232 Serial (online firmware updates only)
Downloads

Product Manual

Frequently Asked

How many displays can I connect?

The 4KS18 is a 1x8 splitter, so it feeds one HDMI source to eight displays at the same time.

What is the highest resolution it supports?

It supports HDMI resolutions up to 7680 x 4320 at 60Hz, so it is ready for 8K displays as well as 4K and lower.

What does the EDID switch do?

The 8-mode EDID switch lets you select the required video and audio formats, which helps you get a consistent output when your displays differ.

Which audio formats are supported?

It handles DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD.

How far can I run the HDMI cables?

Each output supports transmission up to 10m at 8K 60Hz.

What is the RS232 connection for?

The RS232 serial connection is used for online firmware updates only.
