AV:Link 4KS14 8K HDMI Splitter with EDID, 1x4

£6799
RRP £6900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

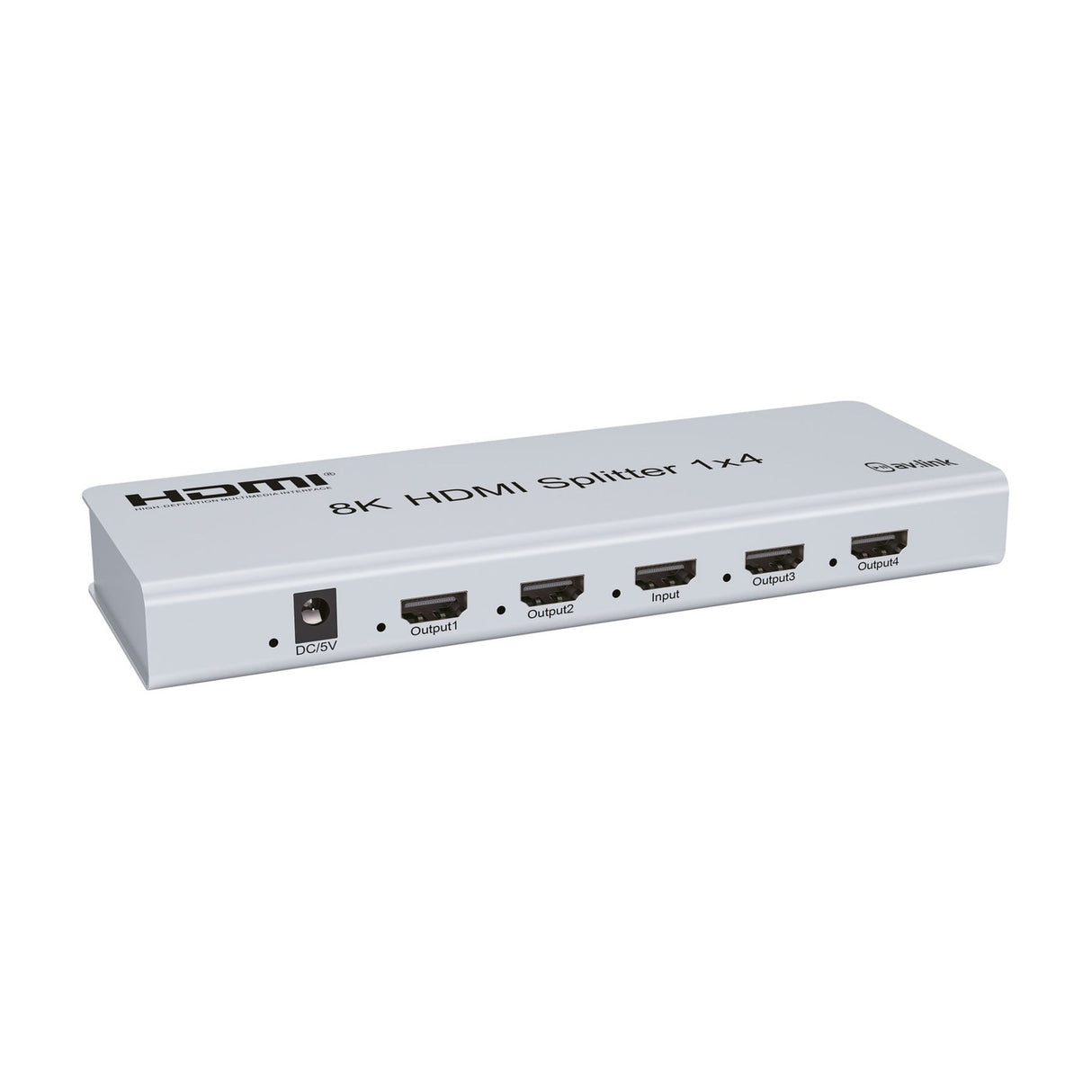

The AV:Link 4KS14 is a 1x4 HDMI splitter that sends a single HDMI source to up to four displays at the same time. It supports resolutions up to 7680 x 4320 at 60Hz, so it keeps pace with the latest 8K screens as well as 4K and lower resolutions. Connection is straightforward: plug in your source, connect your displays and you are ready to go. The slimline metal chassis has a satin silver finish that sits neatly in a rack, on a shelf or behind a display.

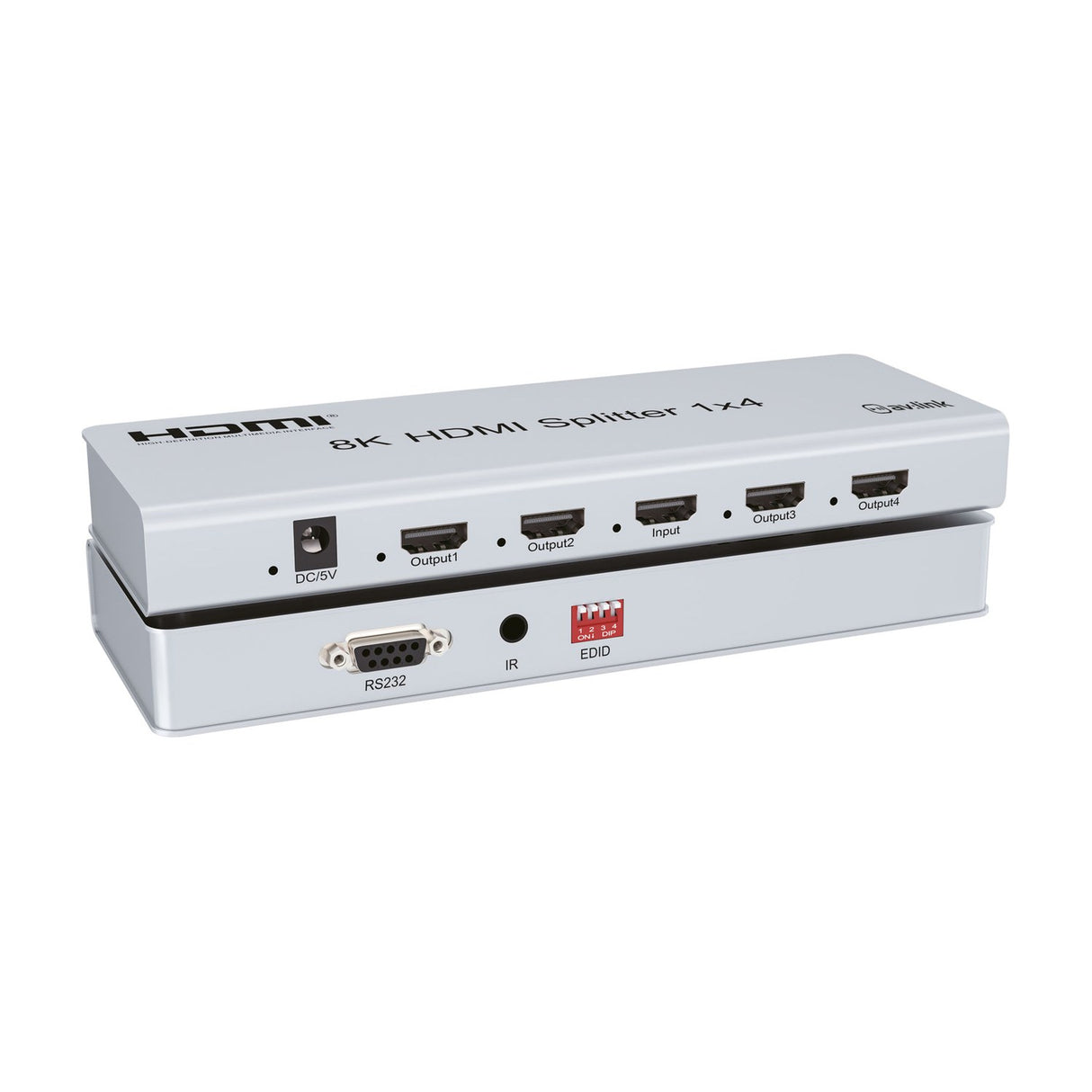

An 8-mode EDID switch lets you set the video and audio output precisely, so each connected display shows the right picture and passes the correct sound. Deep colour is supported at 8, 10 and 12 bit, and the unit handles DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD audio formats. Maximum bandwidth (baud rate) is 40Gbps, with a transmission distance of up to 10m at 8K 60Hz. An RS232 serial connection is included for online firmware updates.

This splitter suits gaming and home entertainment setups as well as commercial and hospitality venues that need to feed several screens from one source. The operating temperature range runs from -15°C to +55°C, which covers most indoor installations. Because the EDID handling is built in, you can match the output to the capability of your displays rather than defaulting to the lowest common setting, which helps you get the most from your hardware. It is a compact, practical way to share one HDMI feed across a wall of displays or a small AV system.

Specification
Video resolution Up to 7680 x 4320 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
Transmission distance 10m max 8K @ 60Hz
Operating temperature range -15°C to +55°C
Max. baud rate 40Gbps
Input connections HDMI, RS232 Serial (online firmware updates only)
Downloads

Product Manual

Frequently Asked

How many displays can I connect?

The 4KS14 is a 1x4 splitter, so it sends one HDMI source to up to four displays at once.

What is the maximum resolution?

It supports HDMI resolutions up to 7680 x 4320 at 60Hz, which covers 8K, 4K and lower.

What does the EDID switch do?

The 8-mode EDID switch lets you set the exact video and audio output so each display receives the correct picture and sound.

How far can the HDMI signal travel?

Transmission distance is up to 10m at 8K 60Hz. Shorter runs are recommended for reliable performance at the highest resolutions.

Which audio formats are supported?

It passes DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD audio.

What is the RS232 connection for?

The RS232 serial port is used for online firmware updates only, not for signal routing.
