AV:Link 4KS12 8K HDMI Splitter 1x2 with EDID

£5999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

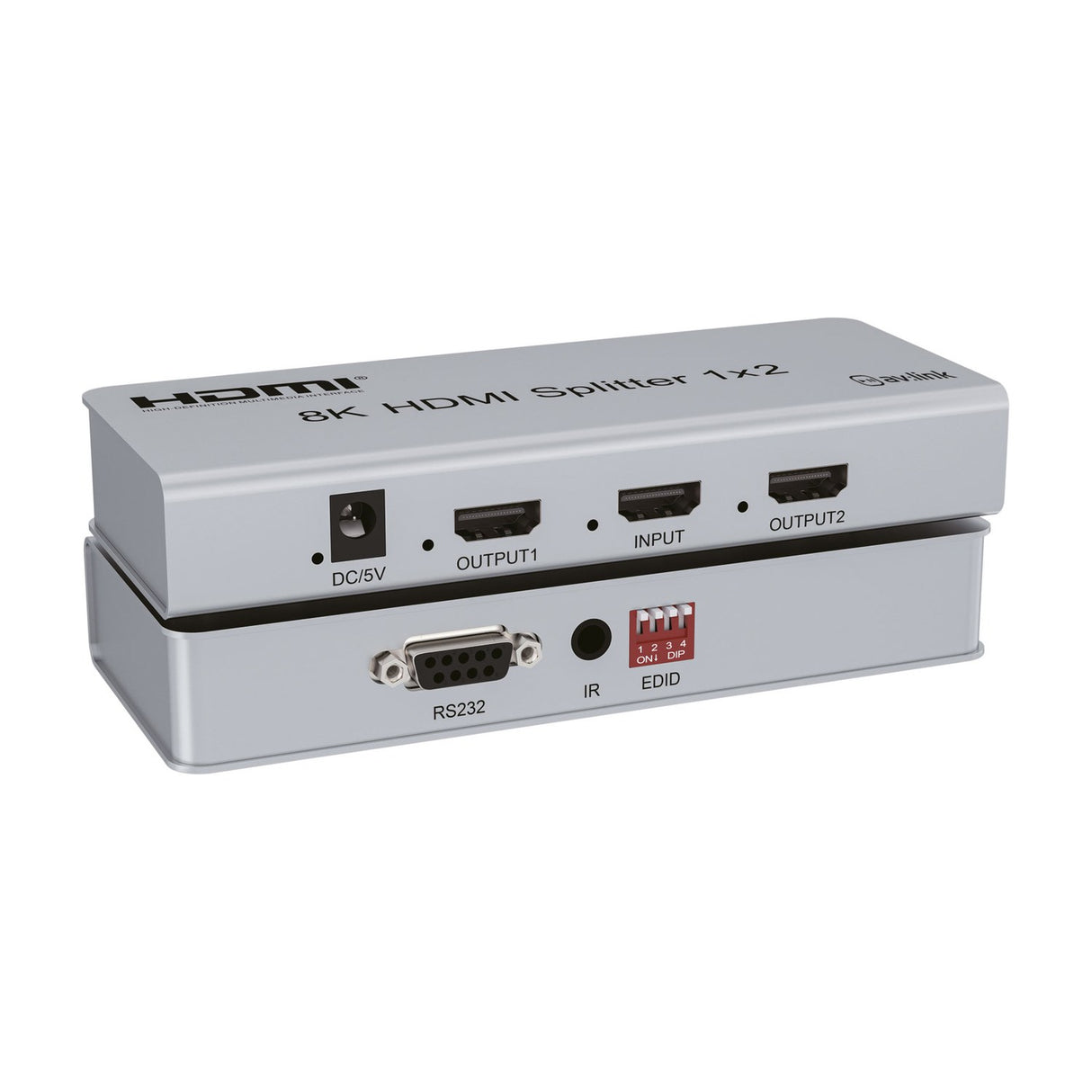

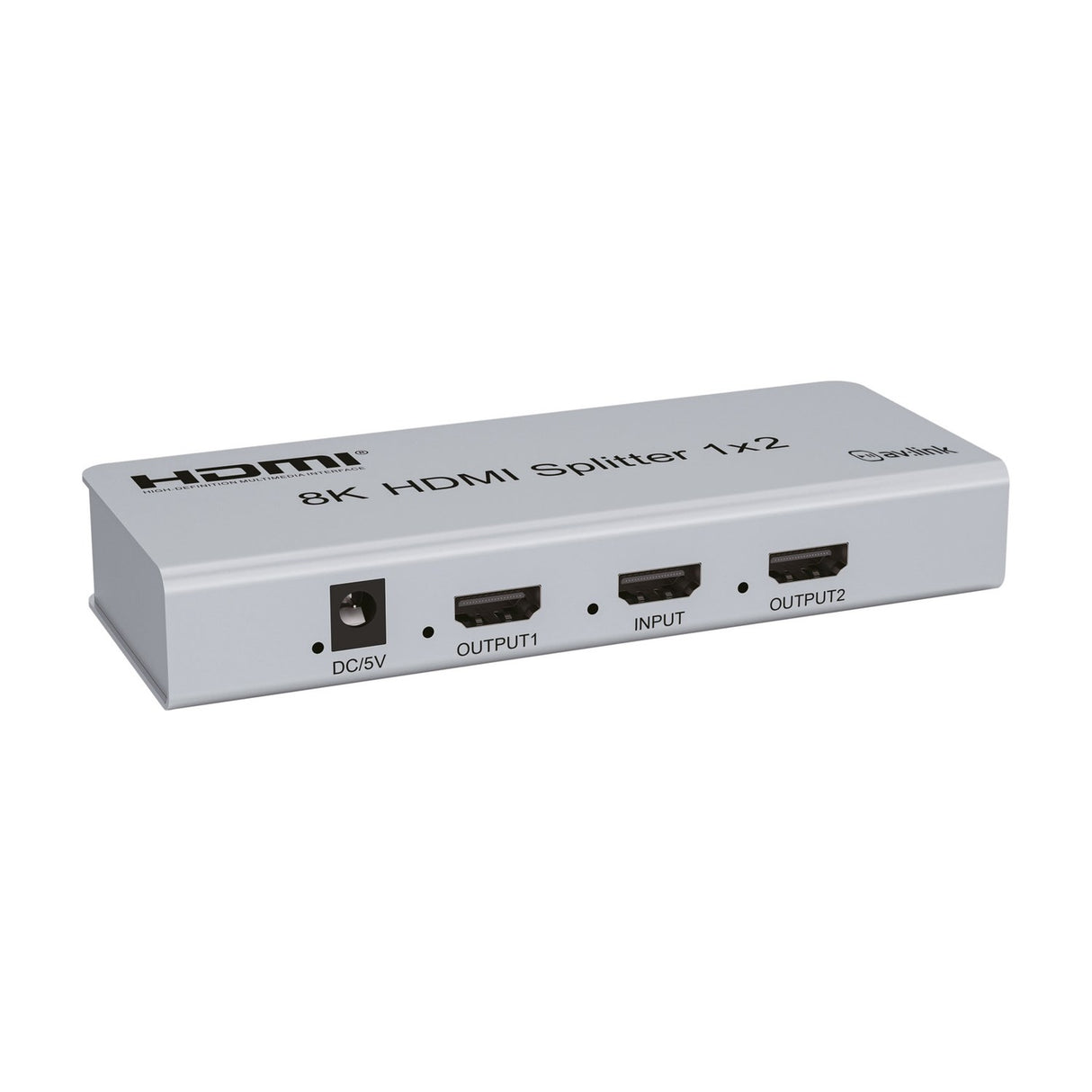

The AV:Link 4KS12 is an 8K HDMI splitter that sends a single HDMI source to two displays at the same time. It supports resolutions up to 7680 x 4320 at 60Hz, so it keeps pace with the latest 8K screens while also handling lower resolutions. Setup is straightforward: connect your source to the input and run HDMI leads out to each display.

An 8-mode EDID switch lets you set the video and audio output precisely, which helps when your two displays have different capabilities. On the audio side it passes DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD formats, and it handles 8, 10 and 12-bit deep colour. The maximum data rate is 40Gbps, and transmission runs to 10m at 8K 60Hz. There is also an RS232 serial connection, used for online firmware updates only.

The splitter sits in a tough metal chassis with a satin silver finish, and its slimline shape fits neatly into an AV setup. It works across an operating temperature range of -15°C to +55°C. This makes it a practical choice for gaming and home entertainment, as well as hospitality and other commercial venues that need to feed several displays from one HDMI source. Note that a splitter copies one source to multiple screens, unlike an HDMI switch (switcher) that selects between several sources for one screen.

Specification
Video resolution Up to 7680 x 4320 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
Transmission distance 10m max 8K @ 60Hz
Operating temperature range -15°C to +55°C
Max. baud rate 40Gbps
Input connections HDMI, RS232 Serial (online firmware updates only)
Downloads

Product Manual

Frequently Asked

What resolution does the 4KS12 support?

It supports HDMI resolutions up to 7680 x 4320 at 60Hz, so it works with 8K displays as well as lower-resolution screens.

How many displays can I connect?

This is a 1x2 splitter, so one HDMI source feeds two displays at the same time.

What does the EDID switch do?

The 8-mode EDID switch lets you choose the exact video and audio output, which is useful when your two displays have different capabilities.

Which audio formats are supported?

It passes DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD.

How far can the signal travel?

Transmission runs to a maximum of 10m at 8K 60Hz, with a peak data rate of 40Gbps.

What is the RS232 connection for?

The RS232 serial connection is used for online firmware updates only.
