Description

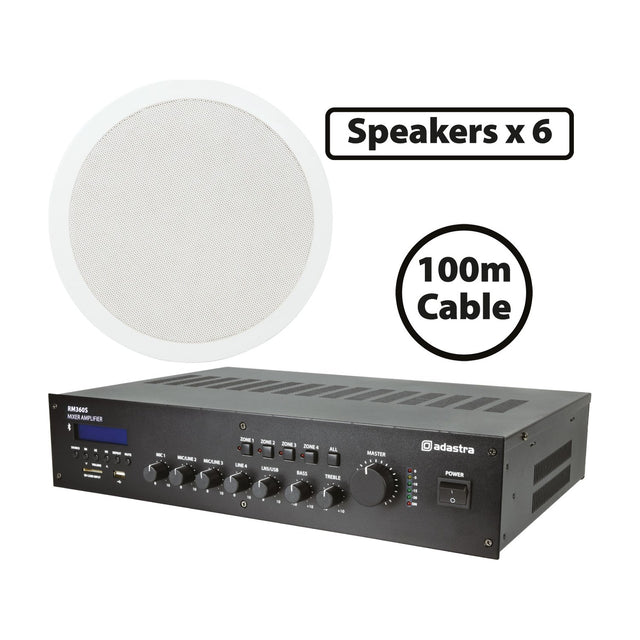

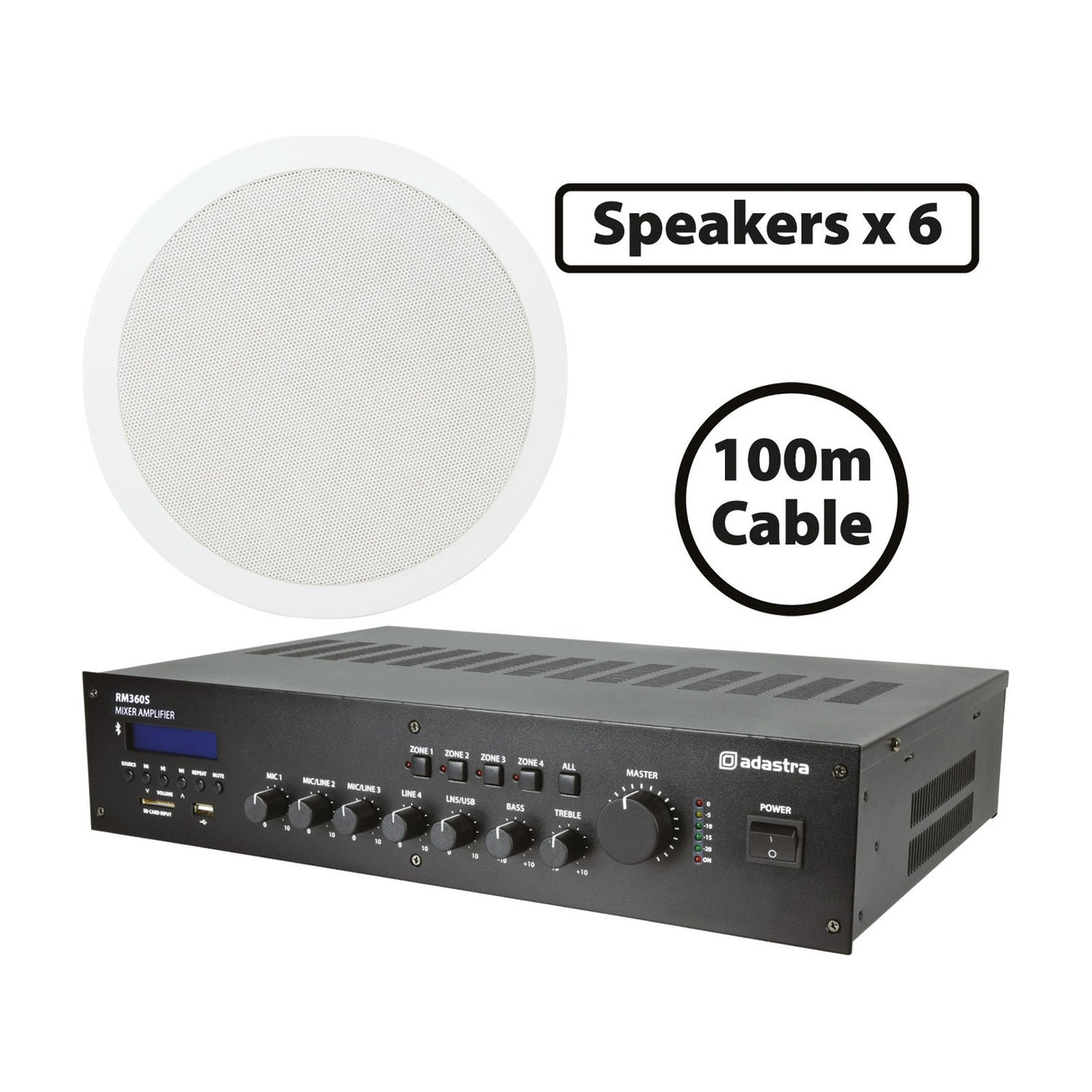

This commercial 100V ceiling speaker package is a complete kit for music, announcements and voice alerts in busy environments and medium to large indoor public areas. It pairs six high power 8" flush mount ceiling speakers with a 360W RM-series mixer-amp, giving you everything needed to cover a room in one order. The amplifier, cable and speakers are packed separately to keep each part protected in transit.
The RM-series mixer-amp has a built-in Bluetooth receiver, a USB and SD mp3 player and an FM tuner, so you can play music or spoken content from several sources. It also offers phantom power for an optional paging mic (952.352UK or 952.353UK), which is handy for live announcements. The unit is a 5-input 100V design, and the package includes 100m of speaker cable to get you started. Use a terminal block to extend the cable runs, and keep the plus and minus wires apart so you never short them together.
Choose higher power for larger spaces or louder settings, and add extra speaker packages if you need more coverage. As a guide, a 3m ceiling height suits roughly 5m spacing between speakers, so four speakers could serve a 10 x 10m room. For higher ceilings you can widen the spacing, and the 8" speakers carry sound further to listeners at a distance. Tap down some perimeter speakers so the combined speaker Watts stays under 90% of the amplifier's maximum output. Using lower tappings on more speakers lets you add further speakers to the line while keeping within that limit.
Specification
| Length |
100m |
| Voltage |
100 |
| Power |
360 |
| Type |
PA System |
Downloads
Product Manual
Frequently Asked
How many speakers and what power does this package include?
The package includes six high power 8" ceiling speakers and a 360W RM-series 100V mixer-amp, supplied with 100m of speaker cable.
What audio sources can I play through the amplifier?
The mixer-amp has a built-in Bluetooth receiver, a USB and SD mp3 player and an FM tuner, plus five inputs for other sources.
Can I connect a paging microphone?
Yes. The amplifier provides phantom power for an optional paging mic, such as models 952.352UK or 952.353UK, for live announcements.
How far apart should the speakers be spaced?
As a guide, a 3m ceiling height suits around 5m spacing, so four speakers could cover a 10 x 10m room. Higher ceilings allow wider spacing.
Can I add more speakers to the system?
Yes. You can extend with add-on packages, keeping the combined speaker Watts under 90% of the amplifier's maximum output by tapping down some speakers.
How do I extend the supplied speaker cable?
Use a terminal block to join and extend the cable runs. Keep the plus and minus wires apart so they are never shorted together.
