Description

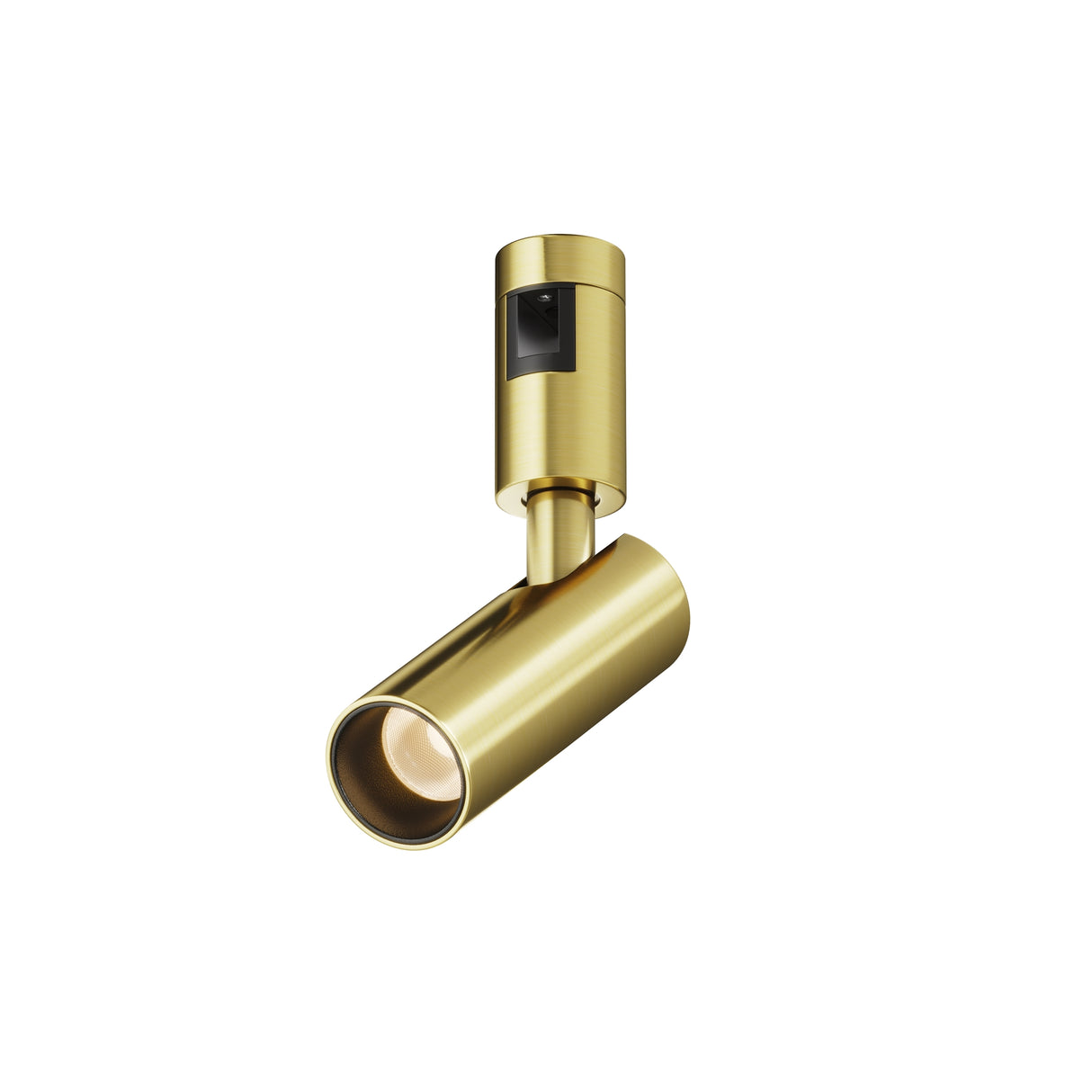

The Focus Led track spotlight is a cylindrical aluminium track head finished in brass, housing a fixed 5W LED module with a 30° beam angle and 2700K colour temperature. The spotlight runs on 24V DC track systems and delivers 150 lumens of directed accent light, suitable for highlighting artwork, retail displays, or architectural features in residential and commercial interiors.
Designed for multi-head track installations where individual spotlights can be positioned and aimed independently, this unit rotates 350° on its track mount and tilts through approximately 90° to direct light onto walls, objects, or floor areas. The 30° beam creates a defined pool of light rather than wide wash, making it effective for task lighting over worktops, picture lighting in galleries, or product highlighting in retail. The brass finish provides a warm metallic accent that works within contemporary, mid-century and transitional interiors.
The 5W LED is fixed and integrated into the aluminium housing, which acts as a passive heat sink. The 90 CRI (colour rendering index) rating means the light reproduces colours accurately compared to natural daylight, which matters when lighting paintings, textiles, or any application where colour fidelity is important. The spotlight carries an IP20 rating, limiting it to dry indoor environments only. The unit is not dimmable and operates at a fixed output once powered.
Installation requires a compatible 24V DC track system - this spotlight will not operate on standard 230V mains tracks or adaptors. The brass finish is brushed rather than polished, giving a satin appearance that minimises reflections under room lighting. At 5W per head, a typical 50W track driver can power up to ten of these spotlights on a single circuit.
Specification
| Wattage |
5W |
| Lumens |
150 lm |
| Colour Temperature |
2700K |
| IP Rating |
IP20 |
| Beam Angle |
30° |
| CRI |
90 |
| Voltage |
DC 24V |
| Dimmable |
No |
| Material |
Aluminium |
| Finish |
Brass |
| Energy Class |
G |
Downloads
Product datasheet
Frequently Asked
What track system does this work with?
This spotlight requires a 24V DC track system. It will not operate on standard 230V mains track rails or adaptors. Check your existing track voltage before ordering - if you have mains-voltage track lighting already installed, this unit is not compatible.
Is the LED replaceable?
No. The 5W LED module is integrated into the aluminium housing and cannot be replaced separately. The rated LED lifespan is typically 25,000-30,000 hours for this type of unit.
Can it be dimmed?
No. The spotlight operates at a fixed 5W output and is not compatible with dimmer systems. If dimming is required, consider alternative track heads with dimming capability.
What's the beam angle suitable for?
The 30° beam creates a defined pool of light rather than wide coverage. This works well for accent lighting on artwork, retail product displays, or task lighting over specific work areas. For general ambient lighting across a room, a wider beam angle (60° or more) would be more appropriate.
