Description

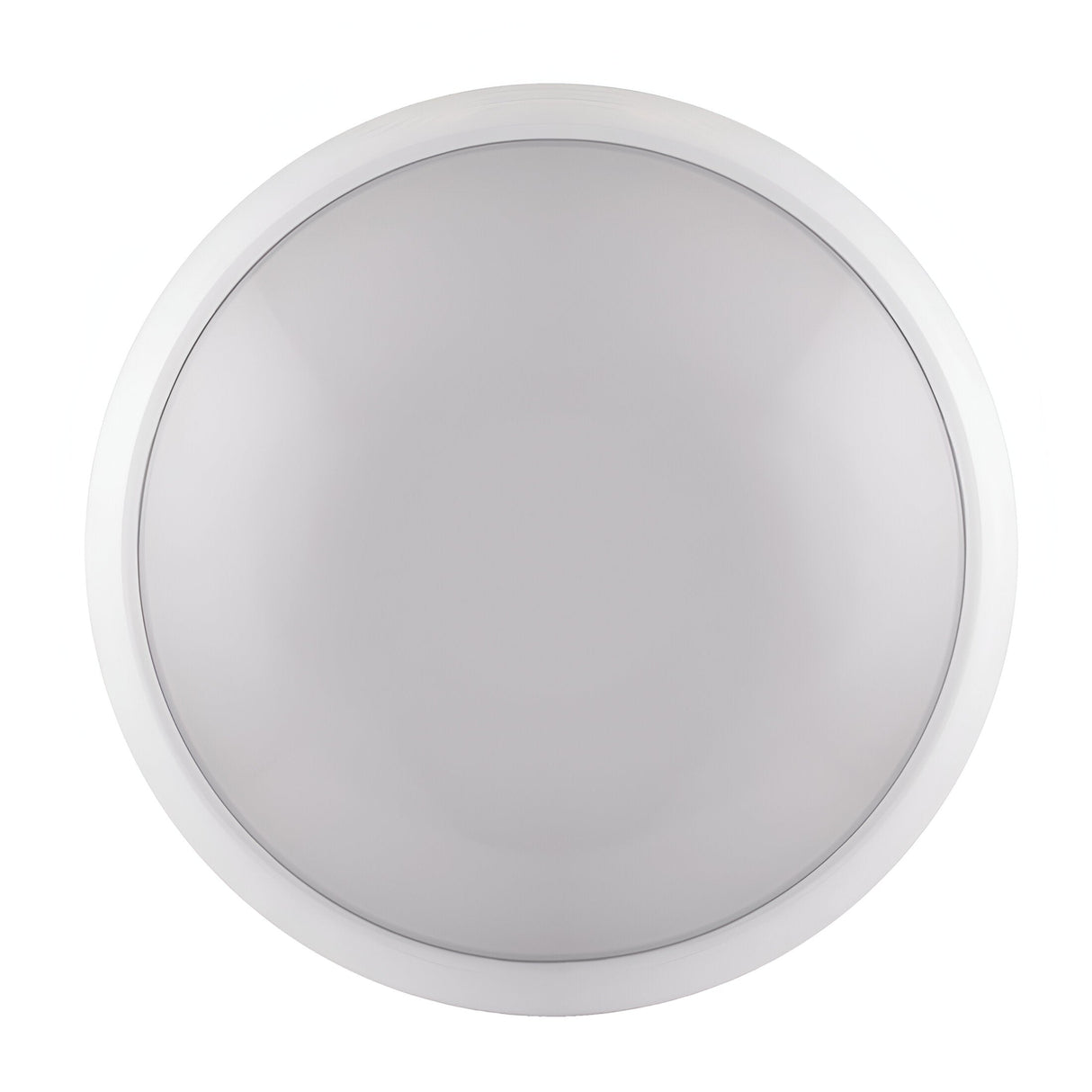

The ESP Duceri is a 14W IP65-rated emergency bulkhead housing 84 SMD 2835 LEDs inside a white polycarbonate circular housing measuring 330mm diameter and 110mm deep. In maintained mode, the fitting operates as a standard ceiling or wall light on mains power (1207 lumens at 5500K), and automatically switches to emergency mode during mains failure, delivering 285 lumens for 3 hours from the internal 6V 1800mAh Ni-Cd battery.
Designed for commercial, industrial and residential installations requiring compliant emergency lighting, the Duceri suits corridors, stairwells, car parks, storage areas and external covered zones where both functional lighting and emergency backup are needed in a single fitting. The IP65 rating protects against dust ingress and water jets, making the bulkhead suitable for outdoor canopies, warehouses, bathrooms and shower rooms. Wall or ceiling mounting uses the integral back plate and two fixing points.
The polycarbonate housing resists impact damage and withstands temperature variation better than acrylic alternatives. A green LED indicator on the front confirms that the battery is charging and the emergency function is operational. The charge and discharge protection circuitry prevents battery degradation from over-discharge, extending the service life of the internal battery pack. The 5500K colour temperature gives a cool daylight-white light output that maintains visibility in functional spaces. The fitting meets BS EN 60598-2-22 for emergency lighting luminaires.
Specification
| Product Net Weight (KG) |
1.5 |
| Product Gross Weight (KG) |
1.72 |
| Outer Gross Weight (KG) |
8.6 |
| Product Length (mm) |
328 |
| Product Width (mm) |
105 |
| Product Height (mm) |
328 |
| Outer Length (mm) |
340 |
| Outer Width (mm) |
545 |
| Outer Height (mm) |
345 |
Downloads
Product Specification Sheet
Product Manual
Frequently Asked
What is maintained mode?
Maintained mode means the bulkhead operates as a standard light fitting on mains power, and switches to battery backup during a power cut. This differs from non-maintained mode, where the light only activates during mains failure. The Duceri supports both modes via internal switch configuration.
How long does the emergency backup last?
The internal 6V 1800mAh Ni-Cd battery provides 3 hours of emergency lighting at 285 lumens once mains power is lost. The green LED indicator confirms the battery is charging when mains power is present.
Can this be used outdoors?
The IP65 rating protects against dust and water jets, making the Duceri suitable for outdoor covered areas such as canopies, external corridors and loading bays. It is not weatherproof for fully exposed positions without shelter from direct rain.
Is the battery replaceable?
Yes. The 6V 1800mAh Ni-Cd battery pack can be replaced by a qualified electrician once it reaches end of service life. Replacement intervals depend on usage frequency and discharge cycles.
