19 Inch 1U CAT6 24-Port Patch Panel - Black

£4499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

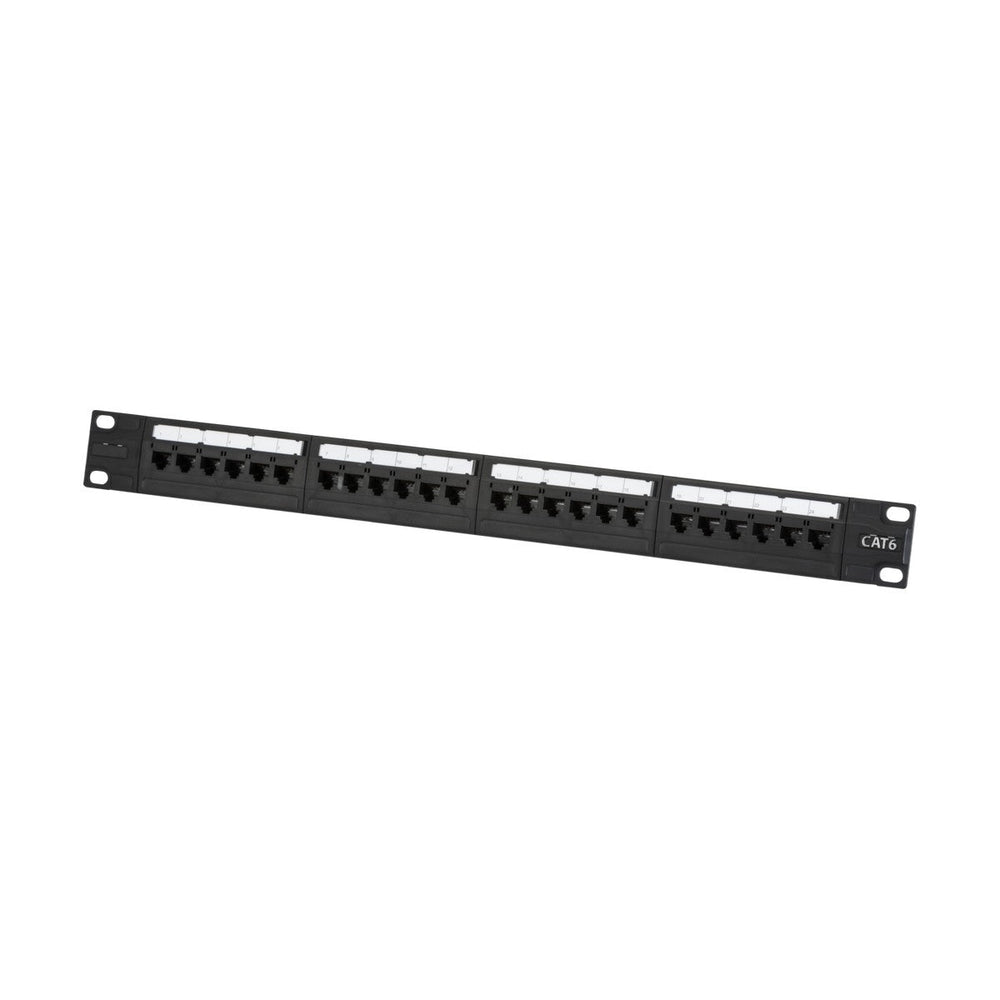

The Knightsbridge 19-inch 1U CAT6 patch panel provides 24 RJ45 ports in a pressed steel frame designed for standard 19-inch server racks and network cabinets. Each port uses phosphor bronze contacts with 50-micron gold plating, and the panel supports both 110 and Universal IDC termination methods for field termination of CAT6 cable runs.

Designed for structured cabling in offices, data centres and commercial installations, the panel fits a single rack unit (44mm) and organises incoming CAT6 cable runs into a front-facing row of 24 numbered RJ45 ports. The panel is compliant with ANSI/TIA/EIA-568-C.2 and ISO/IEC 11801 standards, supports Gigabit Ethernet data transfer, and is rated for Power over Ethernet Plus (PoE+) delivery to connected devices such as IP cameras, VoIP phones and wireless access points.

The pressed steel construction provides rigidity when mounted in a rack, and the polycarbonate port modules clip into the front face without requiring panel removal for termination or troubleshooting. The insulation resistance exceeds 500MΩ, the dielectric withstand voltage is rated at 1000V DC, and each port is rated for 750 insertion cycles. The contact retention force of 30 lbs ensures patch leads remain securely connected under normal rack vibration and cable movement.

Specification
Height 44 mm
Width 483 mm
Depth 32 mm
Construction Pressed steel
Construction 2 & polycarbonate
Finish Black
IP Rating IP20
Warranty 1
Downloads

Product Specification Sheet

Frequently Asked

What cable termination methods does it support?

The panel accepts both 110 and Universal IDC termination. Cable pairs are punched down onto the rear IDC contacts using a standard 110 punch-down tool, and the port modules clip into the front face once terminated.

Is it compatible with CAT5e or CAT6A cable?

The panel is designed for CAT6 cable and will physically accept CAT5e cable terminations, but CAT5e limits the overall link performance to CAT5e standards. CAT6A cable can be terminated onto the panel, but the panel itself is rated to CAT6 performance specifications.

Does it support Power over Ethernet?

Yes. The panel is rated for PoE+ (IEEE 802.3at) and will pass power from a PoE-capable switch through to connected devices such as IP cameras, wireless access points and VoIP phones, provided the cabling is correctly terminated and meets CAT6 standards.

How is it mounted in a rack?

The panel fits a standard 19-inch rack or cabinet and occupies 1U (44mm) of vertical space. It is secured using screws or cage nuts through the mounting holes at each end of the steel frame. The 32mm depth allows cable management behind the panel without fouling rear-mounted equipment.
