Description

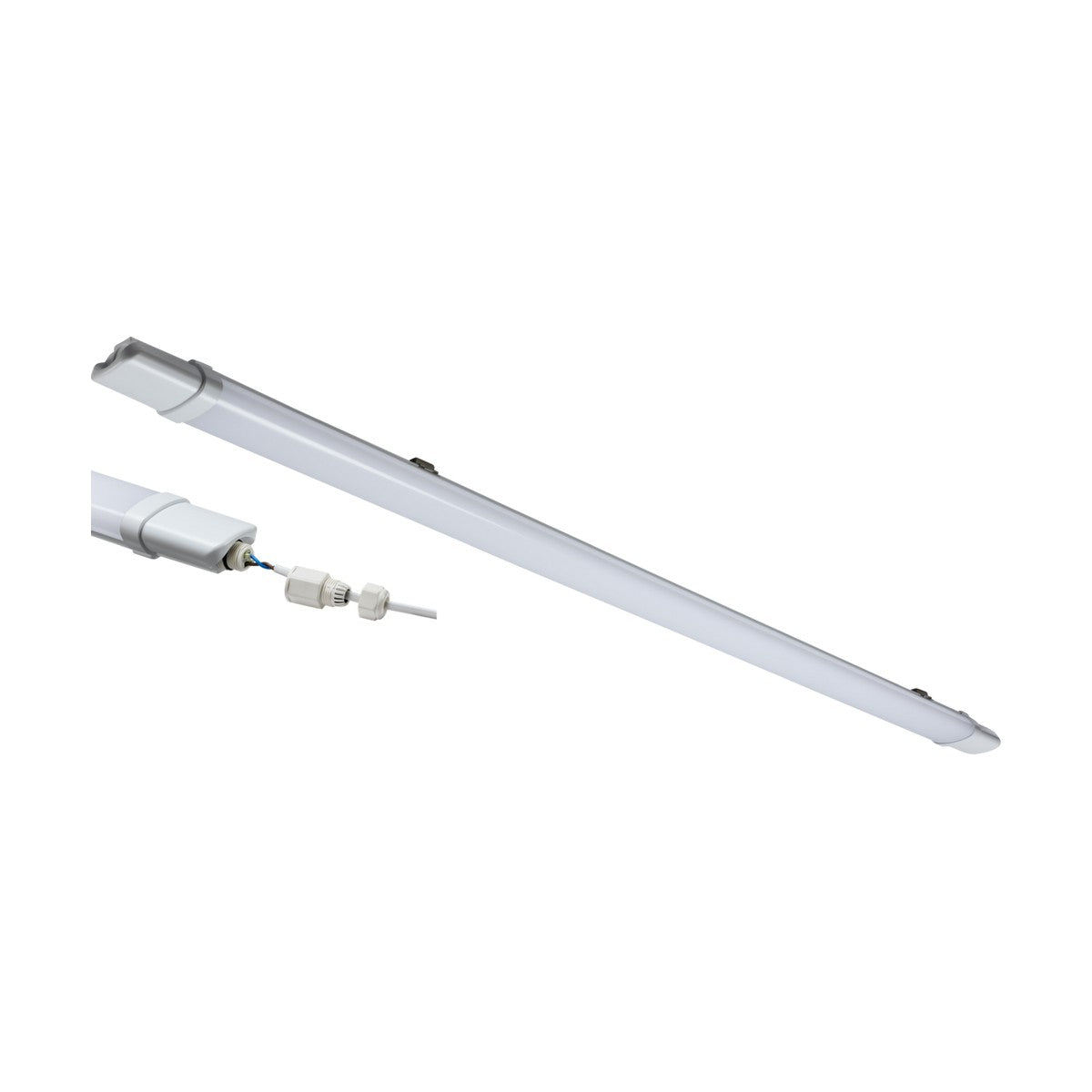

The TorlanECO is a 1250mm IP65-rated LED batten fitting with an integrated 36W LED module delivering 3735lm at 4000K cool white. The polycarbonate body houses the LED driver and lamp within a sealed enclosure rated to IP65, making it suitable for wet environments, dusty utility areas and outdoor canopies where moisture ingress would damage a standard indoor fitting.
Designed for commercial back-of-house spaces, plant rooms, storage areas, garages, workshops and exterior covered locations such as loading bays or car park ceiling zones, the batten mounts directly to ceiling or wall surfaces using the fast-fix bracket system. The hinged gear tray allows quick push-fit wiring through the back of the housing without needing to remove the diffuser, reducing installation time compared to traditional screw-terminal battens. BESA compatibility and 600mm fixing centres align with standard junction box positions.
The opal polycarbonate diffuser spreads the 125° beam angle evenly across the fitting length, avoiding harsh LED spotting and providing uniform illumination along corridors, between racking, or across utility ceiling runs. The housing carries an IK06 impact rating, tolerating moderate knocks from equipment or ladders during maintenance. L70B50 rated to 30,000 hours, the LED maintains at least 70% of initial output after approximately 3.4 years of continuous use.
The TorlanECO supports optional modular accessories including microwave motion sensors and emergency battery packs, both retrofittable after initial installation without rewiring the mains supply. This allows the fitting to be upgraded from basic on/off control to sensor-activated or emergency-compliant operation as building requirements change.
Specification
| Length |
1250mm |
| Height |
35mm |
| Width |
53mm |
| Construction |
Polycarbonate |
| Finish |
White |
| IP Rating |
IP65 |
| Class |
II |
| Primary Voltage |
230V 50Hz |
| Diffuser |
Opal |
| Lamp Technology |
LED |
| Lamp Included |
Yes |
| Dimmable |
No |
| L70B50 |
30000 |
| Energy Rating (Class) post 2021 SLR |
E |
| Beam Angle |
125 |
| CCT |
4000K |
| Light Colour |
Cool White |
| Lumens |
3735lm |
| Lumens (Light source only) |
4790lm |
| Wattage |
36W |
| Efficacy (Light source) |
105lm/W |
| CRI |
>80 |
| Warranty |
3 Year Guarantee |
Downloads
Product Specification Sheet
Frequently Asked
What does the IP65 rating mean?
IP65 means the fitting is fully dust-tight and protected against water jets from any direction. This makes it suitable for wet rooms, outdoor covered areas, wash-down zones and dusty environments where moisture or particulate ingress would damage a standard indoor light fitting.
Is the LED replaceable?
No. The LED module is integrated into the fitting and non-user-serviceable. The L70B50 rating of 30,000 hours indicates the LED will maintain at least 70% of its original brightness after approximately 3.4 years of continuous operation, after which the entire fitting would typically be replaced.
Can motion sensors or emergency backup be added later?
Yes. The TorlanECO accepts optional modular accessories including microwave motion sensors and emergency battery packs, both retrofittable after initial installation without rewiring the mains circuit. Contact us for compatibility and availability of these accessories.
What mounting options are available?
The batten uses a fast-fix bracket system for direct ceiling or wall mounting. It's BESA compatible and has 600mm fixing centres to align with standard UK junction box spacing. The hinged gear tray allows push-fit wiring from the back of the housing, reducing installation time.
