Single 25mm Pattress Box Square Edge - White

£149
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available

Minimum order for this item is 10.

Description

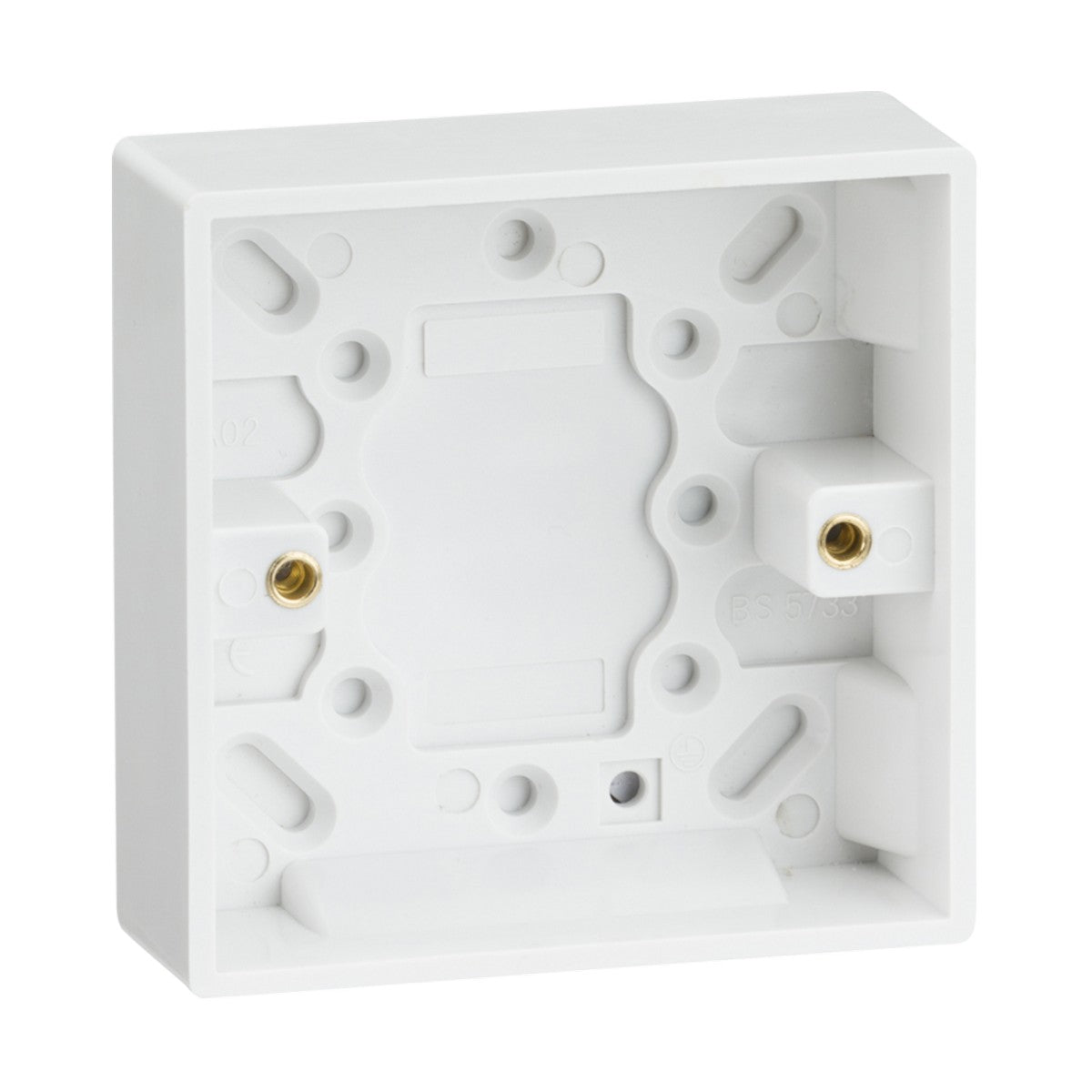

The Knightsbridge SN1400 is a single-gang 25mm pattress box moulded from white thermoset resin with a square edge profile. The box measures 86mm x 86mm across the faceplate mounting points and projects 30mm from the wall, providing 25mm of internal depth for cable and terminal accommodation behind the accessory faceplate.

Designed for surface-mounting single-gang wiring accessories where flush mounting into plasterboard or masonry is not possible, the pattress box suits both residential retrofit and commercial installation. The square edge profile mates directly with Knightsbridge's Square Edge (SN) series of switches, sockets and connection units, giving a clean finish where the accessory plate meets the box edge. The box is also compatible with standard UK single-gang accessories from other manufacturers.

The thermoset resin construction resists impact, heat and UV degradation better than standard ABS plastic, and the white finish is moulded through the material rather than applied as a coating. The box has been tested to ISO 22196:2011 for anti-microbial properties and carries an IP20 rating for indoor dry-location use. Two brass threaded inserts accept M3.5 fixing screws for the accessory faceplate, and the rear of the box has multiple knock-out points for cable entry from any direction.

Specification
Height 86 mm
Width 86 mm
Depth 30 mm
Construction Thermoset resin
Finish White
IP Rating IP20
Earth Terminal No
Anti-Microbial Properties 3rd Party Tested to ISO 22196:2011
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

What's the difference between a pattress box and a back box?

A pattress box surface-mounts onto the wall and the accessory fixes to the front of it, leaving the box visible behind the faceplate edges. A back box sinks into the wall cavity so only the accessory faceplate is visible. This pattress box is used where flush mounting is not possible or not preferred.

Does this box need an earth terminal?

No. The box is non-metallic thermoset resin and does not require earthing. Earth continuity is maintained through the accessory's own earth terminal when metal faceplates are used.

Is it compatible with screwless plates?

Yes. Knightsbridge screwless accessories use a separate metal sub-frame that fixes to the pattress box with screws, and the cover plate clips onto that sub-frame. This box accepts both screw-fixed and screwless accessories in the SN range.

How many cables can fit inside?

The 25mm internal depth accommodates typical UK twin-and-earth cable runs for single accessories. For accessories drawing high current or needing multiple cable terminations, a 35mm or 47mm deeper box may be required to avoid cable compression.
