Outdoor Recessed LED Guide Light - Blue 1W IP54

£1599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

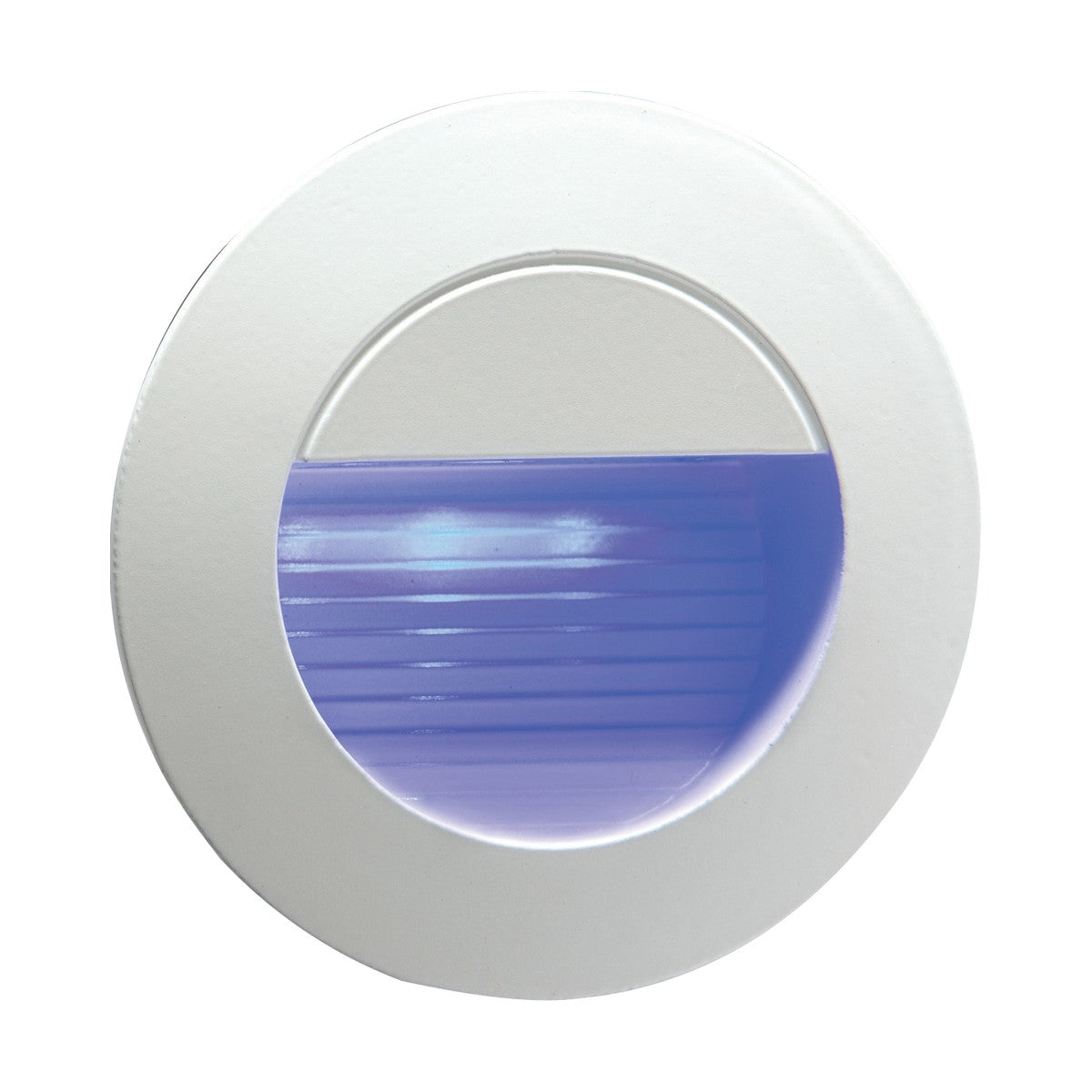

The Knightsbridge NH020B is an 80mm diameter recessed LED guide light with an integrated 1W blue LED behind a clear diffuser, set in a matt white die-cast aluminium bezel. The fitting projects just 3mm from the wall or step riser once installed, with a 50mm recessed depth behind the mounting surface. The integrated LED runs directly on 230V mains with no external driver required.

Designed for step risers, garden walls, decking stairs and perimeter pathways, the blue LED provides low-level directional light for nighttime navigation without overwhelming ambient darkness. The IP54 rating protects against dust ingress and water splashes from any direction, making the fitting suitable for outdoor hardscapes exposed to rain. The 75mm cut-out accepts a mounting sleeve for brick or masonry installation, and the 0.2m cable tail connects to mains wiring inside the wall cavity or back box.

The matt white bezel blends into rendered walls, painted masonry and white decking fascias during daylight, while the blue LED glow becomes visible after dark. The die-cast aluminium construction withstands outdoor temperature variation and UV exposure without degrading. At 1W per fitting, multiple guide lights can be run on a single lighting circuit without significant load, making them practical for illuminating entire staircases or garden paths with consistent spacing.

Specification
Diameter 80mm
Projection 3mm
Recessed Depth 50mm
Cut-out with Sleeve 75mm
Construction Die-cast aluminium
Finish Matt White
IP Rating IP54
Class II
Primary Voltage 230V 50Hz
Cable Length 0.2m
Diffuser Clear
Lamp Technology SMD LED
Lamp Included Yes
Dimmable No
Light Colour Blue
Wattage 1W
Warranty 1 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What depth of wall or step riser is needed for installation?

The fitting requires 50mm recessed depth behind the mounting surface, plus space for the 0.2m cable tail and electrical connection. A minimum 70mm cavity depth is recommended for safe installation in brick or block walls.

Does the blue LED use a coloured filter or is it a blue-emitting LED?

The blue light comes from a blue-emitting SMD LED chip behind a clear diffuser, not a white LED with a coloured filter. This gives a purer blue tone without filtering losses.

Can multiple fittings be wired on the same circuit?

Yes. At 1W per fitting, multiple NH020B guide lights can be wired in parallel on a single lighting circuit without exceeding typical circuit capacity. For a full staircase or long pathway, consult a qualified electrician to calculate the total load.

Is the fitting dimmable?

No. The integrated LED runs at fixed output on 230V mains and is not compatible with dimmer switches.
