Description

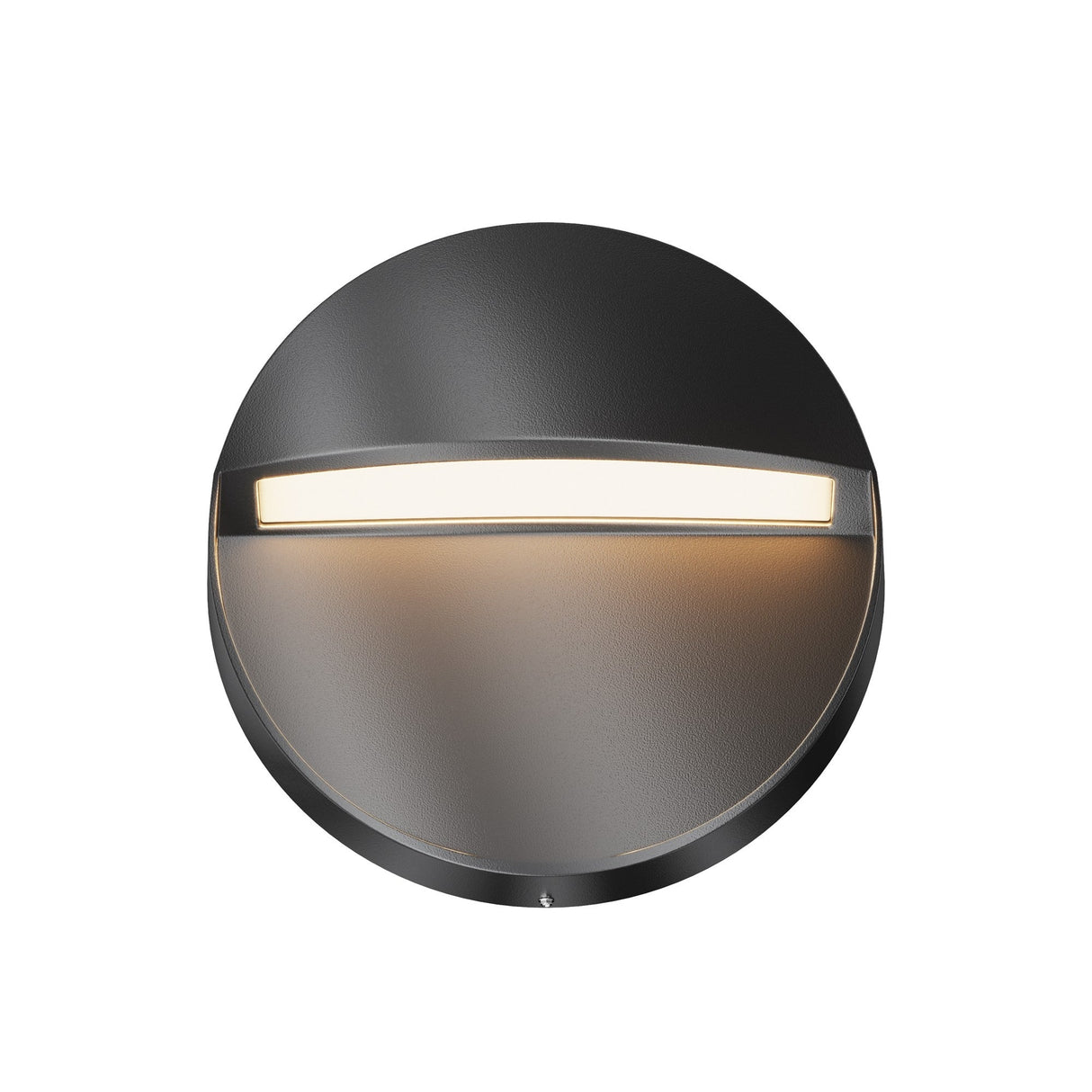

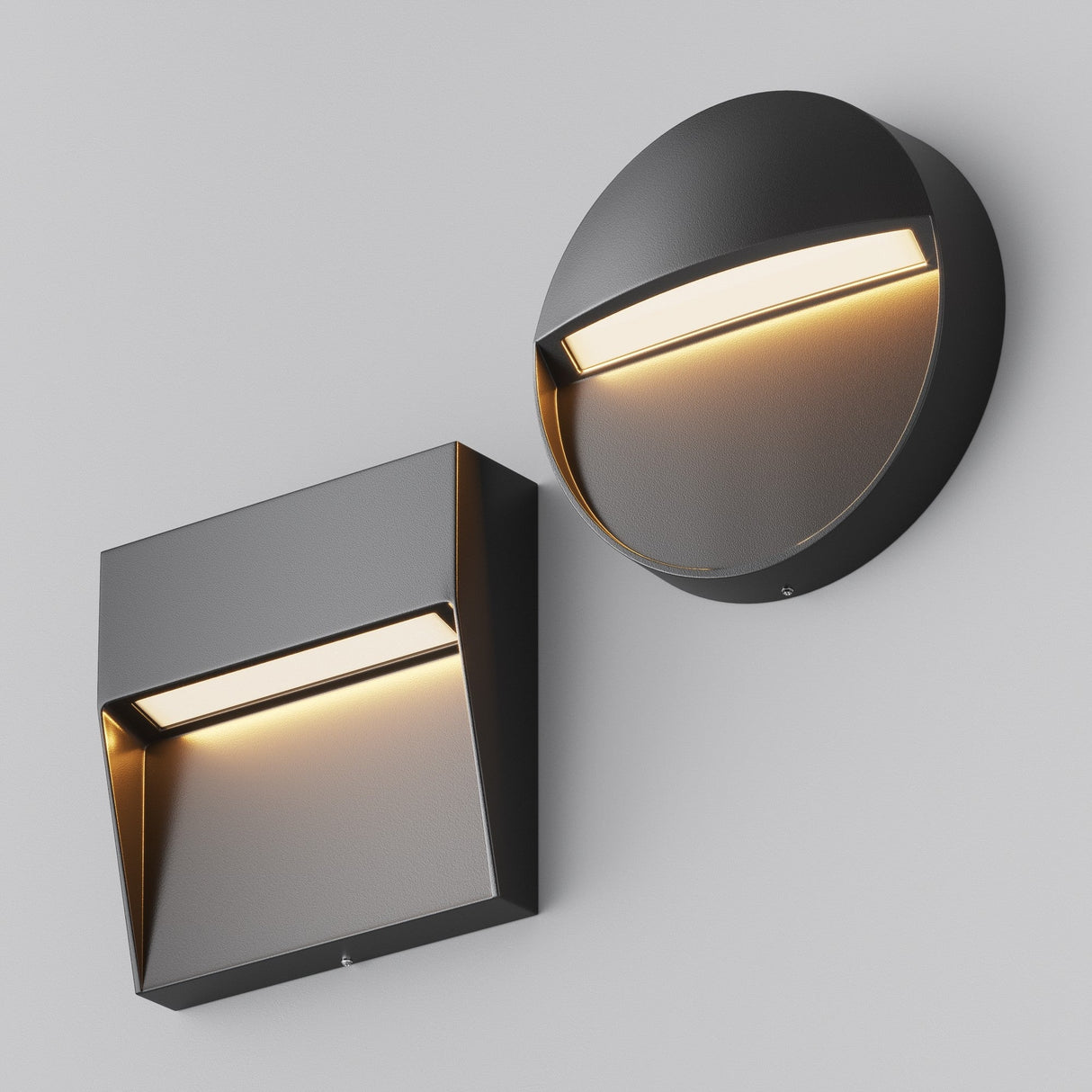

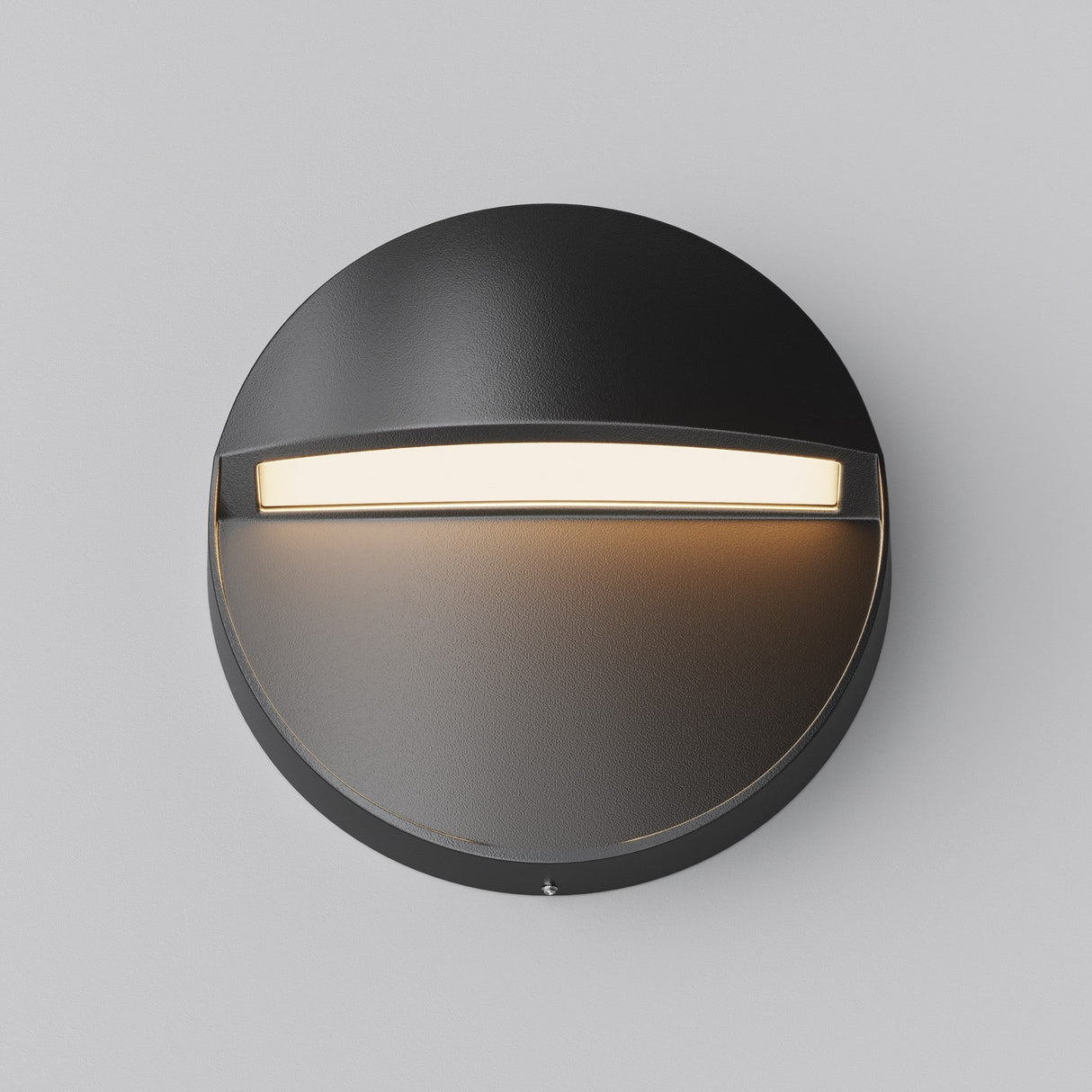

The Mane is a 120mm round outdoor wall light with an integrated 3W LED housed inside a black aluminium body and frosted plastic diffuser. The circular profile projects 30mm from the wall, with a horizontal aperture slot cutting across the centre that allows light to wash both upward and downward across the mounting surface. The integrated LED runs at 3000K warm white, producing ambient light rather than focused task illumination.
Designed for pathways, staircases, entrance porches and garden walls, the Mane carries an IP54 rating, protecting the internals against dust and water spray from any direction. This makes it suitable for covered outdoor positions where direct rainfall is unlikely, such as under eaves or on recessed porch walls. The 3W LED output suits close-range wayfinding and accent lighting rather than general area illumination — multiple fittings would typically be spaced 2-3m apart along a pathway or stairwell.
The aluminium body is powder-coated in matt black, giving a non-reflective finish that recedes visually against darker brick, render or timber cladding. The frosted plastic diffuser softens the LED strip behind it, preventing glare when viewed directly and creating an even wash of light above and below the fitting. At 30mm projection the Mane sits close to the wall, reducing the risk of impact damage in narrow passageways or on stair landings where people pass close to the mounting surface.
Specification
| Height |
3cm |
| Diameter |
12cm |
| Finish |
Black |
| Construction |
Aluminium & Plastic |
| IP Rating |
IP54 |
| Voltage |
AC 110-240 |
| Wattage |
3 |
| Colour Temperature |
3000K |
| Warranty |
3 Year Guarantee |
Downloads
Product Manual
Frequently Asked
Can the Mane be used in fully exposed outdoor positions?
The IP54 rating protects against dust and water spray, making it suitable for covered outdoor positions like porches, under eaves, or on recessed walls. It is not rated for positions with direct heavy rainfall or submersion.
What spacing is recommended for pathway lighting?
At 3W output per fitting, the Mane provides ambient wayfinding light rather than strong illumination. For continuous pathway lighting, space fittings 2-3m apart depending on the width of the path and surrounding ambient light levels.
Is the LED replaceable?
The LED is integrated into the fitting and is not user-replaceable. The LED lifespan is typically 25,000-30,000 hours, equivalent to approximately 10-12 years of nightly use at 6-8 hours per day.
How is the fitting mounted?
The Mane mounts directly to a wall surface using the rear fixing plate. Standard installation requires a weatherproof junction box or external cable entry gland behind the fitting to protect the mains connection. Full installation details are in the product manual.
