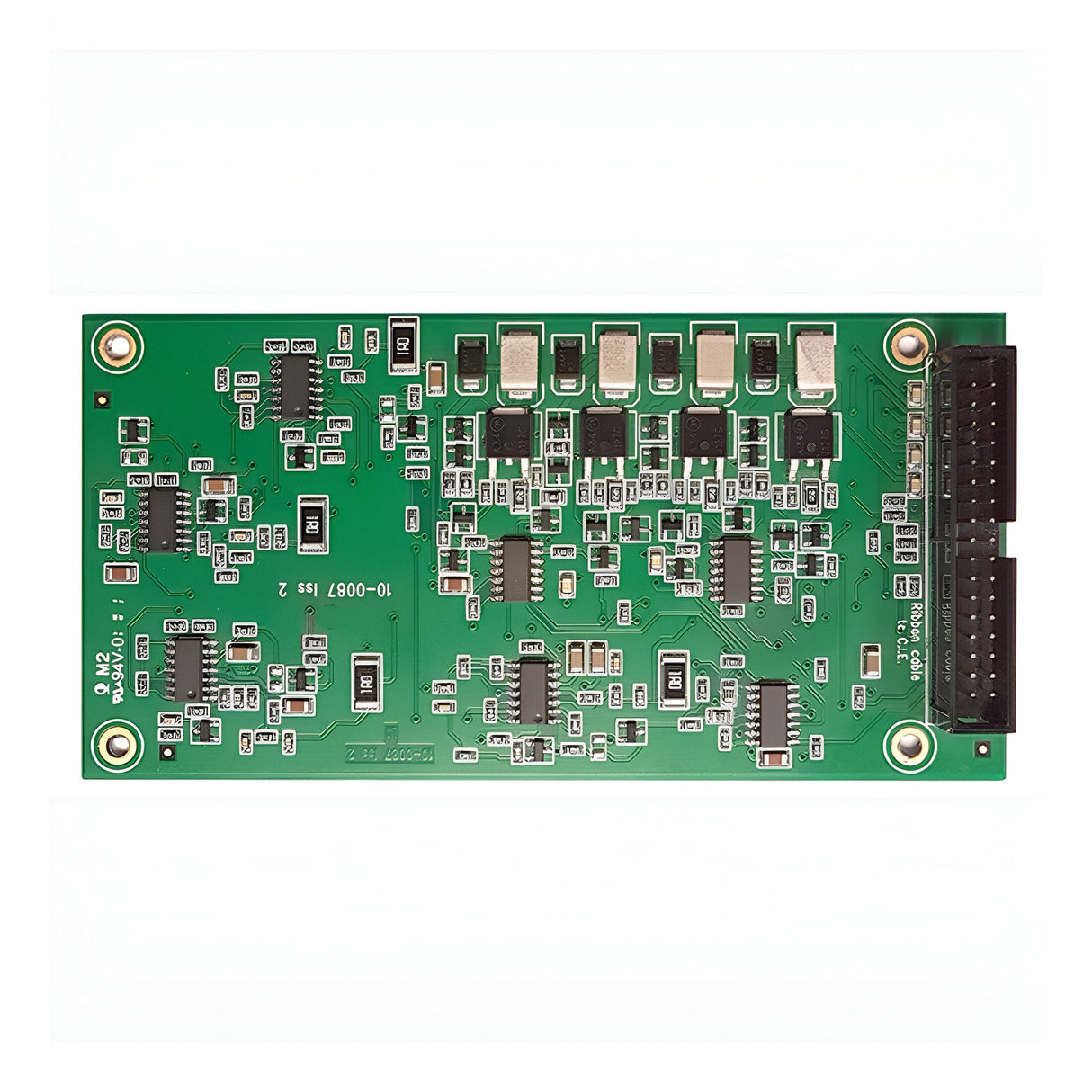

MagDuo 4 Zone Conventional Expansion Card - 2 Wire

£16499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The MagDuo 4-zone conventional expansion card adds four 2-wire zones for conventional fire detectors and manual call points to an existing ESP MagDuo4 or MagDuo4B fire alarm control panel. The card plugs directly into the expansion slot on the host panel PCB, extending the system from 4 to 8 addressable zones without requiring additional external cabling or power supplies.

Designed for small commercial installations where the initial 4 zones of the MagDuo4 panel need to be expanded to cover additional floors, zones or building sections, the card supports standard 2-wire detector loops using conventional smoke, heat and multi-sensor detectors alongside break-glass manual call points. Each of the four zones on the expansion card operates independently, allowing separate zone labelling and control for different areas of the building.

The PCB measures 120mm x 120mm x 70mm and weighs 150g, fitting inside the standard MagDuo4 control panel enclosure without requiring a larger cabinet. The card uses the host panel's power supply and communication bus, so installation involves plugging the card into the expansion header and connecting the four new zone terminals to the detector loops. Configuration is handled through the MagDuo4 panel interface once the card is detected on power-up.

Specification
Product Net Weight (KG) 0.15
Product Gross Weight (KG) 0.2
Outer Gross Weight (KG) 0.15
Product Length (mm) 120
Product Width (mm) 120
Product Height (mm) 70
Outer Length (mm) 120
Outer Width (mm) 120
Outer Height (mm) 70
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

Which panels is this card compatible with?

The card is compatible only with ESP MagDuo4 and MagDuo4B fire alarm control panels. It will not work with other ESP panel models or third-party systems.

How many detectors can each zone support?

Each conventional zone supports multiple detectors and call points wired in a 2-wire loop configuration. The exact number depends on the total loop current draw and cable run length — refer to the product manual for loop loading calculations.

Does the expansion card require separate power?

No. The card draws power from the host MagDuo4 panel via the expansion header connection, so no additional power supply or cabling is needed beyond the detector loop wiring.

Will the card fit inside the standard MagDuo4 enclosure?

Yes. The 120mm x 120mm x 70mm PCB is designed to fit inside the standard MagDuo4 control panel cabinet without requiring a larger enclosure or separate housing.
