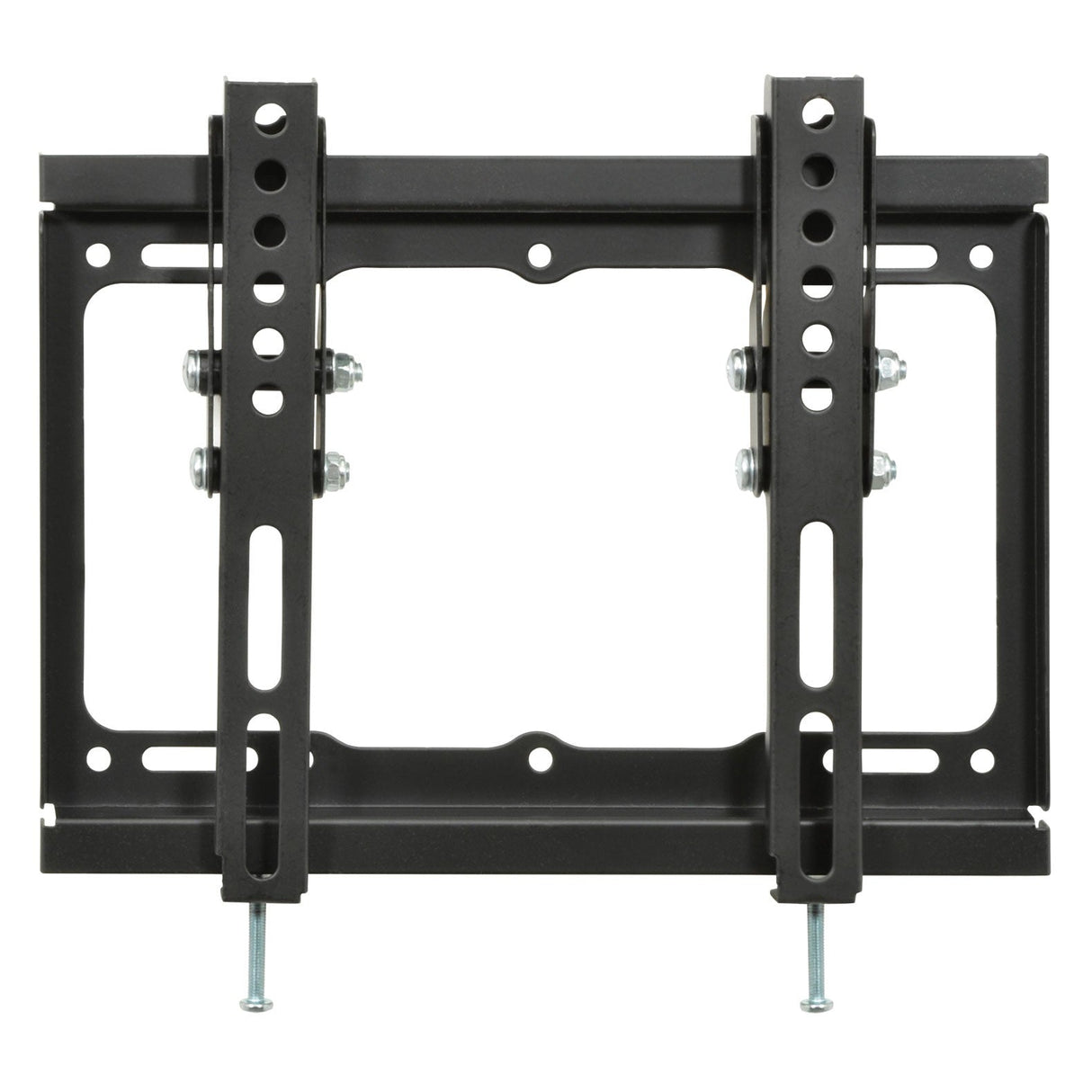

AV:Link 17-45 Inch Tilting TV Wall Bracket - VESA 200x200 - 20kg Max Load

The AV:Link tilting TV wall bracket supports screens from 17 to 45 inches with VESA mounting patterns up to 200 x 200mm and a maximum weight load of 20kg. The bracket provides a 0-10° downward tilt adjustment, allowing the screen angle to be set for comfortable viewing from seated positions or to reduce glare from ceiling lights and windows.

Designed for bedrooms, kitchens, home offices and smaller living spaces where wall-mounted screens need to sit close to the wall surface, the bracket maintains a 25mm clearance between the wall plate and the back of the TV. The wall plate measures 272 x 192mm and fixes to solid brick, concrete block or timber-framed plasterboard walls using appropriate fixings (masonry fixings not included; select fixings based on your wall type). The bracket itself weighs 750g and adds minimal load to the wall.

The kit includes four sets of TV fixing screws in M4, M5, M6 and M8 sizes (all 25-30mm length) to match common VESA hole thread sizes across different TV manufacturers. The low-profile design keeps the screen tight to the wall when set at 0° tilt, reducing the visual bulk of the installation and keeping the screen within reach of typical HDMI and power cable lengths from wall-mounted outlets.

Product Manual

What VESA pattern does my TV use?

VESA patterns are the horizontal and vertical distances in millimetres between the four mounting holes on the back of your TV. Measure the distance between the centres of the holes — common patterns for 17-45 inch screens are 100x100mm, 200x100mm and 200x200mm. This bracket supports all patterns up to 200x200mm.

What wall fixings are needed?

The bracket includes screws to fix the TV to the bracket, but wall fixings depend on your wall type. For solid brick or concrete block walls, use M8 or M10 expansion bolts or shield anchors. For timber-framed plasterboard, fix the wall plate directly to timber studs using wood screws into the centre of the stud, not just the plasterboard.

Can the bracket be adjusted after installation?

Yes. The tilt adjustment is controlled by two threaded bolts (visible in the image) that can be loosened to adjust the screen angle between 0° and 10°, then re-tightened once the preferred angle is set. The adjustment can be made after the TV is mounted.

Is the bracket suitable for a 32 inch TV?

Yes, provided the TV weighs no more than 20kg and uses a VESA pattern of 200x200mm or smaller. Most 32 inch LED TVs weigh between 4-8kg and use 200x100mm or 200x200mm VESA, so this bracket is appropriate for that screen size.
