AV:Link VESA Fixed TV Wall Bracket 17-45 Inch - 25mm Profile

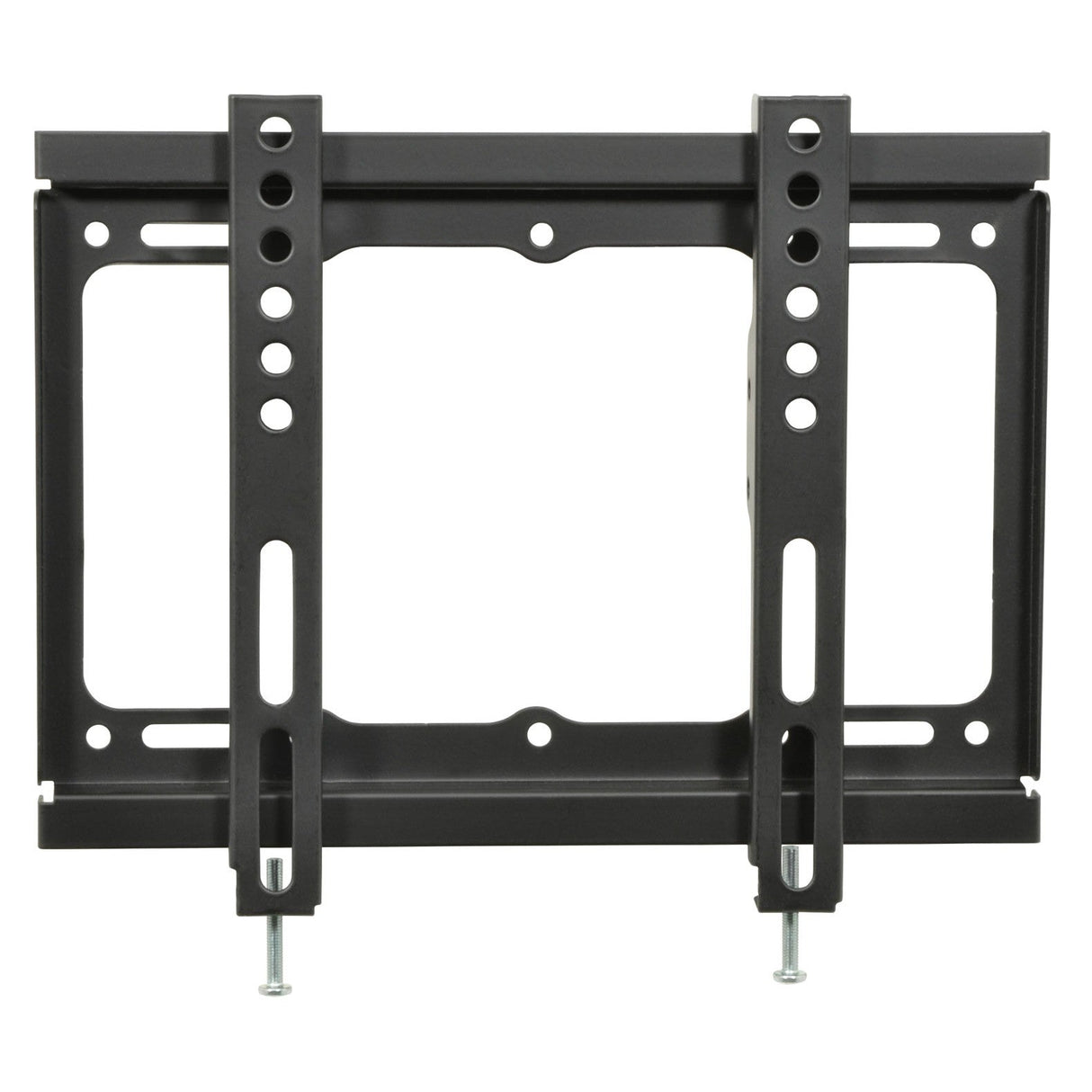

The AV:Link VESA fixed TV wall bracket mounts screens from 17 to 45 inches with a maximum weight load of 20kg. The bracket consists of a 272 x 192mm wall plate and two vertical arms that attach to the rear VESA mounting points on the TV, holding the screen in a fixed position 25mm from the wall. The bracket supports VESA mounting patterns up to 200 x 200mm, covering most TVs and monitors in the 17-45 inch range.

Designed for bedrooms, kitchens, offices and smaller living spaces where a low-profile wall mount is preferred over a stand or swivel bracket, the fixed design eliminates moving parts and provides a stable, permanent position. The 25mm wall clearance keeps the screen close to the surface without being flush-mounted, allowing some air circulation behind the panel and clearance for rear-mounted ports. Installation requires drilling into masonry, timber studs or plasterboard with appropriate wall anchors (not included — choose fixings based on your wall type).

The bracket weighs 610g and the wall plate measures 272 x 221mm, giving a compact footprint that sits behind most screens without visible overhang. The kit includes four sets of TV fixing screws in M4, M5, M6 and M8 sizes with 25-30mm lengths, covering the majority of VESA thread standards. The matt black powder-coated steel finish blends into the back of the TV and is not visible once the screen is mounted.

Product Manual

What VESA pattern does my TV use?

VESA mounting patterns are the spacing between the four threaded holes on the back of your TV, measured in millimetres horizontally and vertically. Common patterns for 17-45 inch screens include 75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm. This bracket supports all VESA patterns up to 200 x 200mm. Check your TV's manual or measure the hole spacing to confirm compatibility before purchasing.

What wall fixings are needed?

Wall fixings are not included and must be chosen based on your wall type. For solid masonry or brick, use 8-10mm rawlplugs with 50-60mm screws. For timber studs, use 50mm wood screws directly into the stud. For plasterboard, use heavy-duty plasterboard anchors rated for at least 30kg combined load, ensuring at least two fixings land on a stud where possible.

Can the TV be tilted or swiveled once mounted?

No. This is a fixed bracket with no tilt or swivel function. The TV sits in a permanent position parallel to the wall. If you need angle adjustment, consider a tilting or full-motion bracket instead.

How much clearance is there behind the TV?

The bracket holds the screen 25mm from the wall surface. This provides enough clearance for most rear-mounted HDMI, power and aerial cables without excessive projection, while still allowing some airflow behind the panel.
