AV:Link Full Motion TV Wall Bracket 37-80 Inch VESA 600x400 60kg

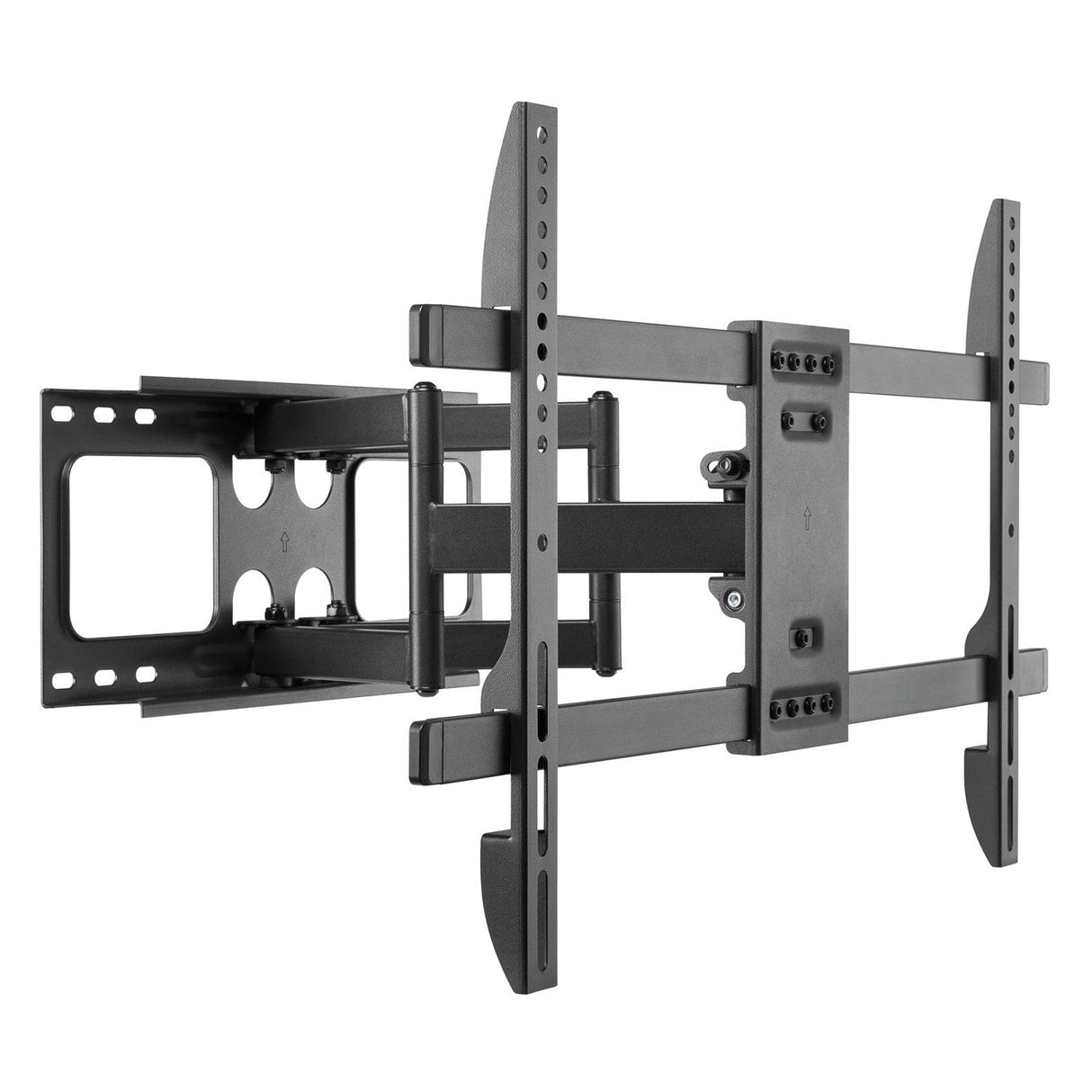

The AV:Link full motion TV wall bracket supports screens from 37 to 80 inches and up to 60kg, using a dual-arm articulating design that extends from 58mm to 402mm from the wall. The bracket is compatible with VESA mounting patterns up to 600 x 400mm, covering the majority of large-format flat-screen TVs from brands including Samsung, LG, Sony, Panasonic and Philips.

Designed for living rooms, conference rooms and commercial installations where the viewing angle needs to change depending on seating position, the bracket provides -5° to +15° tilt and 120° total swivel range (±60° from centre). The dual-arm construction uses steel arms with integrated cable channels and hook-and-loop tape routing to keep HDMI, power and aerial cables concealed along the bracket length rather than hanging loose behind the TV.

The wall plate measures 430 x 200mm and fixes to timber studs, concrete or brick using the included hardware. The bracket itself weighs 6kg before the TV is mounted, so wall fixings must be appropriate to carry the combined 66kg maximum load. Once installed, the articulating arms allow the screen to be pulled forward for access to rear panel connections or pushed back flush when not in use. The tilt mechanism locks in position using adjustment screws on each arm, preventing drift under the weight of the screen.

Product Manual

What VESA pattern does my TV use?

VESA patterns are the horizontal and vertical distances in millimetres between the four mounting holes on the back of your TV. Measure the distance between the centres of the top two holes (horizontal) and the distance from top to bottom holes (vertical). This bracket supports patterns up to 600mm wide and 400mm tall. Common patterns for large TVs include 400x400, 600x400, 400x200 and 300x300.

Can this bracket be used on plasterboard walls?

The bracket and a 60kg TV create a combined load of 66kg, which requires fixing into timber studs, concrete or brick. Plasterboard alone will not support this weight. If your wall is plasterboard over timber studs, locate the studs and fix the wall plate directly into them using appropriate wood screws. If no studs align with the mounting position, the wall may need reinforcement before installation.

How far does the bracket extend from the wall?

The bracket extends from a minimum of 58mm when pushed back against the wall to a maximum of 402mm when fully extended. This allows the screen to be pulled forward for access to rear panel connections or cleaning, then pushed back flush when not needed.

Is installation hardware included?

Yes. The bracket includes wall fixings and screws for attaching the TV to the bracket arms. Wall fixings are generic and may need to be substituted depending on your wall type. For masonry walls, use appropriate masonry anchors or raw plugs rated for the combined weight. For timber studs, use wood screws into the stud centres.
