4-Way Track X-Connector - Black

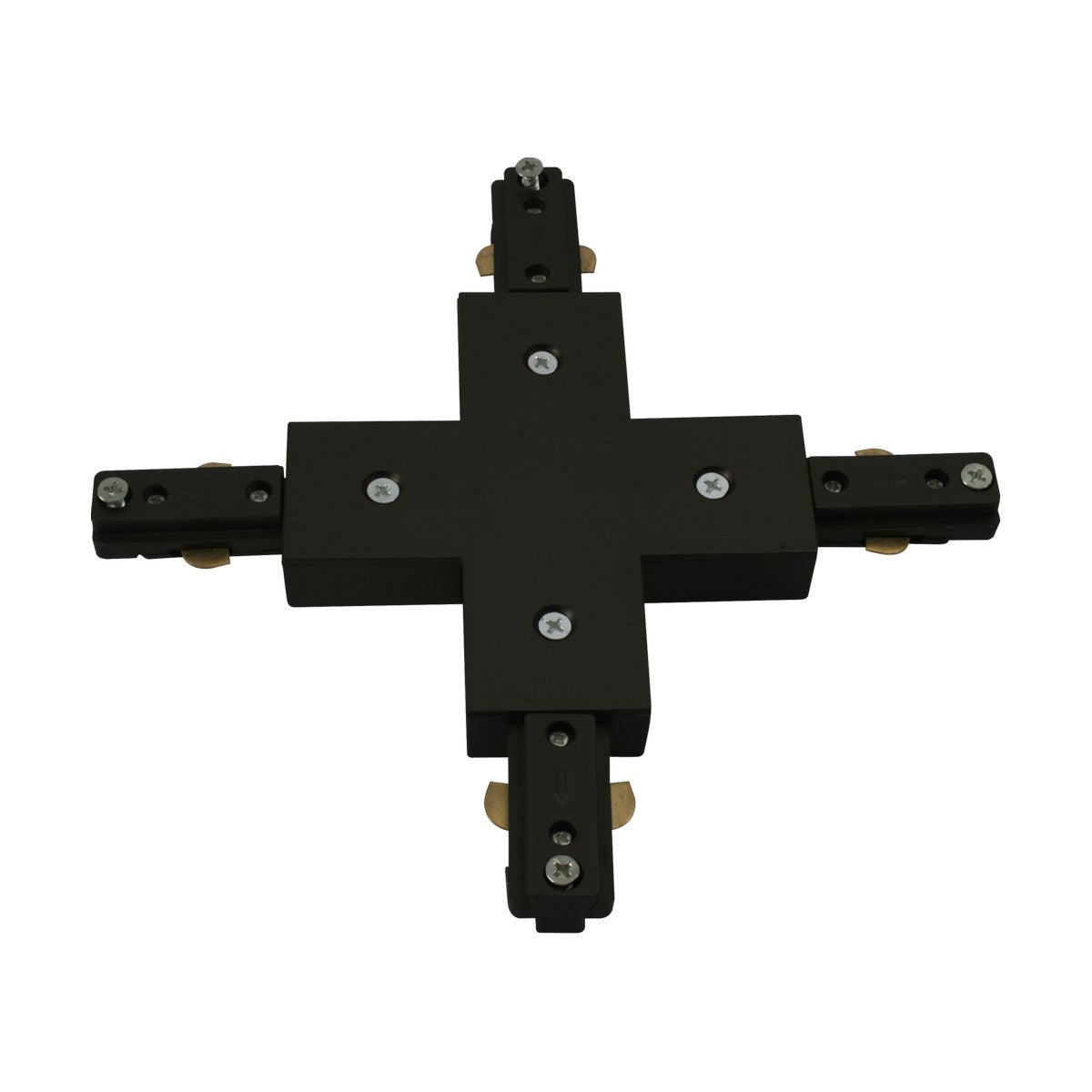

The Knightsbridge 4-way track X-connector joins four TRK series track sections in a cross configuration, allowing track lighting layouts to branch in four directions from a central point. Built from black polycarbonate with copper conductors, the connector carries 230V single-circuit power through each arm and maintains electrical continuity across all four track sections.

Designed for commercial retail, gallery and hospitality installations where track lighting needs to cover intersecting display zones or ceiling grids, the X-connector can also be used as a central power feed point, with the mains supply entering through one arm and distributing to the other three. The 181mm square footprint sits flush with standard TRK track width, and the 18mm projection keeps the connector profile low against the ceiling. The black finish matches black TRK track rails and sits discreetly in installations where the track infrastructure is visible.

The polycarbonate body is rated IP20 for dry indoor use and carries Class I earthing. Each arm terminates in the standard TRK track connector profile, allowing track sections to clip in without tools. The connector handles the full 230V 50Hz load of the circuit, so spotlights can be positioned anywhere along the connected track sections without needing to concentrate loads near the power entry point.

Product Specification Sheet

What track system is this compatible with?

This connector is designed for the Knightsbridge TRK series single-circuit track system. It will not fit other manufacturers' track profiles or multi-circuit track systems.

Can this be used as a power entry point?

Yes. The X-connector can function as a central power feed, with mains supply entering through one arm and distributing to the other three track sections. Consult a qualified electrician for mains installation.

What's the maximum load it can carry?

The connector is rated for 230V 50Hz on a single circuit. The maximum load depends on the circuit breaker rating and the total wattage of all spotlights on the connected track sections. A typical 6A lighting circuit supports up to 1380W total.

Is installation tool-free?

Track sections clip into the connector arms without tools once the connector itself is mounted. Mounting the connector to the ceiling or support structure may require fixings depending on the installation method used.
