Citronic PLX3600 Power Amplifier, 2 x 1350W @ 4 Ohms

£56999
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
14 Day Returns
Flexible payment options

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

  • Bridge mode for high power mono operation
  • Output stable down to 2 Ohms
  • Switchable clip limiter
Power supply 230Vac, 50Hz (IEC)
Controls Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance 20k ohms
Frequency response 5Hz - 50kHz
Total harmonic distortion 0.05%
Slew rate 40V/us
Damping factor >400
Protection Short-circuit, overload, D.C. and thermal protect
Dimensions 482 x 453 x 88mm (2U)
Power rms @ 2 Ohms 2 x 1800W
Power rms @ 4 Ohms 2 x 1350W
Power rms @ 8 Ohms 2 x 800W
Power rms bridge @ 4 Ohms 2900W
Power rms bridge @ 8 Ohms 2300W
Weight 26kg
Fuse F15A (6 x 32mm)
Amplifier : construction Class-H

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

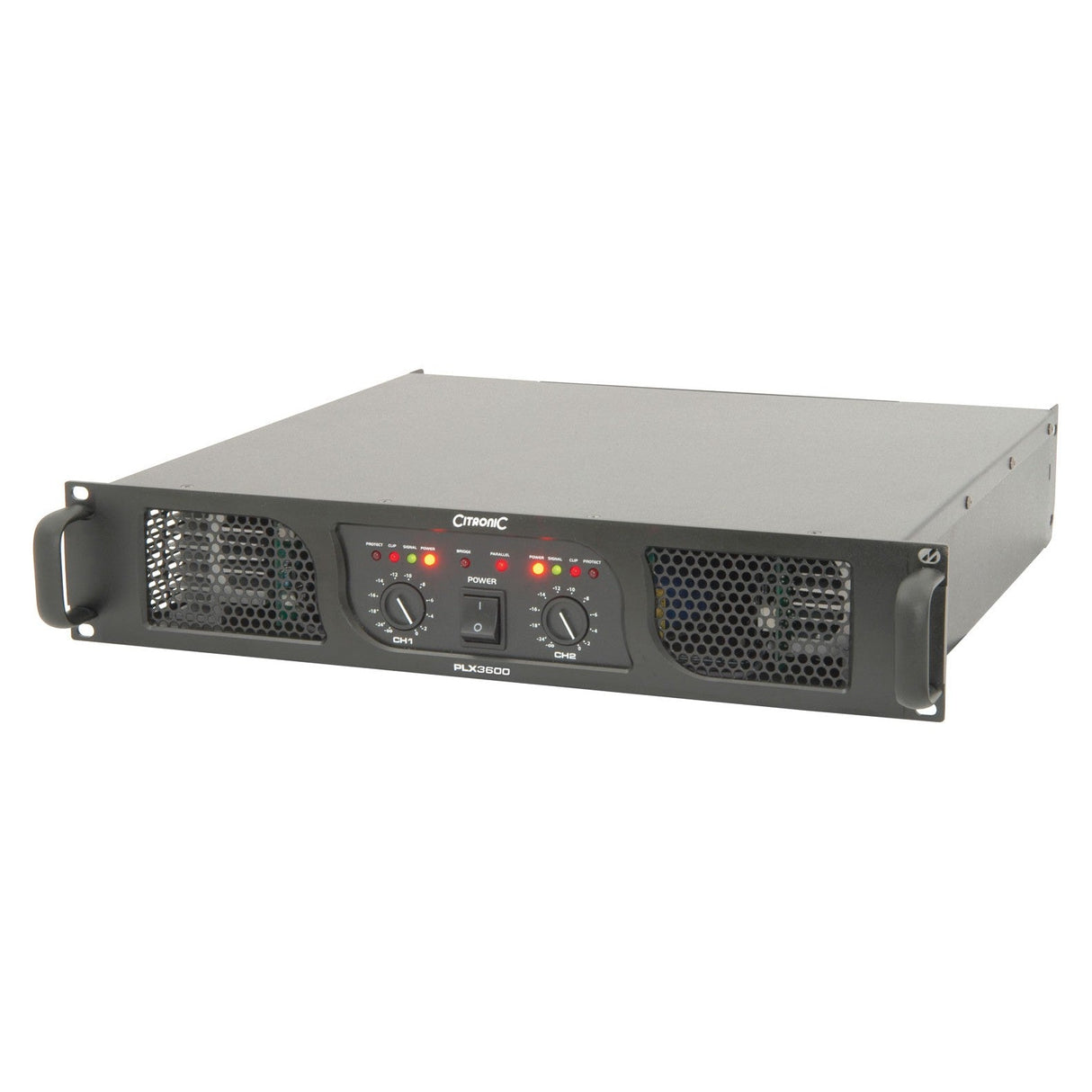

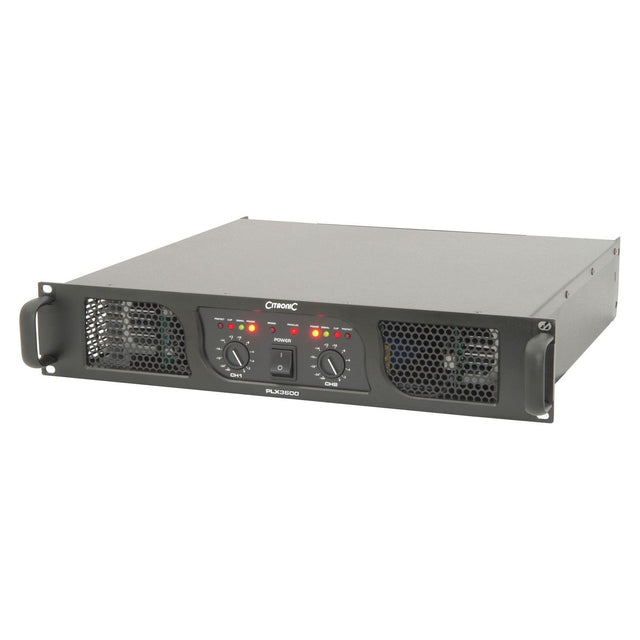

    A black Citronic PLX3600 Power Amplifier with the Citronic logo on the front panel features dual fan cooling and class H architecture. It boasts two large dials, numerous red LED indicators, ventilation grills on each side, and sturdy handles on both ends for easy rack mounting.
