Wide Range PIR Sensor 360° - Recess Mount

£1699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
30 Day Returns
Flexible payment options

Wide range PIR ceiling sensor

  • IP20 rated for indoor use only
  • Recess fitting
  • Cut out: 80mm
  • 360° field of detection
  • 2-20m range
  • Adjustable Lux
  • Adjustable time: Approx. 10 seconds to 10 minutes
  • Can be wired in parallel
  • Switching capacity: Max. 2000W Incandescent / Max. 1000W LED
  • Certified to EN 55015, EN 61547, EN 61000, LVD Directive
  • Supplied in Knightsbridge box
Diameter 110 mm
Projection 34 mm
Cut-out Diameter 80 mm
Construction Polycarbonate
Finish White
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2

Product Specification Sheet

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

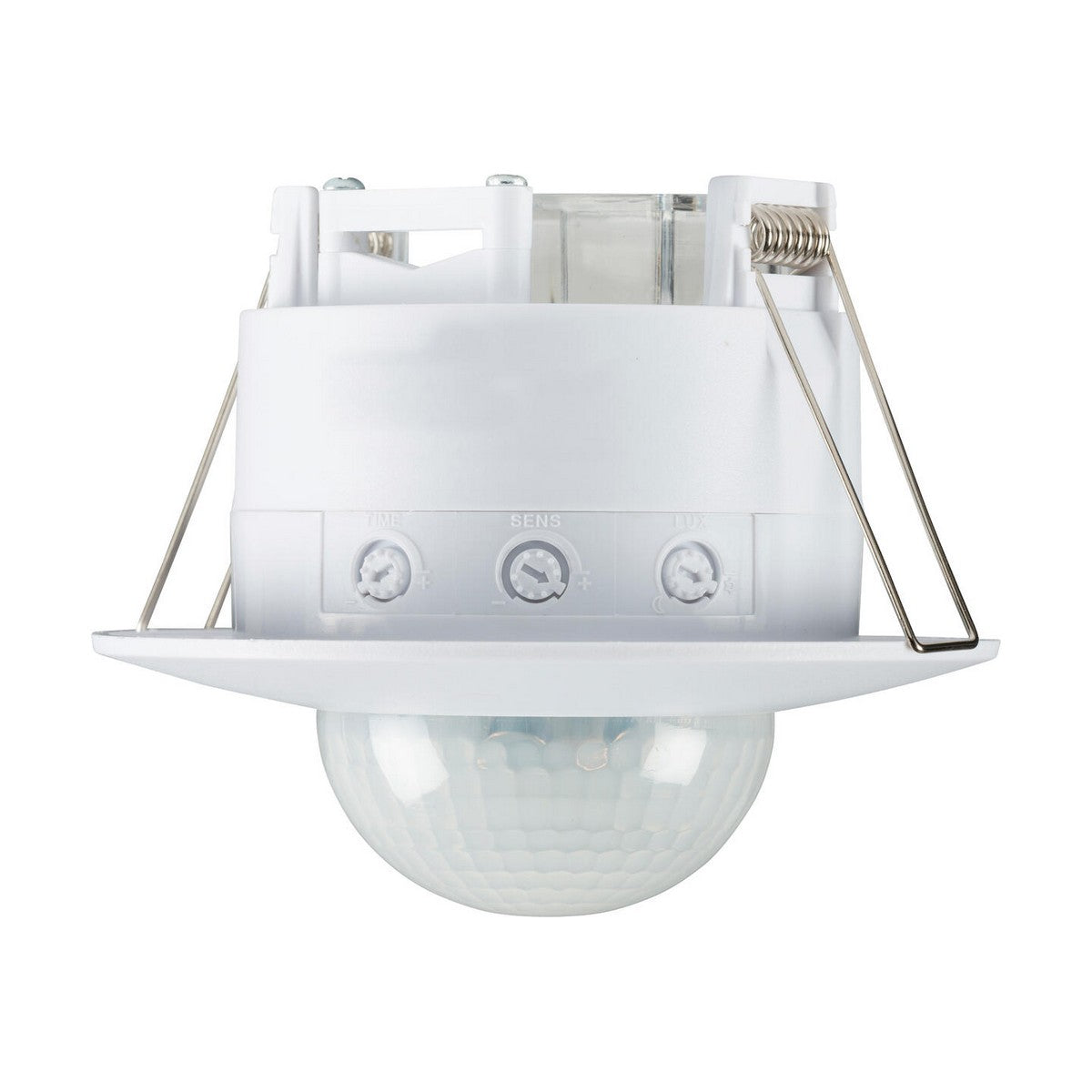

    The Wide Range PIR Sensor 360° - Recess Mount boasts a sleek, circular design with three adjustable dials labeled TIME, SENS, and LUX. It is designed for seamless recess fitting and comes enclosed in a clear, dome-shaped housing secured by sturdy metal brackets.
