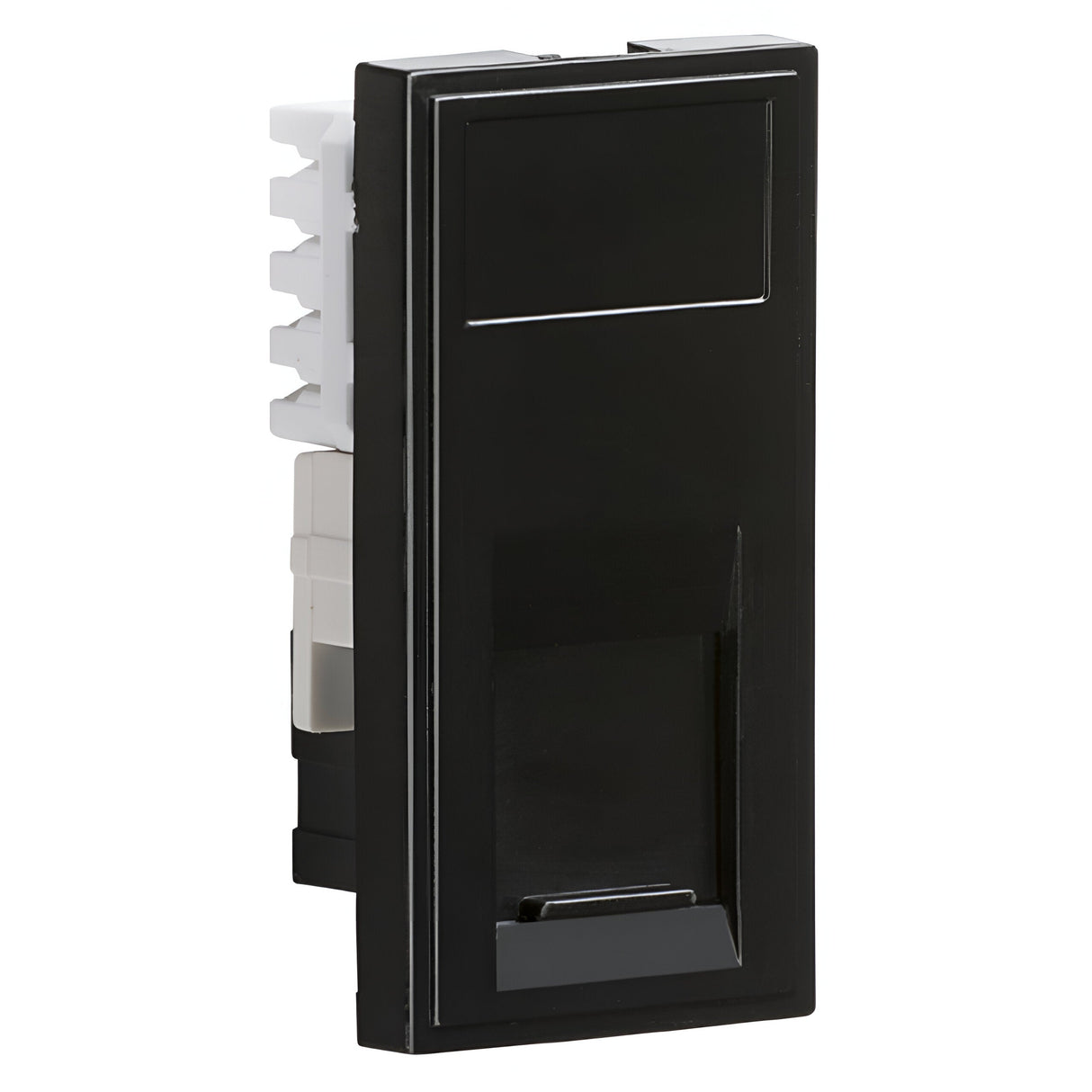

UTP CAT6A RJ45 Outlet Module 25 x 50mm - Black

£299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Networking outlet module designed for use with euro-module faceplates.

Features

  • Single shuttered CAT6A unshielded RJ45 outlet
  • Conforms to ANSI/TIA/EIA 568B.2-10
  • 25 x 50mm format
  • RJ45 socket
  • IDC terminals (16–20 AWG)

Benefits

  • Supports data transfer up to 10Gbps over 100m (500MHz bandwidth)
  • Backwards compatible with CAT6 and CAT5e (note: speed may be limited)
  • Reduced crosstalk for cleaner signal transmission
  • Enhanced PoE capabilities, ideal for smart home devices like security cameras
  • Optimised when used with certified UTP CAT6A cabling
Specification
Height 50mm
Width 25mm
Depth 18.6mm
Recessed Depth 15mm
Min. Mounting Box Depth 25mmmm
Construction ABS
Finish Black
IP Rating IP20
Terminal IDC
Warranty 2 Year Guarantee
Downloads

Product Specification Sheet
