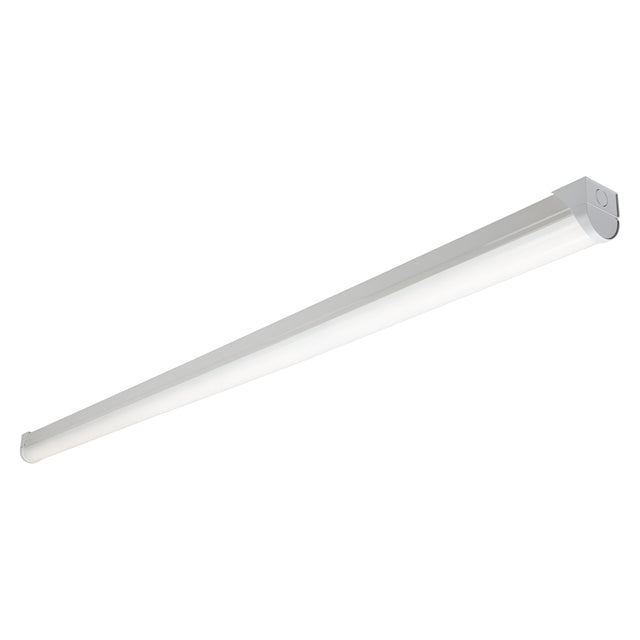

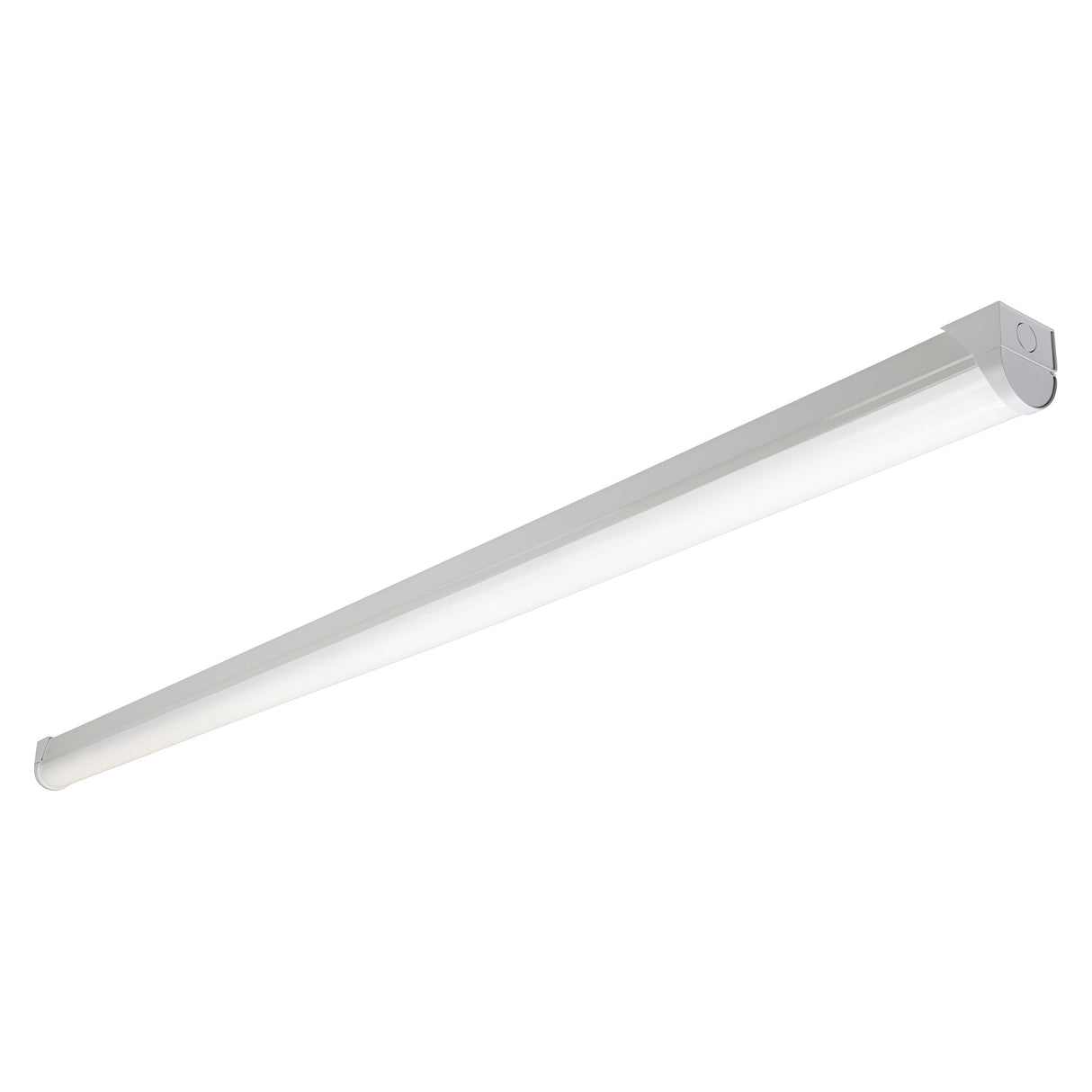

Single 6ft 49W Modular CCT And Wattage Adjustable Batten

£3199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Built for demanding installations, this modular batten provides robust lighting for commercial spaces, warehouses, and car parks. With selectable outputs from 28W to 49W and colour temperatures between 3000K and 5700K, it adapts seamlessly to varied environments. It supports high-lumen performance up to 7,200lm using Tridonic drivers and next-gen LEDs.

Engineered for easy integration, this batten includes a hinged gear tray and push-fit terminal blocks. Whether retrofitting or installing new systems, it accommodates conduit entries, BESA fixings, and 600mm centres. Microwave sensors and emergency modules plug in without wiring changes.

  • Modular microwave sensor (MODMWS) & emergency kit (MODEMKIT) compatible
  • Wattage selectable: 28W/34W/41W/49W
  • Up to 150 lm/W efficiency
  • Adjustable CCT: 3000K, 4000K, 5700K
  • High-output: Up to 7,200lm @ 4000K
  • Hinged tray for fast install
  • Rear & end conduit entries
  • Fully BESA box and 600mm compatible
Specification
Length 1790mm
Width 61mm
Projection 70mm
Construction Pressed steel & polycarbonate
Finish White
IP Rating IP20
Class I
Primary Voltage 230V 50Hz
Diffuser Opal
Lamp Technology LED
Lamp Included Yes
Dimmable No
L70B50 100000
Energy Rating (Class) post 2021 SLR C
Beam Angle 120
CCT 3000/4000/5700K
Light Colour CCT
Lumens 4000/4200/4100,4900/5200/5000,5700/6100/5900,6500/7200/6700lm
Lumens (Light source only) 4500/4900/4600,5500/6000/5700,6300/7000/6400,7500/8300/7800lm
Wattage 28/34/41/49W
Efficacy (Light source) 173/173/169/168lm/W
CRI >85
Driver Type Constant Current
Warranty 7 Year Guarantee
Downloads

Product Specification Sheet
