Single 4ft 32W DALI CCT Adjustable Batten

£5799
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
30 Day Returns
Flexible payment options

CCT adjustable LED batten range constructed from steel and polycarbonate offers ultra high efficiency utilising latest LED chip technology. Conduit fixing points ensure ideal replacements for conventional fluorescent fixtures, offering long life and low maintenance. Even light distribution and push-fit loop in-loop out terminals with hinged gear tray for no hassle one step fast and simple installation.

  • CCT adjustable (3000K, 4000K, 5700K)
  • DALI control gear for connection into simple room or networked building control system
  • Push dimm technology
  • High efficiency
  • Rear and end conduit fixings
  • Hinged gear tray
  • Push-fit loop in-loop out connectors
  • Simple one step installation
Length 1225 mm
Width 61 mm
Projection 71 mm
Construction Pressed steel
Construction 2 & polycarbonate
Finish White
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Diffuser Opal
Lamp Technology LED
L70B50 60000
Energy Rating (Class) post 2021 SLR D
Beam Angle 105
CCT 3000/4000/5700 K
Light Colour CCT
Lumens 3790/4480/4120 lm
Lumens (Light Source only) 4970 lm
Wattage 32
Efficacy 157.16 lm/W
CRI >85
Driver Type DALI
Warranty 5
Have a question?
We're here to help
Call Us

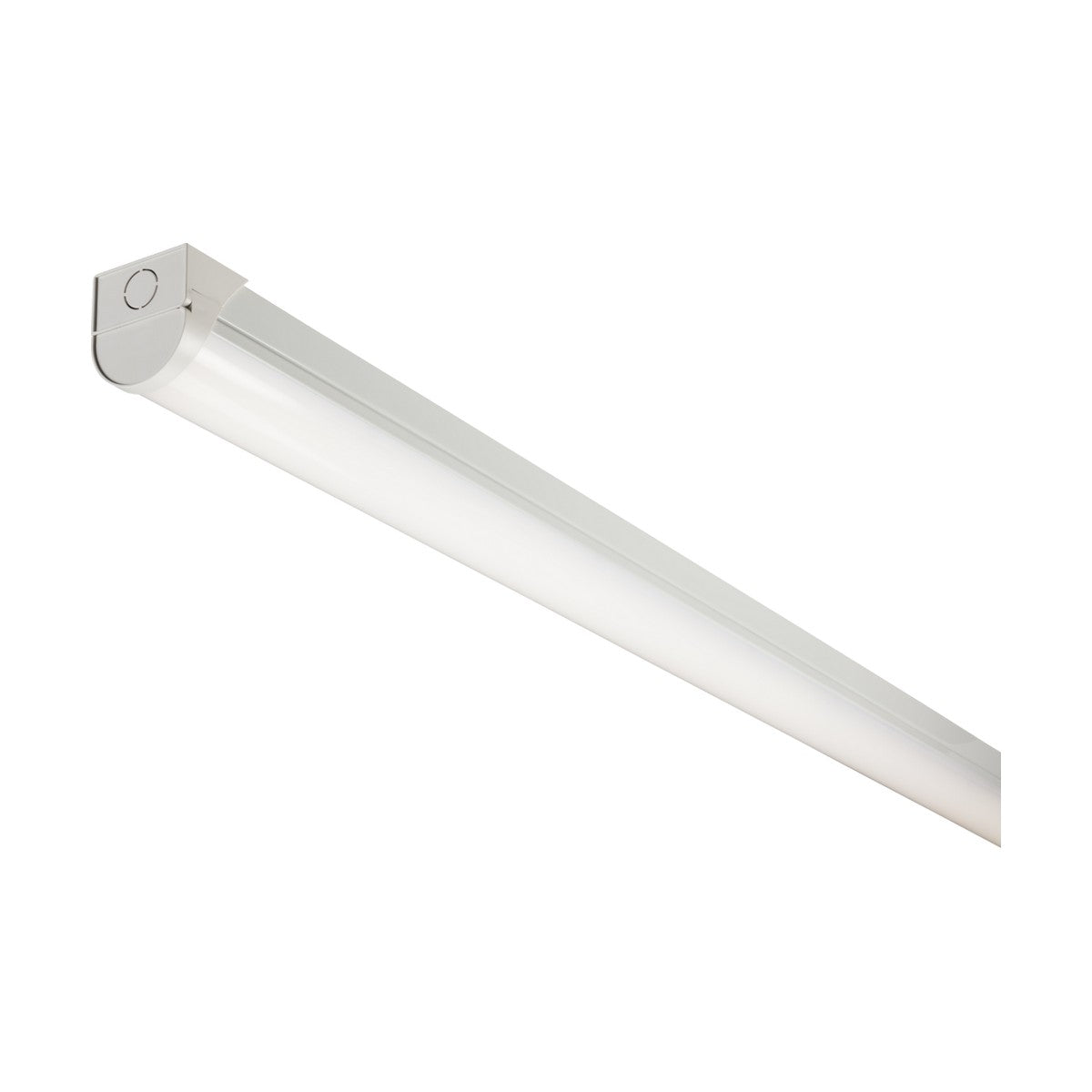

Product Description: The Single 4ft 32W DALI CCT Adjustable Batten is a sleek, modern lighting fixture with a slim, elongated rectangular design that delivers a soft, even glow. It includes DALI control gear for precise lighting adjustments and can be mounted on either the ceiling or wall.
