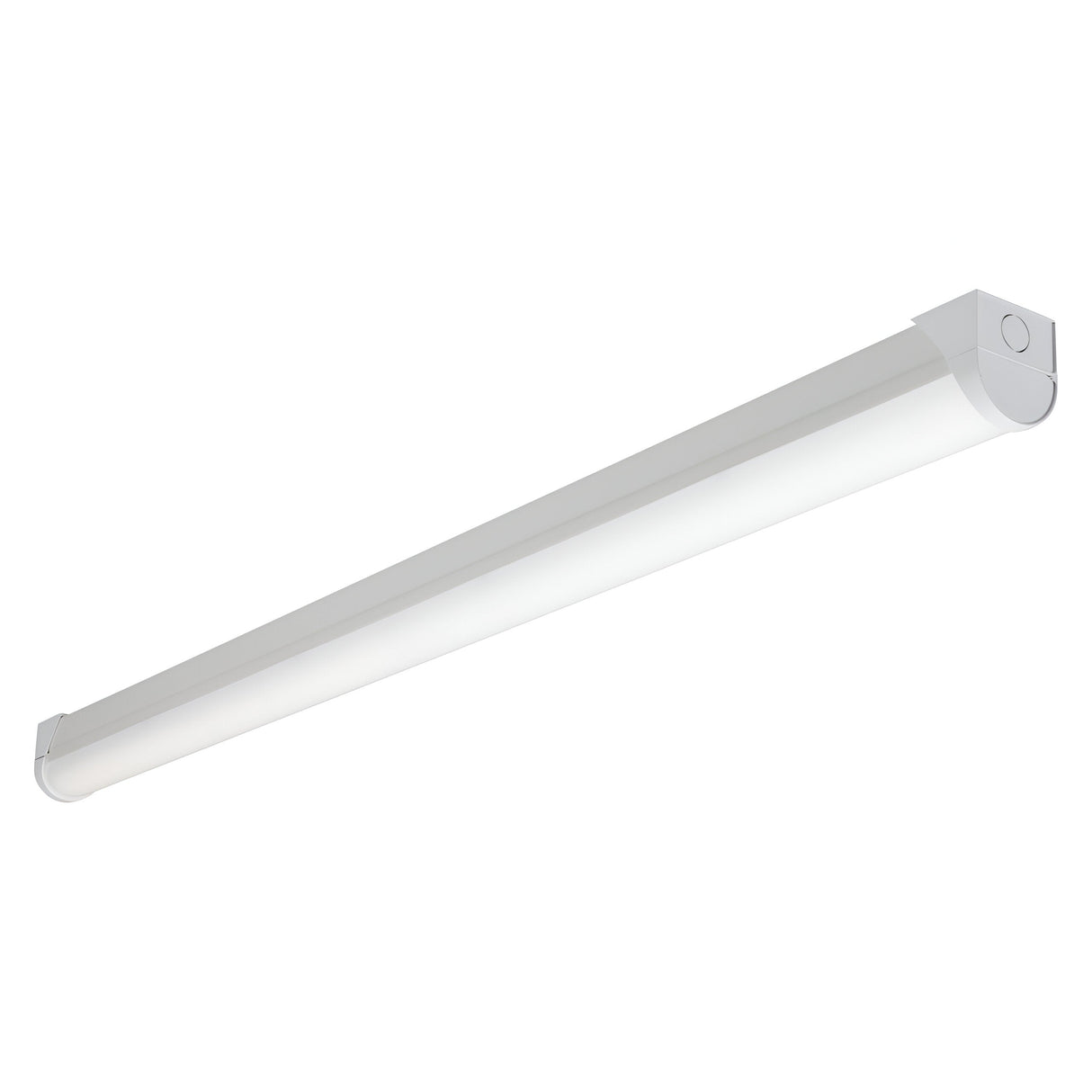

Single 4ft 20W Modular LED Batten 4000K

£1799
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Compact yet efficient, this modular batten delivers 2,800lm at 4000K and suits smaller installations where space or lumen requirement is moderate. Its adaptable design enables use in corridors, changing rooms, or secondary access routes.

Despite its smaller output, it retains all the modular features of the wider range—allowing microwave sensing and emergency kit integration. Rear and end conduit entries, BESA spacing, and hinged tray design simplify wiring and maintenance.

  • Suits low-to-mid use spaces
  • Up to 140lm/W using efficient LED tech
  • Rear/end conduit compatibility
  • Hinged gear tray with push-fit terminals
  • Supports modular upgrades (MODMWS / MODEMKIT)
  • 4000K output delivering 2,800lm
Specification
Length 1225mm
Width 61mm
Projection 70mm
Construction Pressed steel & polycarbonate
Finish White
IP Rating IP20
Class I
Primary Voltage 230V 50Hz
Diffuser Opal
Lamp Technology LED
Lamp Included Yes
Dimmable No
L70B50 100000
Energy Rating (Class) post 2021 SLR D
Beam Angle 120
CCT 4000K
Light Colour Cool White
Lumens 2800lm
Lumens (Light source only) 2850lm
Wattage 20W
Efficacy (Light source) 136lm/W
CRI >80
Driver Type Constant Current
Warranty 5 Year Guarantee
Downloads

Product Specification Sheet
