QTX 4 Stereo Channel Line Level & Instrument Mixer

£3399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Compact mixers with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output. Available as either 4 mono or 4 stereo version with separate volume controls for each input and master output. Powered by 1 x 9V battery or optional 12Vdc adaptor

  • Available in mono or stereo versions
  • Requires 9V (PP3) battery or 12Vdc power adaptor
Specification
Battery 9V battery (PP3 - not supplied)
Power adaptor 12Vdc, 200mA (optional)
Output level +4dB (+8dB max.)
Input impedance 20k Ohms
Output impedance 600 Ohms
Dimensions 150 x 108 x 64mm
Inputs 8 x 6.3mm jack
Outputs 2 x 6.3mm jack
Weight 621g (no battery)
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

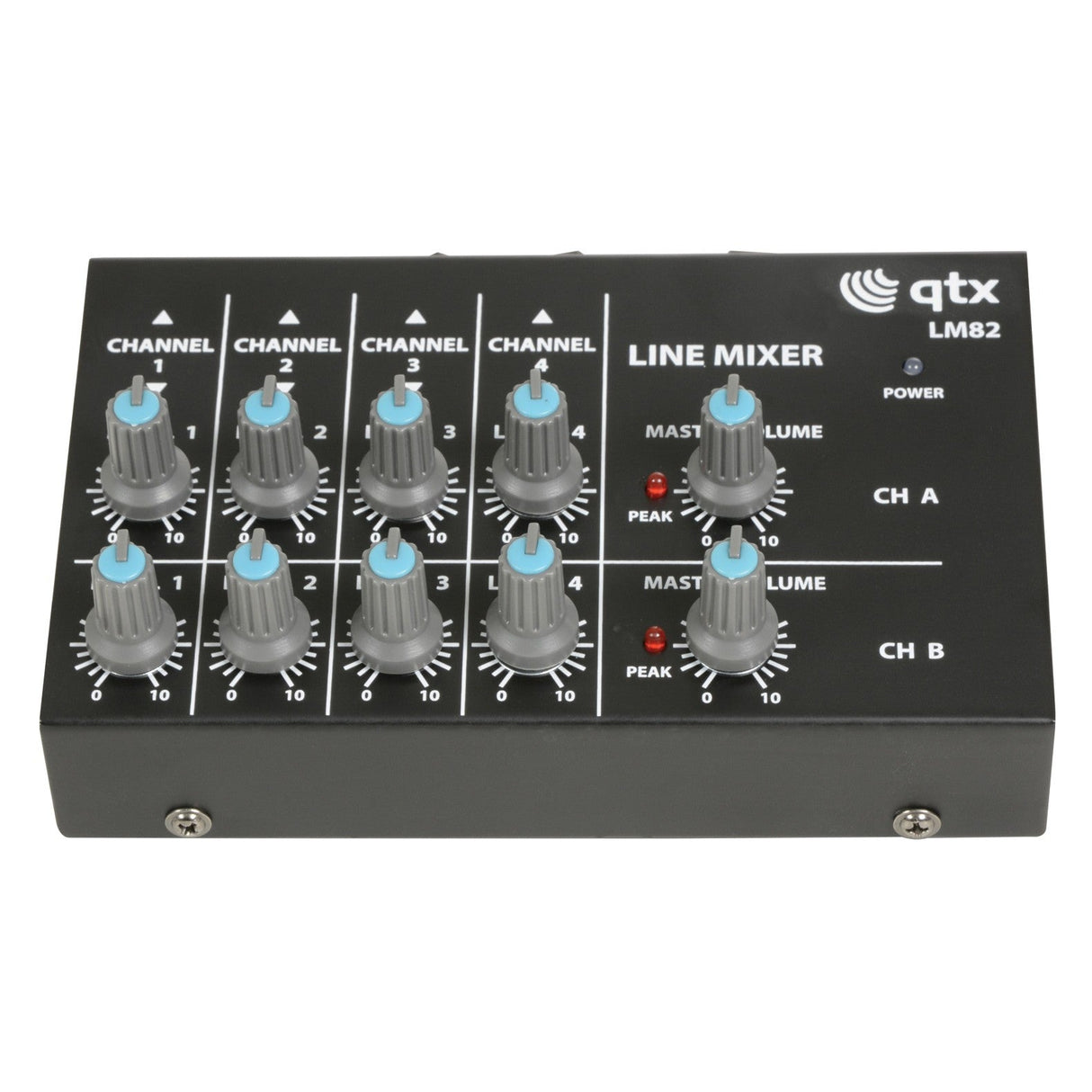

    The QTX 4 Stereo Channel Line Level & Instrument Mixer, a compact audio mixer, features eight blue and gray dials for adjusting four channels and two master volumes. Equipped with high impedance jack inputs and a power indicator light, this stereo version is both versatile and efficient.
