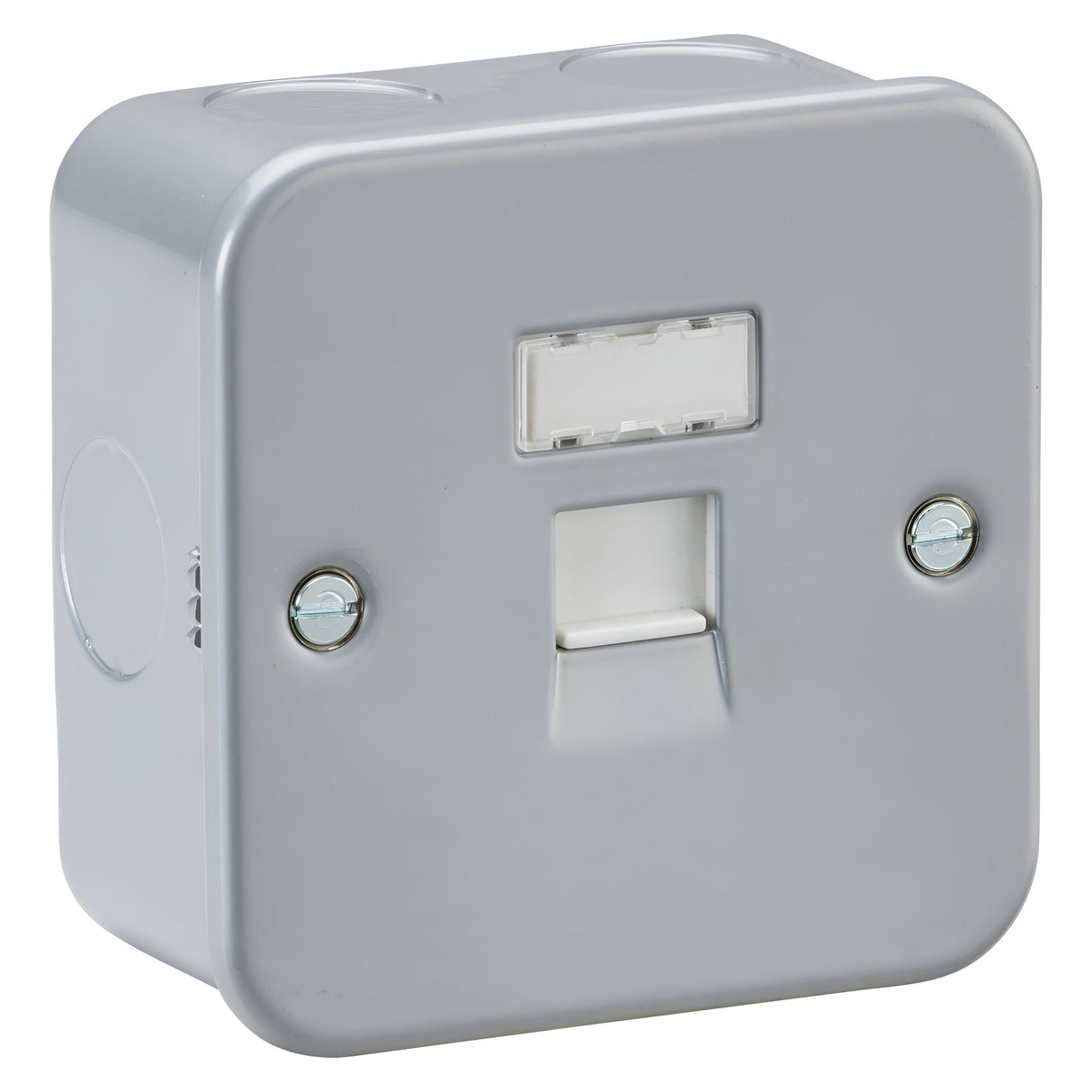

Metal Clad UTP CAT6a RJ45 Network Outlet - Grey

£1099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

A heavy-duty CAT6a outlet designed for commercial-grade performance in harsh environments. Built from powder-coated steel and supplied with a back box, this unit is ideal for offices, data points, and smart home installations.

Features

  • Single shuttered CAT6a unshielded RJ45 outlet
  • Conforms to ANSI/TIA/EIA 568B.2-10
  • Insulation resistance: <500 mΩ at 100V DC
  • Withstand voltage: 1000V DC / 700V AC RMS, 60Hz for 1 min
  • Operating temperature: -10°C to 60°C
  • Compatible with 16–20 AWG wire gauges

Benefits

  • Supports 10 Gbps speeds over 100m (500 MHz bandwidth)
  • Backward compatible with CAT6 and CAT5e (performance varies)
  • Reduced crosstalk for cleaner signal transmission
  • Supports enhanced PoE applications, ideal for smart devices in hard-to-reach locations
  • Best used with certified CAT6a cabling for optimal performance
Specification
Height 81.2mm
Width 81.2mm
Depth 44.4mm
Construction SPCC Steel
Finish Powder-coated Silver/Grey
IP Rating IP20
Earth Terminal Yes
Terminal IDC
Warranty 2 Year Guarantee
Downloads

Product Specification Sheet
