Fire-Rated Tilt Downlight - White

£1099
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

IP20 Die-Cast GU10 Tilt Insulation Compatible Fire-Rated Downlight, White.

GU10 230V 50W max lamp. Twist and lock front ring for easy lamp replacement. Compatible with standard GU10 Halogen and ideal for all retrofit LED and CFL lamps up to 60mm in length. Electrical termination via 10 Amp connector block within secure enclosure comes with cord grip. Dimmable. Spring clip fixings with a recommended maximum ceiling thickness of 30mm.

Tested to:

  • BS476 Part 21 & 23
  • Building Regulations Part B (Fire Safety) compliant
  • Fire-rated: 30/60/90min Solid timber, 30min Web-joist and 30min I-joist (Staircraft)
Specification
Diameter 101 mm
Height 84 mm
Projection 5 mm
Recessed Depth 105 mm
Cut-out Diameter 84 mm
Tilt 15 degrees
Construction Pressed steel
Construction 2 & aluminium
Finish White
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Lamp Technology Halogen / LED Compatible
Lamp Base GU10
Lamp Included No
Dimmable Lamp dependent
Max. Wattage 50 W
Warranty 1
Downloads

Product Specification Sheet

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

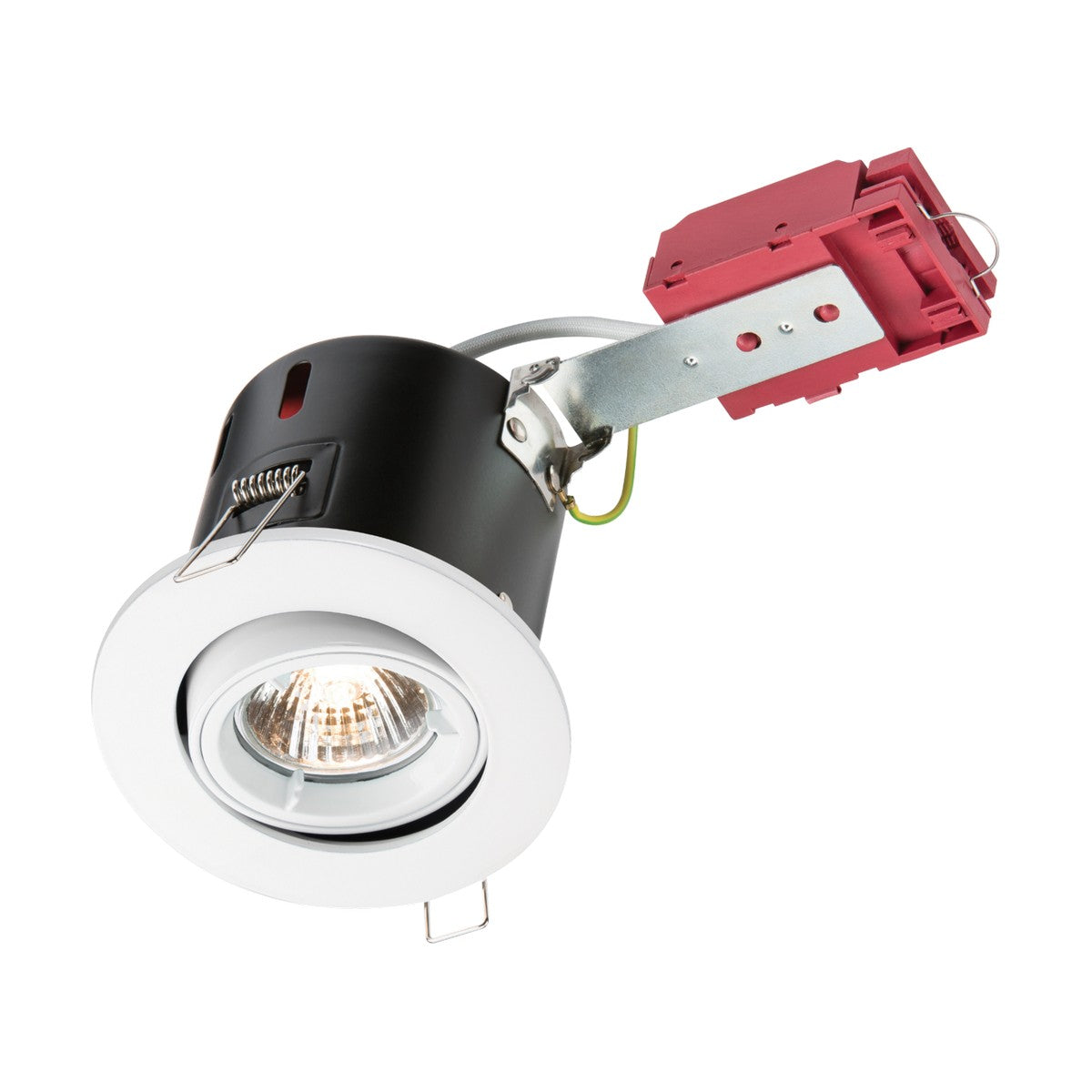

    The Fire-Rated Tilt Downlight - White boasts a recessed ceiling fixture equipped with a white trim, black interior housing, and a red electrical box. The GU10 bulb is visible within the housing, and it comes with a metallic bracket to facilitate easy installation.
