Fire-Rated Shower Downlight - Brass

£1299
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

IP65 Die-Cast GU10 Insulation Compatible Downlight, Brass.

GU10 35W max. Class 1, must be earthed. Twist and lock front ring to secure lamp. Compatible with standard GU10 Halogen and ideal for true retrofit LED and CFL lamps. Electrical termination via 10 Amp connector block within secure enclosure comes with cord grip. Dimmable. Spring clip fixings with a recommended maximum ceiling thickness of 30mm.

Tested to:

  • BS476 Part 21 & 23
  • Building Regulations Part B (Fire Safety) compliant
  • Fire-rated: 30/60/90min Solid timber, 30min Web-joist and 30min I-joist (Staircraft)
Specification
Diameter 87 mm
Height 92 mm
Projection 7 mm
Recessed Depth 118 mm
Cut-out Diameter 70 mm
Construction Pressed steel
Construction 2 & aluminium
Finish Brass
Class I
IP Rating IP65 (IP20 from above)
Primary Voltage 230V 50Hz
Lamp Technology Halogen / LED Compatible
Lamp Base GU10
Lamp Included No
Dimmable Lamp dependent
Max. Wattage 35 W
Warranty 1
Downloads

Product Specification Sheet

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

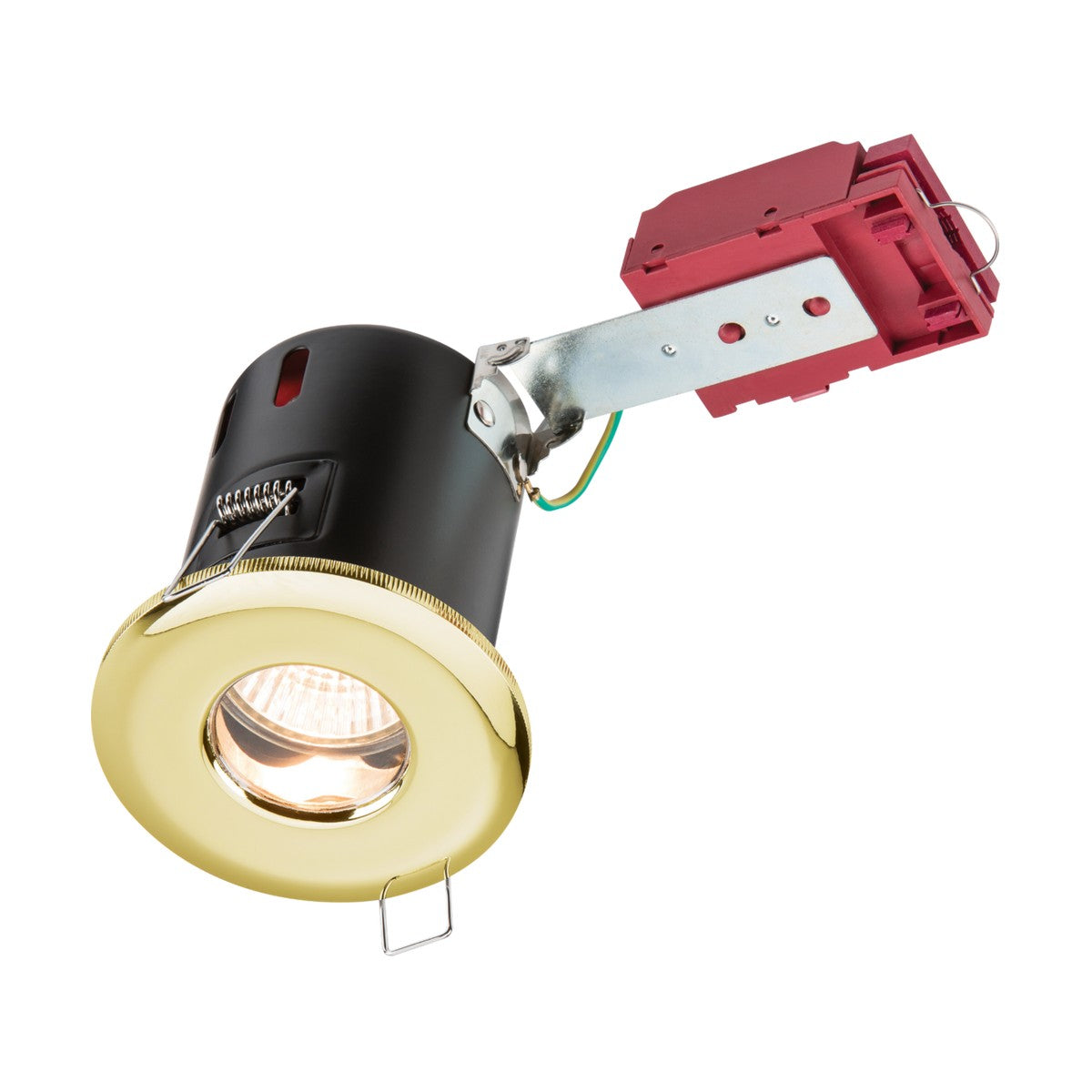

    The Fire-Rated Shower Downlight - Brass features a stylish brass trim and black housing, an adjustable GU10 downlight holder, and a red electrical connector on top. Its modern and compact design is compatible with insulation for enhanced safety.
