Citronic H2400 Hybrid Amplifier 2x900W @ 4ohm
- Description
- Specification
- Downloads

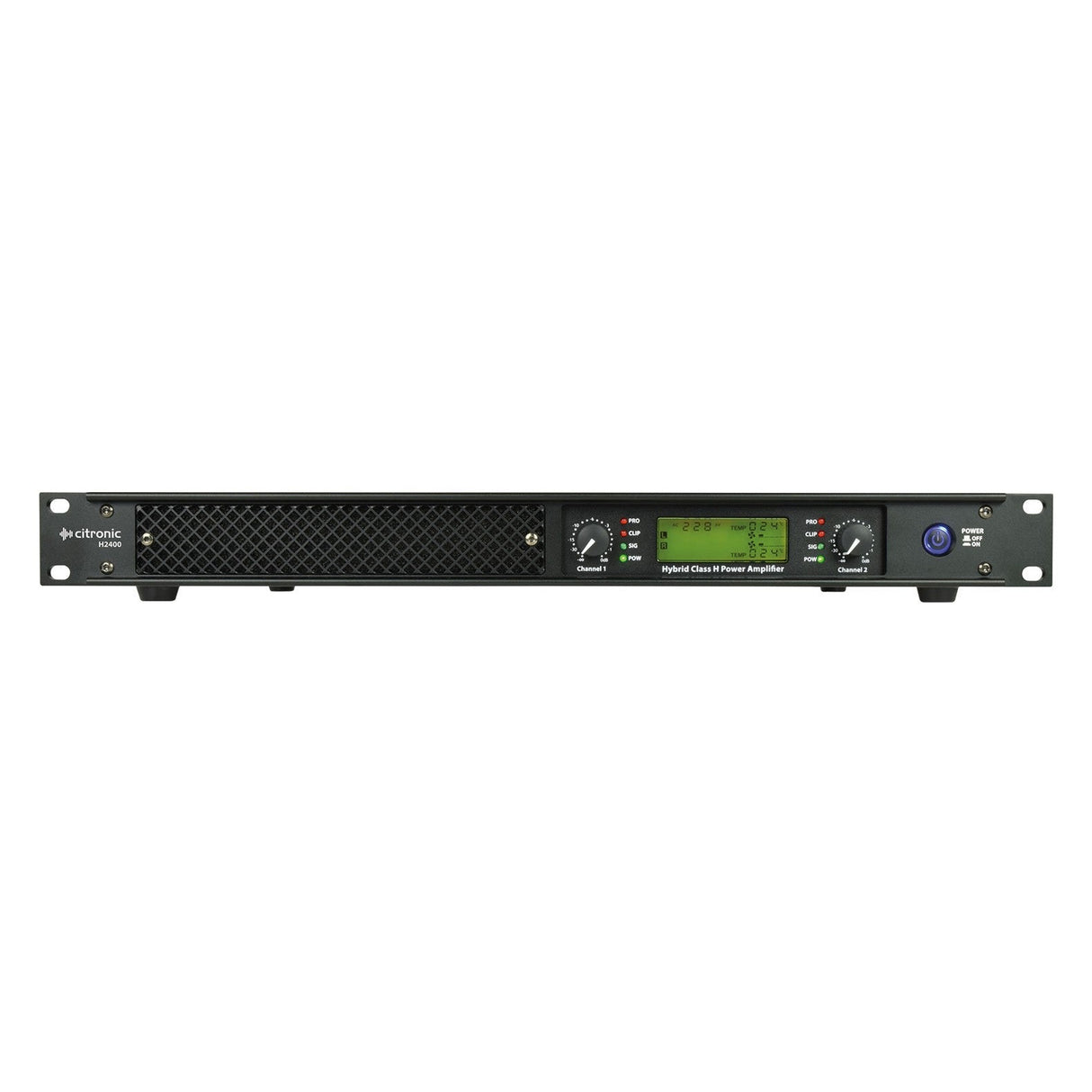

The Citronic H2400 hybrid Class-H amplifier provides 2 x 900W RMS at 4 Ohms, 2 x 600W RMS at 8 Ohms, and up to 2400W bridged. Using digitally controlled power with a Class-H output stage, it delivers both efficiency and rock-solid stability. A backlit LCD constantly displays supply voltage, internal temperature, and output levels, while three switchable sensitivity levels allow flexible setup. The amplifier supports stereo, parallel, and bridge operation, with a selectable 120Hz low-pass filter for subwoofers to simplify system design. Advanced internal protection includes short/open circuit, RF, DC fault, thermal safety, on/off muting, and inrush limiting. Its fully balanced signal path ensures maximum sound integrity, while high damping factor control provides accurate driver performance. Housed in a lightweight 1U rackmount design, the H2400 is perfect for professional sound reinforcement where high output and reliability are essential.
- Hybrid class-H circuit design
- Digitally controlled and monitored power section
- Switchable 120Hz low-pass crossover
- Backlit LCD status display
- Full internal thermal and overload protection
- Stable down to 2 Ohms (4 Ohms bridged)
Power supply | 200-240Vac, 50Hz (IEC) |
Amplifier : construction | Hybrid Class-H |
Protection | Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush |
Frequency response | 20Hz-20KHz ±0.5dB |
THD +N | 0.2% |
S/N ratio | -95dB |
Damping factor | >700 |
Input sensitivity | 1.0V - 1.4V - 2.0V switchable |
Input impedance | 20K? (balanced),10K? (unbalanced) |
Crossover | Switchable full range or fixed 120Hz low-pass filter |
Dimensions | 483 x 361 x 44 mm (1U) |
Fuse | T8AL 250V |
Power rms @ 8 Ohms | 2 x 600W |
Power rms @ 4 Ohms | 2 x 900W |
Power rms @ 2 Ohms | 2 x 1200W (40ms burst 1kHz sine) |
Power rms bridge @ 8 Ohms | 1800W |
Power rms bridge @ 4 Ohms | 2400W (40ms burst 1kHz sine) |
Weight | 7.0kg |
