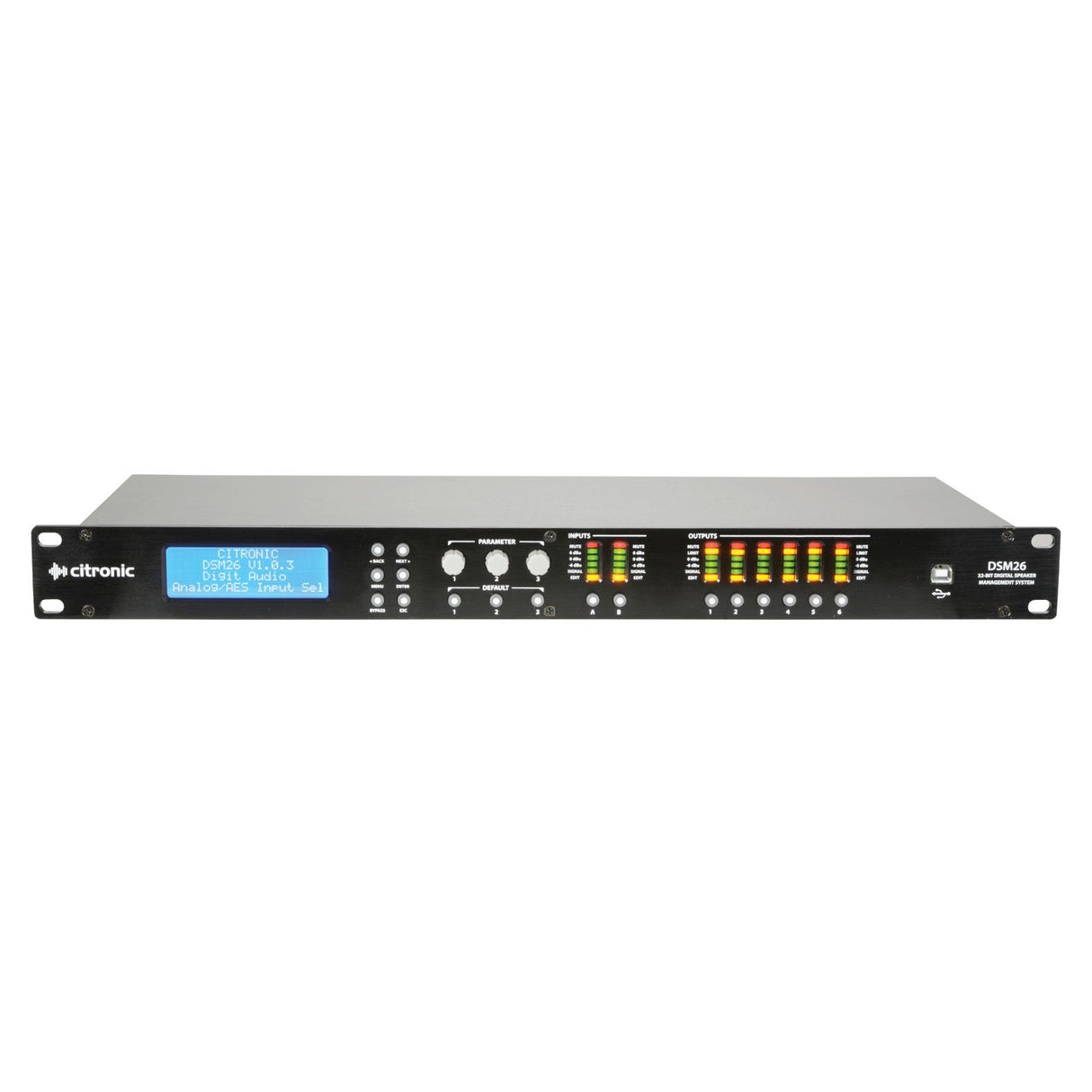

Citronic DSM26 Speaker Management System

£42299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Digital speaker management systems which incorporate crossovers, EQ and limiters for multi-amplifier and speaker setups. These units enable the sound system designer to accurately control the inputs for each power amplifier, providing an ideal matched output suited to each speaker enclosure and its surroundings. A 96kHz 32-bit floating point DSP processor has been utilised to ensure professional quality resolution, controlled either directly via the front panel or USB using the included software. Control can also be distributed through LAN by connecting a local network to the rear panel RJ45 connector, enabling remote speaker setups throughout a building. A high quality speaker management system, which is straightforward enough to use for basic PA systems, yet with enough features to satisfy the most demanding sound reinforcement applications.

  • Inputs: 8-band shelving or parametric EQ
  • Inputs: Phase and Gain correction
  • Outputs: Crossover types: L-R / Bessel / Butterworth
  • Outputs: 8-band parametric EQ
  • Outputs: Adjustable Limiter
  • All inputs/outputs independently controlled
  • Network connectivity for remote control
  • USB interface with PC software included
  • Software included for Win XP (PIII 500, 128MB RAM) or higher
Specification
Power supply 115/230Vac, 50/60Hz (IEC)
Fuse T315mA
Filter type Linkwitz-Riley; Bessel; Butterworth.
PC Com port USB and LAN (RJ45)
CMRR 65dB (50Hz-10kHz)
Input/output polarity In phase (+) or reverse (-)
Input EQ 8-band parametric EQ
Input Noise Gate -120dBu to +10dBu
Processor 96kHz, 32-bit floating point DSP
Mute Any input or output channel
Limiter 1 per output (adjustable)
Output EQ 8-band: Hi/Lo-shelf or Para
Crossover HPF + LPF fully programmable per output
Delay 0-650ms per output
Frequency response 20Hz-20kHz
Input impedance : balanced >10k Ohms
Output impedance : balanced <60 Ohms
Power consumption <25W
Dimensions 482 x 44 x 220mm
Weight 3.19kg
Inputs 2 balanced XLR or AES digital
Outputs 6 balanced XLR
Downloads

Product Manual
