Citronic CSM-8 Mixer With USB/Bluetooth Player

£9699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • Integral USB multi-format audio player
  • BT wireless connectivity
  • Supplied with DC power adaptor
  • Built in record function
  • Digital delay effect for vocals or instruments
  • Individually switchable +48V phantom power
Specification
Power supply 5Vdc 1A (adaptor included)
Output Left + Right balanced XLR
Phantom power +48V individually switchable (XLR inputs only)
Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version 2.1 + EDR
Power consumption max. 5W
Max. output level 3Vrms
Dynamic range 102dB
Frequency response 20Hz - 20kHz (±0.5B)
THD +N <0.03% @ 1kHz
Crosstalk : stereo 92dB
Gain -14 to +40dB
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Audio source Internal USB player/recorder & BT receiver
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Output impedance 120 Ohms
Inputs 6 x combo XLR/jack + stereo jack
Dimensions 274 x 165 x 66mm
Weight 1.45kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

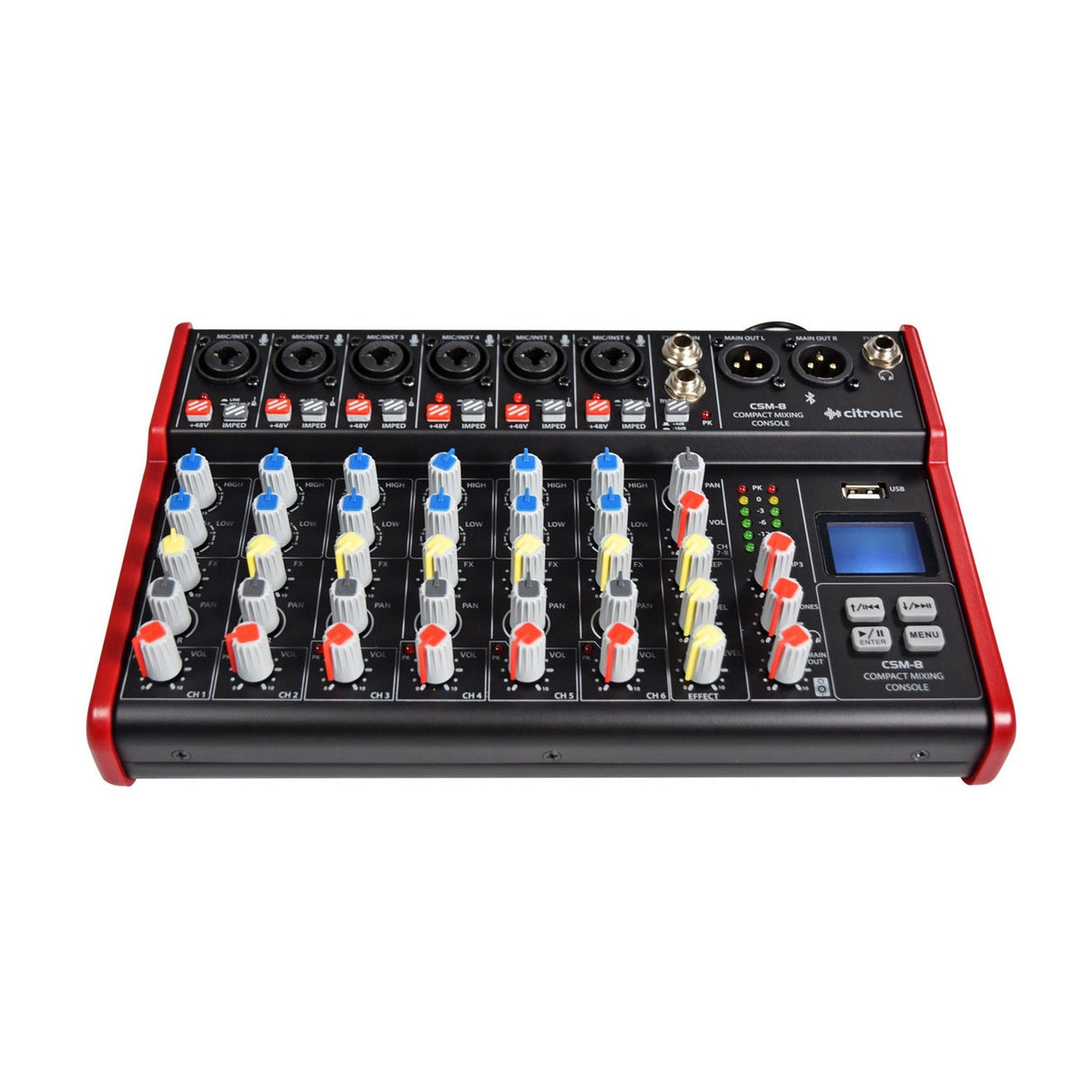

    The Citronic CSM-8 Mixer With USB/Bluetooth Player is an eight-channel audio mixer equipped with a digital delay effect. It features various red, white, blue, and yellow knobs and switches, along with input jacks, sliders, microphone ports, and phantom power to control audio levels in sound production.
