Citronic CSL-14 Mixing Console 14 Input

£21399
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • IEC mains powered
  • Balanced main outputs
Specification
Power supply 230Vac, 50Hz (IEC)
Phantom power +48V (XLR inputs)
Power consumption 25W
Fuse T1AL
Input level +24dBu
Output level : line +26dBu
Frequency response 20Hz-30kHz (0.5dB)
CMRR >74dB (mic 1kHz)
THD +N <0.01% (channel to main out)
Crosstalk >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
EQ: high 12kHz ±15dB shelving
EQ: mid 2.5kHz ±15dB band pass
EQ: low 80Hz ±15dB shelving
Input impedance : mic (balanced) 2k Ohms
Input impedance : line (balanced) 10k Ohms
Sensitivity : mic -60 to +14dBu
Sensitivity : line -40 to +14dBu
2-track 2 x RCA in & out (-2dBu)
Effects 16 program DSP (24-bit sigma-delta, 40kHz)
Output impedance <75 Ohms
Headphone output 6.3mm jack, 30-600 Ohms
Output connections Main L+R balanced XLR
Inputs : Mic/Line 10 x balanced XLRF/TRS jack
Dimensions 475 x 320 x 107mm
Weight 4.5kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

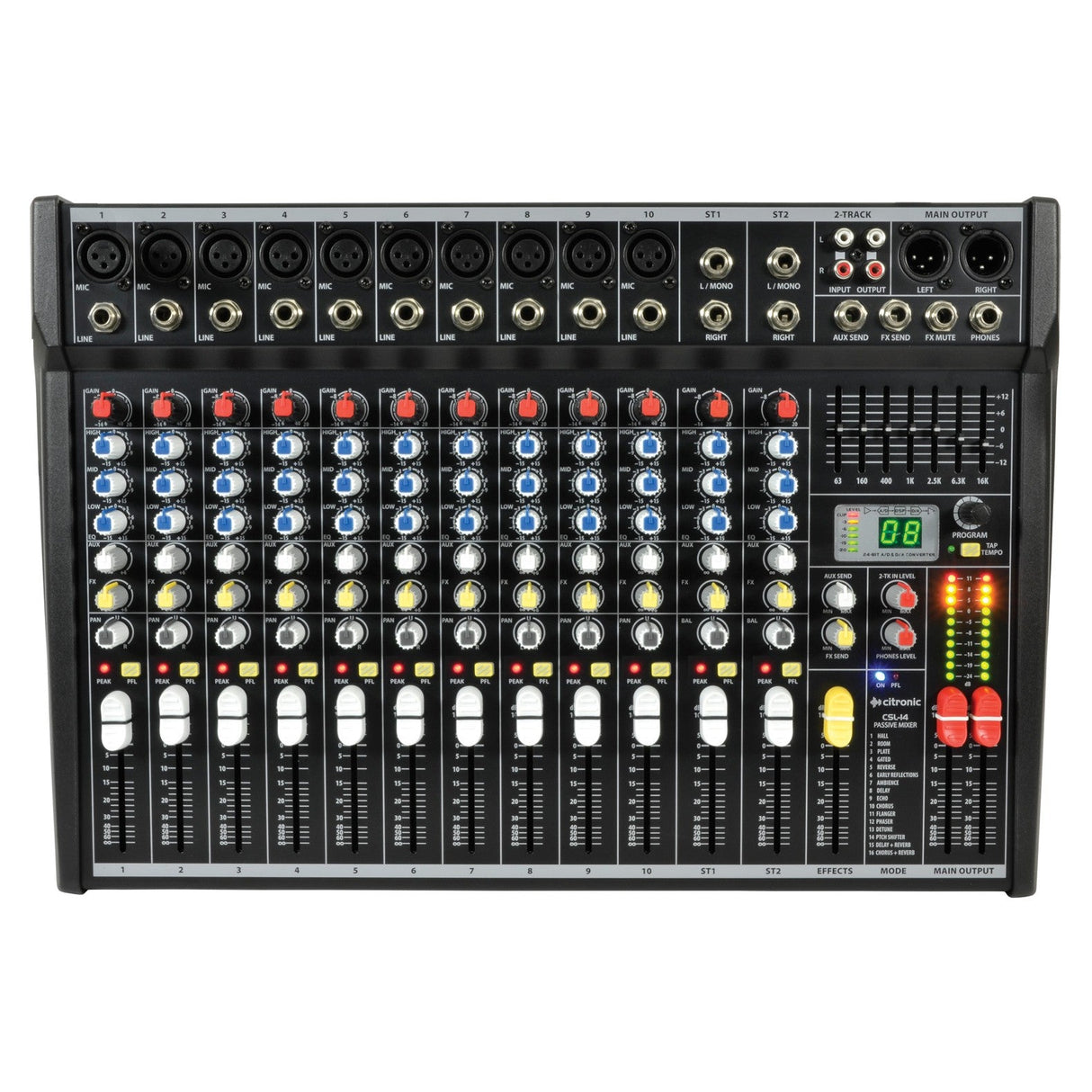

    The Citronic CSL-14 Mixing Console 14 Input features multiple channels, each equipped with knobs and faders for precise volume and sound adjustments. It includes DSP effects and various input and output ports located at the top. LED meters on the right side display sound levels for accurate control.
