Kanlux BLINGO U34W 4080 60NW — 34W Recessed LED Panel 595x595mm 4000K

£2025
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Kanlux BLINGO U34W 4080 60NW is a slim, square recessed LED panel designed for commercial and office ceilings. Delivering 4,080 lm at 34 W and a neutral white 4000 K colour temperature, it offers high luminous efficacy (120 lm/W) and a microprismatic diffuser for uniform, glare-controlled illumination (UGR <19).

This BLINGO v2 panel features an integrated power supply and a junction box with a quick connector to allow pass-through connections, speeding up installation and enabling chain wiring of multiple panels. For surface mounting, the panel can be fitted into a compatible Kanlux ADTR frame. The grooved frame improves appearance and thermal performance compared with earlier BLINGO versions.

Built from steel with a plastic lampshade and rated IP20, the fixture is intended for recessed ceiling installation in dry indoor environments. It is non-dimmable, has a service life of 50,000 hours (L70B50) and is supplied with a 5-year warranty under the terms of the warranty statement.

Specification
Brand Kanlux
Model BLINGO U34W 4080 60NW (SKU 37173)
Warranty 5 years
Mounting Recessed mount in ceiling (surface-mountable with Kanlux ADTR frame)
Shape Square

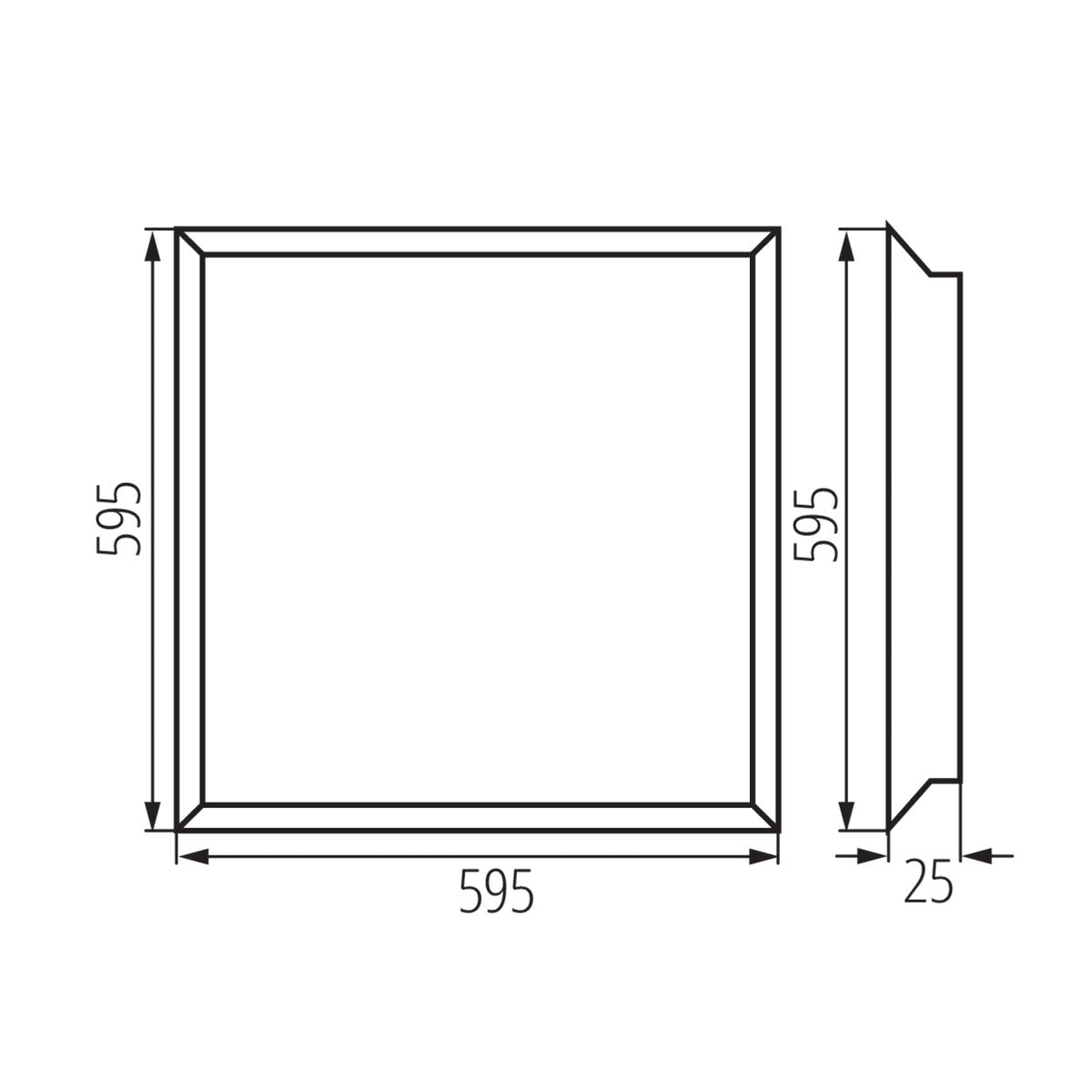

Dimensions (H×W×L) 25 × 595 × 595 mm
Weight 1.594 kg
Enclosure material Steel
Lampshade material Plastic (microprismatic)
Panel/frame material Steel
Colour White
Rated voltage 220–240 V AC
Rated frequency 50 Hz
Maximum power 34 W
Integrated LED Yes (LED SMD)
Luminous flux 4,080 lm
Luminous efficacy 120 lm/W
Colour temperature 4000 K (neutral white)
Colour-rendering index (Ra) 80
Colour uniformity (SDCM) 6
Power factor 0.92
Beam / lighting angle 90°
UGR <19
Dimmable No

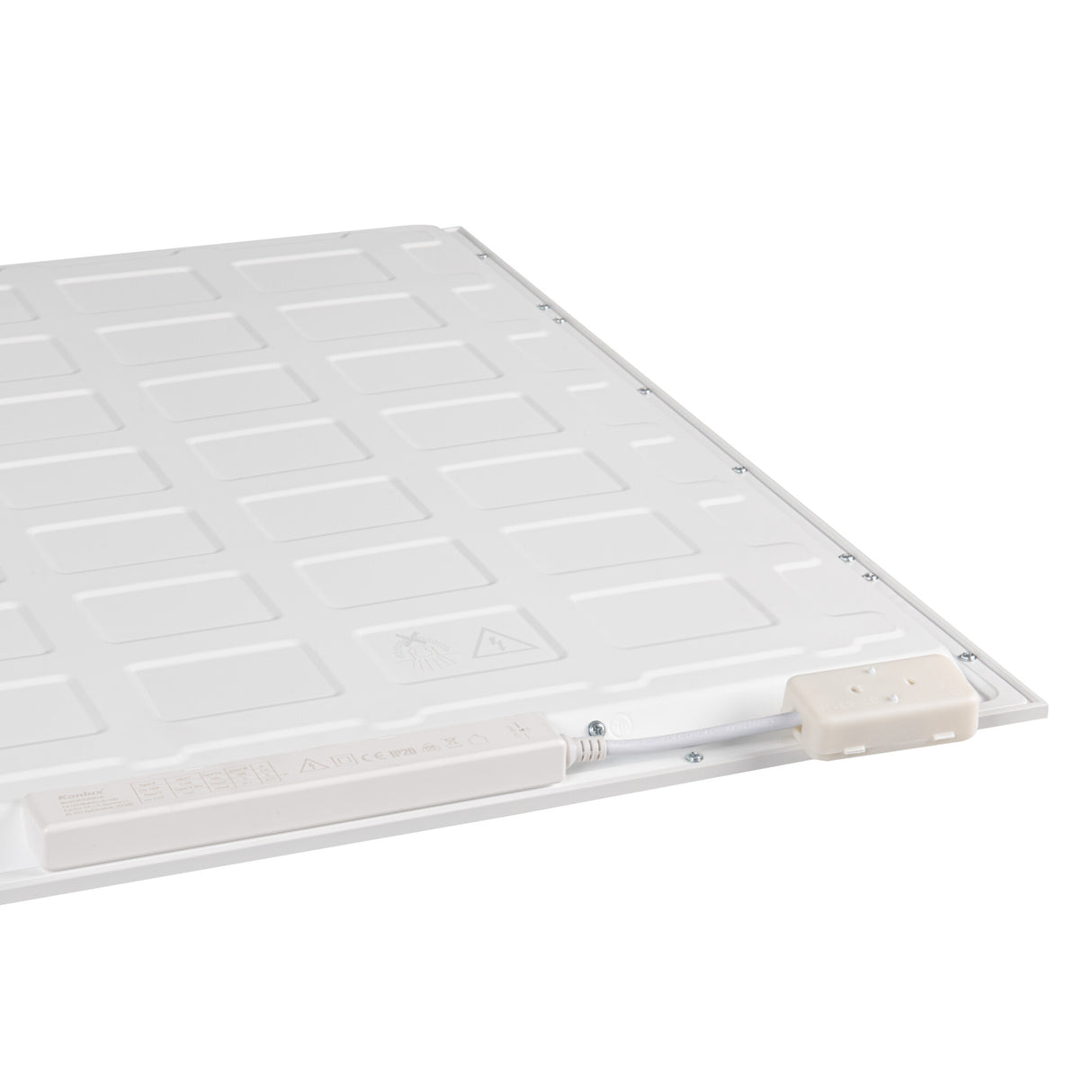

Feeder / connector Junction box with quick connector (pass-through)
Service life 50,000 h (L70B50)
Number of on/off cycles ≥50,000
IP class IP20
Protection class Class I
Operating ambient temperature 5 ÷ 25 °C
Suitable to be covered with insulation No
Range of conductor cross-sections 1–2.5 mm²
Minimum distance from illuminated object 0.5 m
Number of modules 1
Useful luminous flux Φuse Measured in sphere (360°)
Additional information Containing product (CP)
EAN 5905339371737
