Kanlux BLINGO 38W 4560 120NW — Recessed 38W LED Backlit Panel 295x1195mm

£2313
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

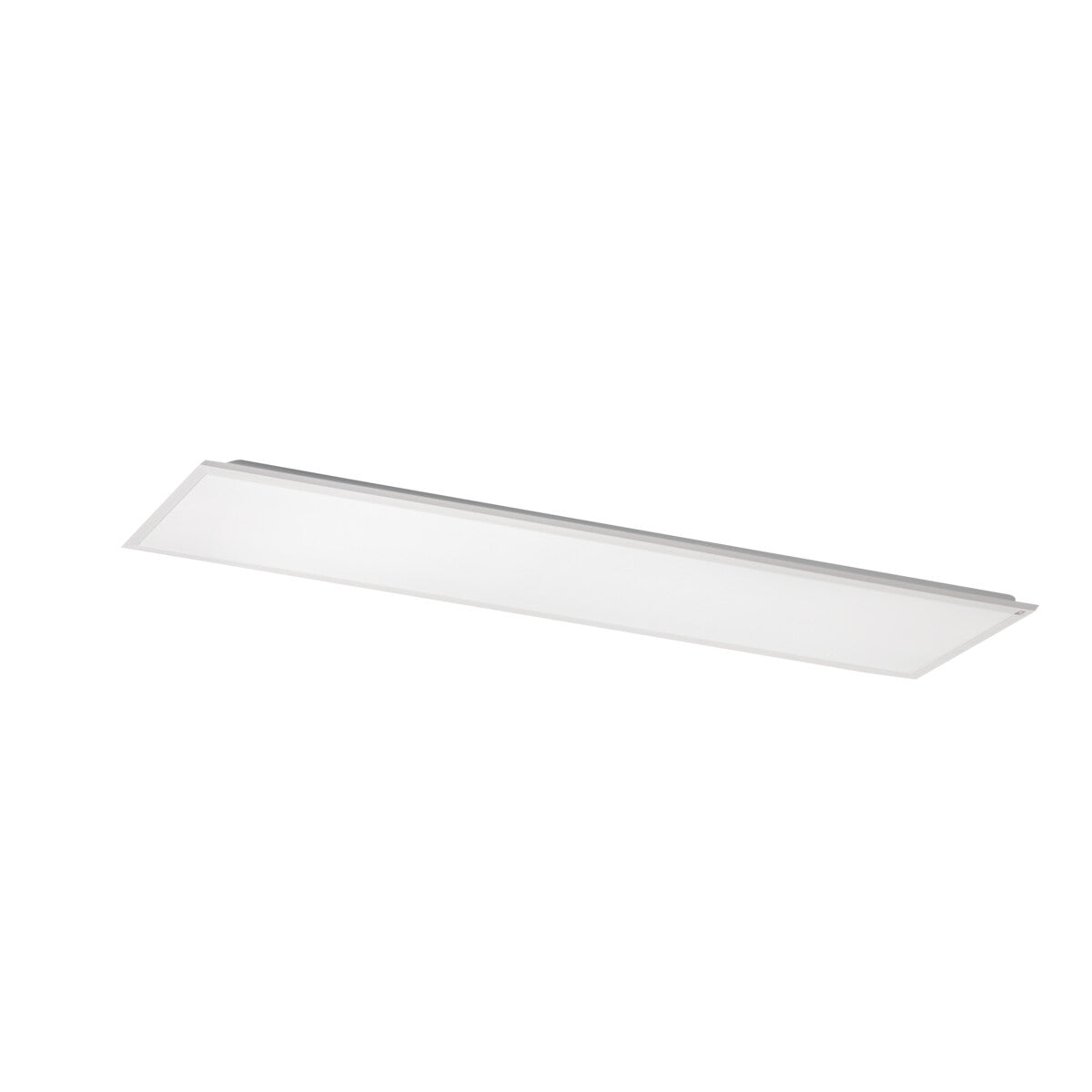

The Kanlux BLINGO 38W 4560 120NW is a recessed backlit LED panel designed for efficient ceiling illumination in commercial and office environments. Delivering 4,560 lm at 120 lm/W and a neutral white 4000 K colour temperature, the panel offers a high luminous efficacy with a uniform light distribution (115° beam angle) and a long rated life of 50,000 hours (L70B50).

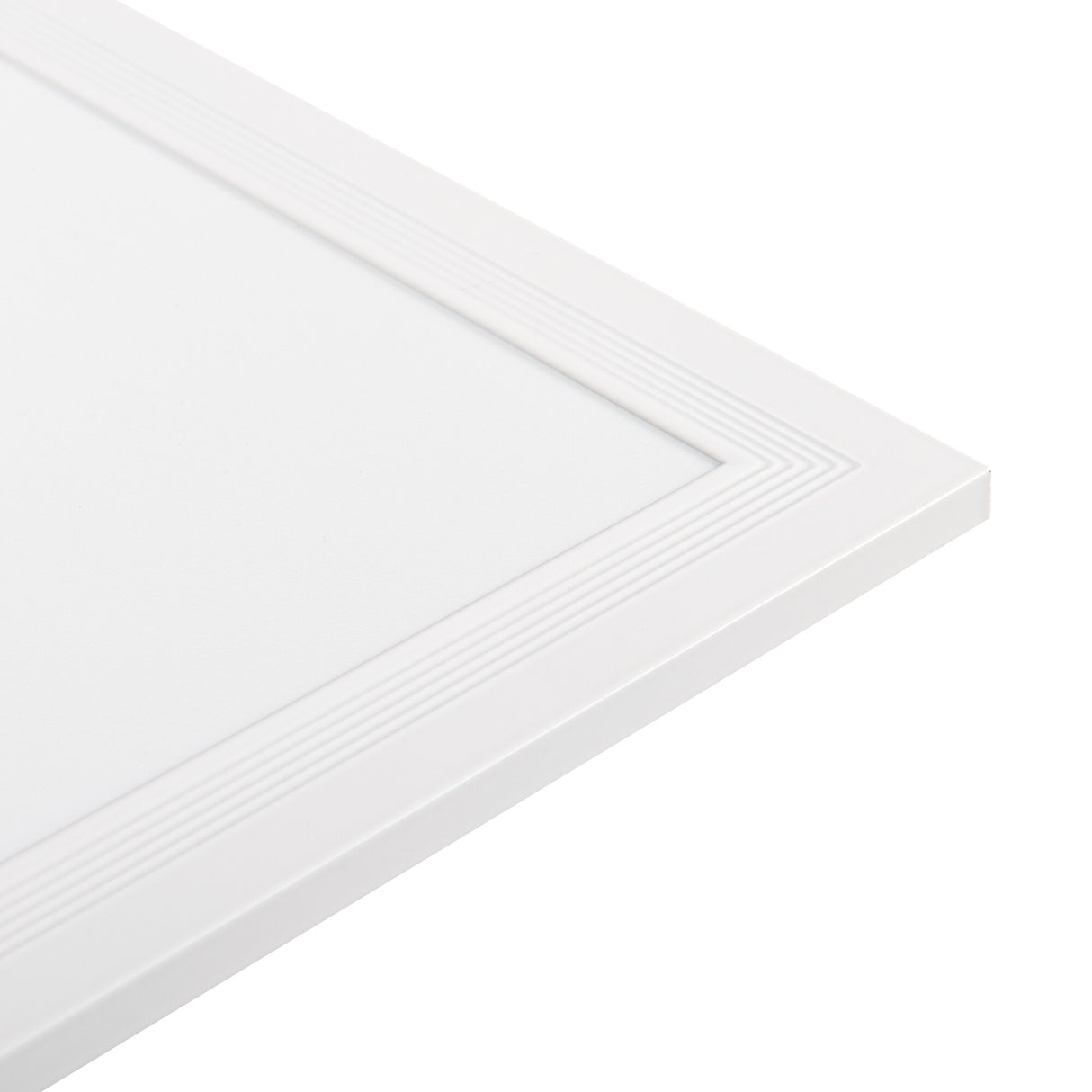

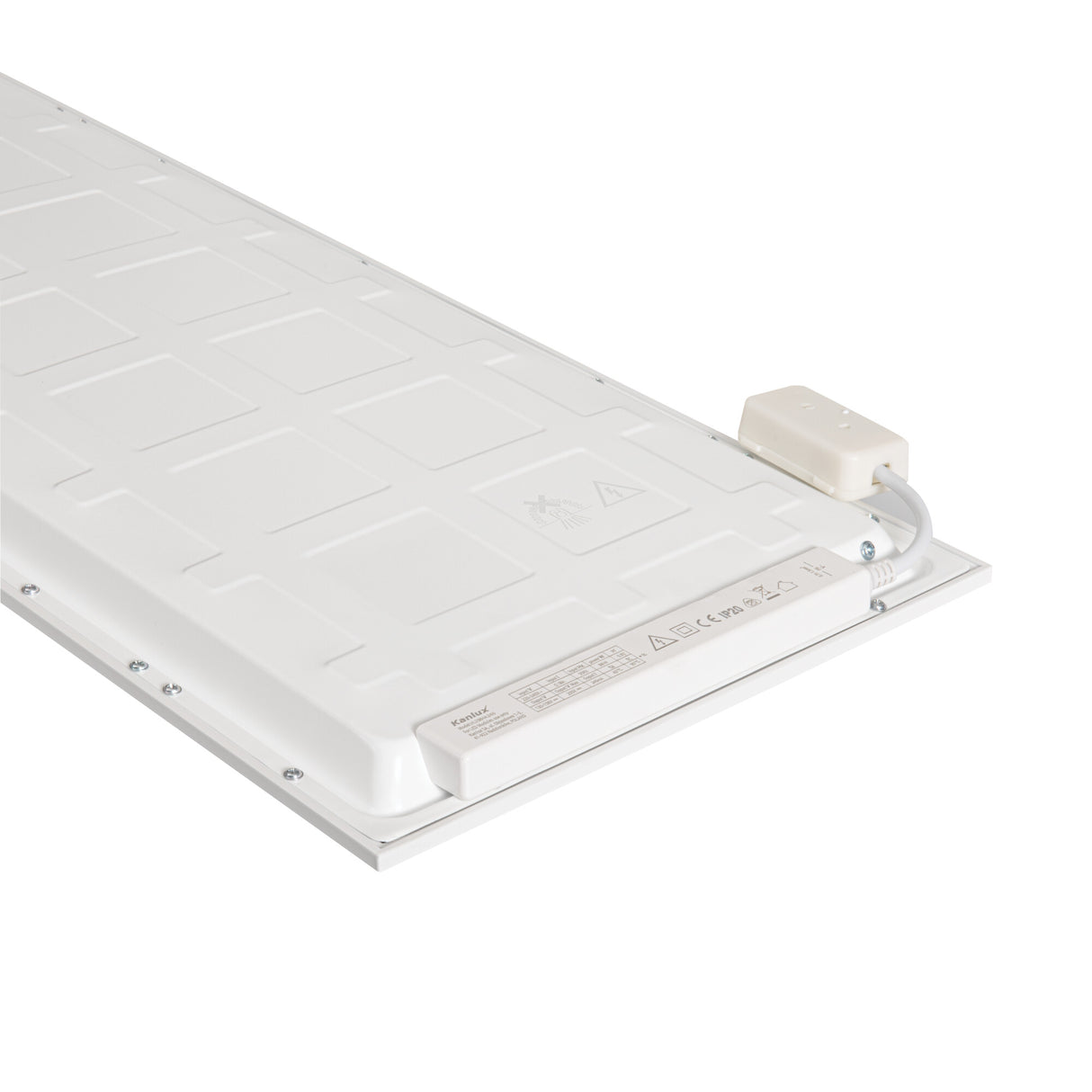

BLINGO LED v2 panels feature an integrated driver and a junction box with a quick connector for fast pass-through connections, speeding up installation and allowing surface mounting in a compatible Kanlux ADTR frame. Constructed with a steel frame and plastic diffuser, the unit is supplied ready for recessed ceiling installation and comes with a 5-year warranty.

Specification
Brand Kanlux
Model BLINGO 38W 4560 120NW (SKU: 37177)
Type Recessed-mounted LED backlit panel
Maximum power 38 W
Luminous flux 4560 lm
Luminous efficacy 120 lm/W
Colour temperature 4000 K (neutral white)
Colour-rendering index (Ra) ≥ 80
Lighting angle 115°
Diode type LED SMD
Integrated LED light source Yes
Dimmable No
Rated voltage 220–240 V AC
Rated frequency 50 Hz
Power factor 0.92
Service life 50,000 h
Number of on/off cycles ≥ 50,000
Luminous flux retention L70B50
Colour uniformity (SDCM) 6
Class of protection Class I
IP rating IP20
Ambient temperature range 5 ÷ 25 °C
Mounting Recessed mount in the ceiling (surface mount possible with Kanlux ADTR frame)
Suitable to be covered with insulation No
Supply-cord type / Feeder Direct connection / feeder included
Range of conductor sections 1–2.5 mm²
Minimum distance from illuminated object 0.5 m
Number of modules 1
Shape Rectangular
Enclosure material Steel
Diffuser / Lampshade material Plastic
Colour White

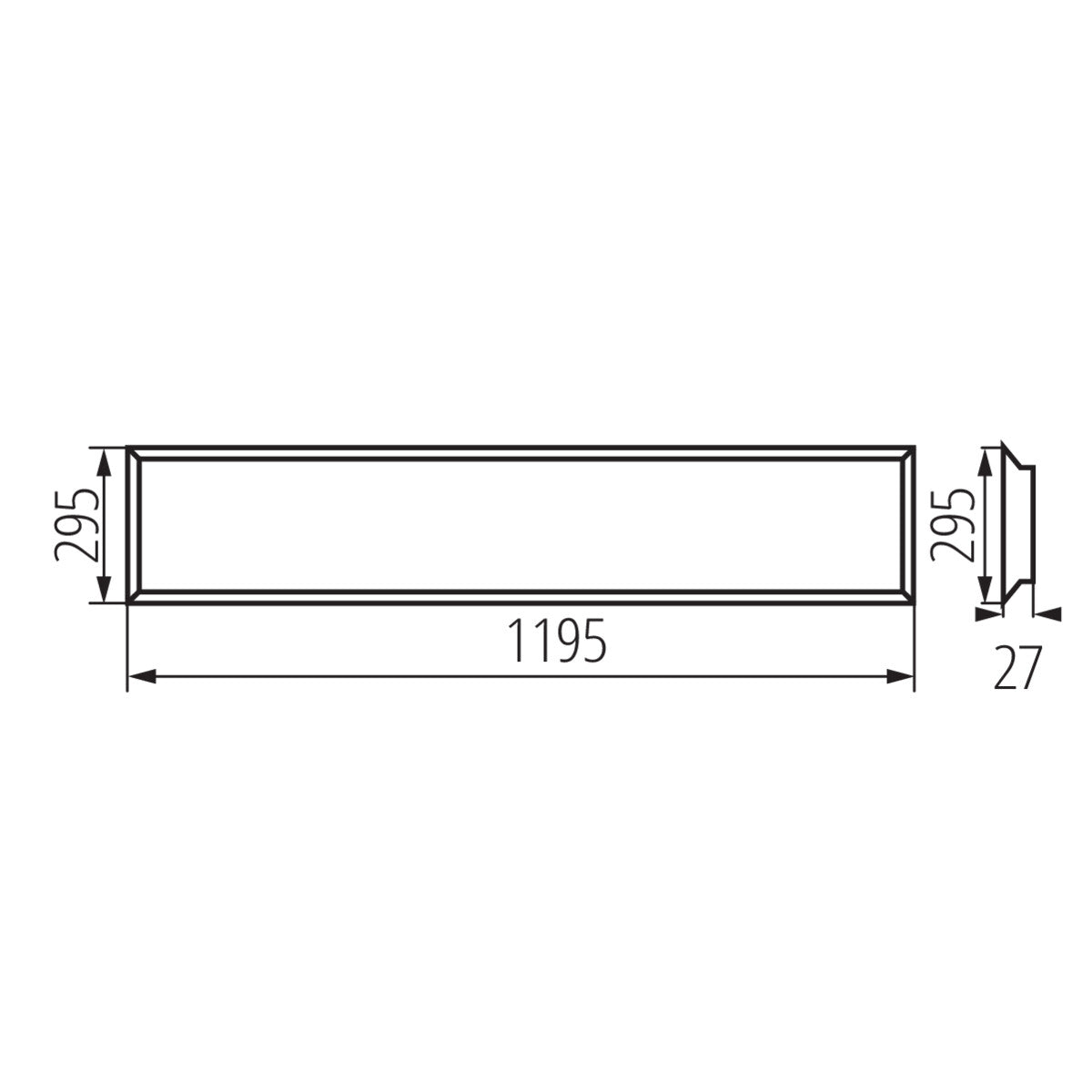

Dimensions (L×W×H) 1195 × 295 × 27 mm
Weight 1.318 kg
Warranty 5 years
EAN 5905339371775
Downloads

Technical documents and photometric files are available from the product downloads on the Kanlux website:
