Kanlux BLINGO 24W 4320 60NW — 595x595mm Recessed LED Panel 4000K

£2722
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

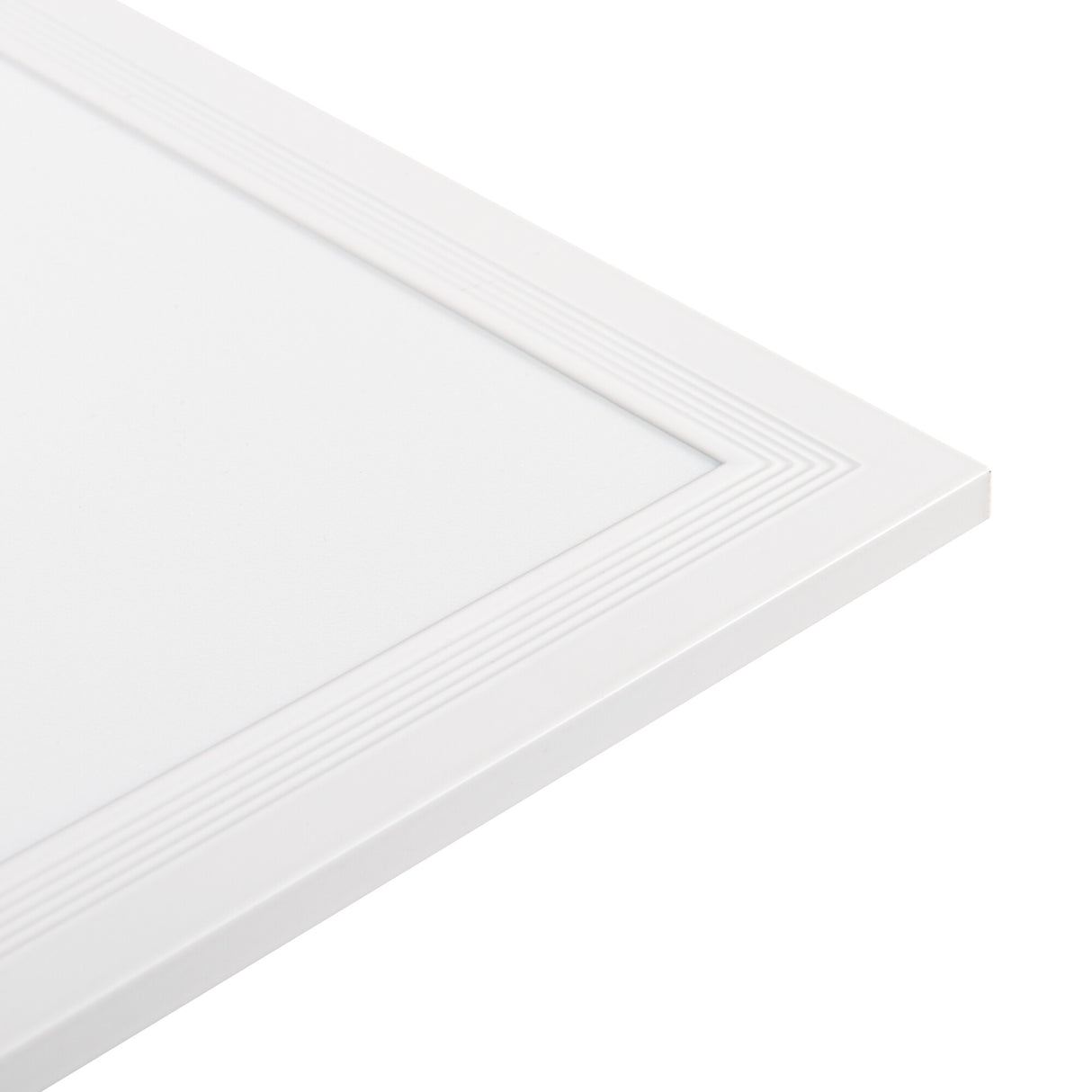

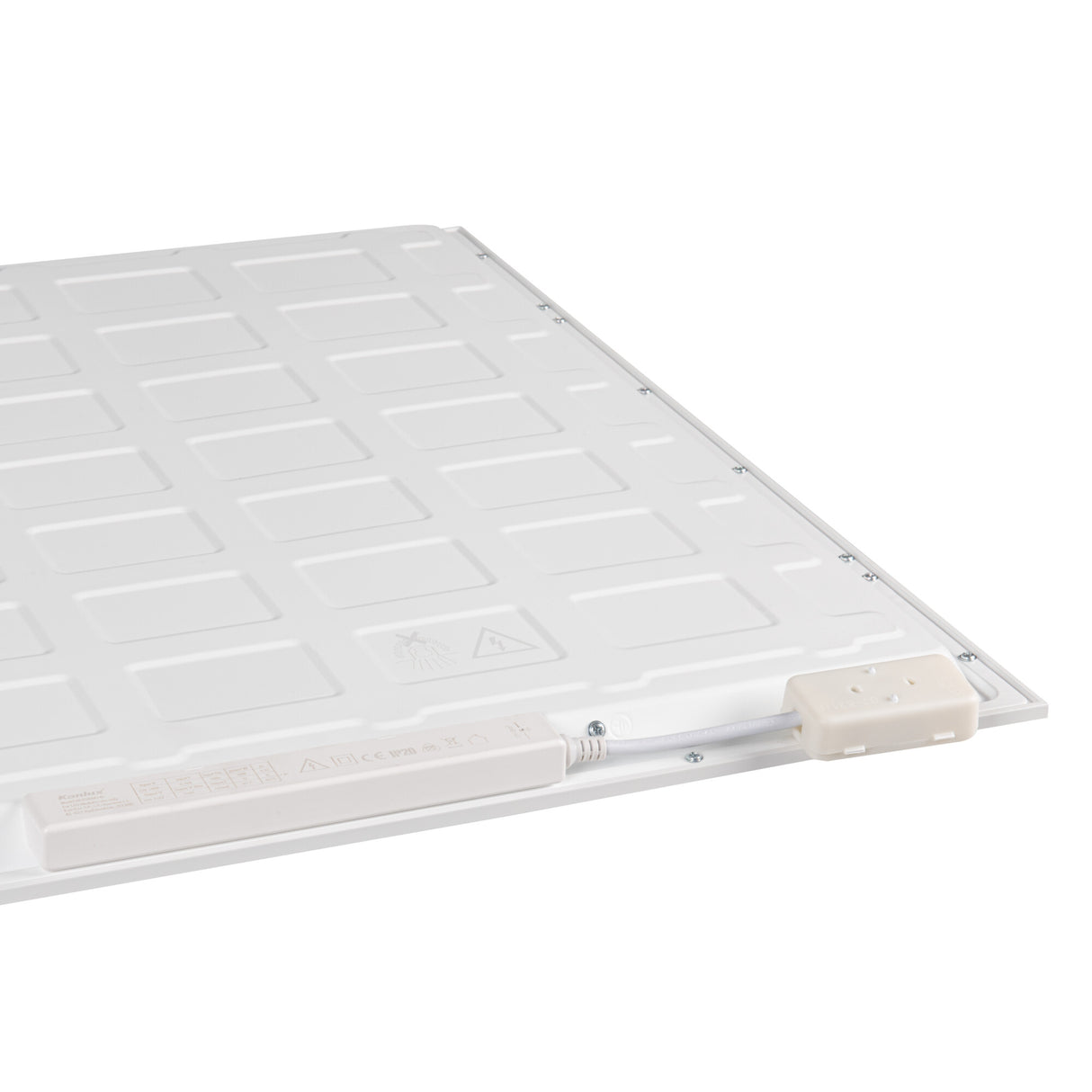

The Kanlux BLINGO 24W 4320 60NW is a recessed-mounted LED backlight panel delivering 4,320 lm at a neutral white 4000K colour temperature. Featuring an integrated LED driver and a junction box with a quick connector for pass-through wiring, this panel is designed for fast, reliable installation in commercial and office ceilings. Its grooved frame improves fit and finish, while a low profile of just 25 mm keeps the look discreet.

With a luminous efficacy of 180 lm/W, power factor of 0.92 and an expected service life of 50,000 hours (L70B50), the BLINGO panel offers efficient, long-lasting general lighting. The unit is Class I, IP20 rated and not suitable to be covered with thermal insulation. It is compatible with Kanlux ADTR frames for surface mounting if required.

Specification
Brand Kanlux
Model BLINGO 24W 4320 60NW
SKU / EAN 37178 / 5905339371782
Type Recessed-mounted LED panel (square)
Power 24 W
Luminous flux 4320 lm
Luminous efficacy 180 lm/W
Colour temperature 4000 K (neutral white)
Colour rendering index (Ra) 80
Beam / lighting angle 115°
Integrated light source LED SMD (integrated)
Dimmable No
Rated voltage / frequency 220–240 V AC, 50 Hz
Power factor 0.92
Service life 50,000 h (L70B50)
Number of on/off cycles ≥50,000
Protection class Class I
IP rating IP20
Ambient temperature range 5 ÷ 25 °C
Mounting Recessed mount in ceiling (compatible with Kanlux ADTR frame for surface mounting)
Dimensions (H×W×L) 25 × 595 × 595 mm
Weight 1.542 kg
Materials Panel/frame: steel; Lampshade/diffuser: plastic
Feeder / connector Junction box with quick connector, feeder included
Range of wire section 1–2.5 mm²
Minimum distance from illuminated object 0.5 m
Number of modules 8
Warranty 5 years
Additional notes Not suitable to be covered with thermal insulation
Downloads

Technical documentation and certificates are available from the product page. Click the links below to access datasheets, certificates and installation materials:
