Adastra MM321 Rack Mixer + BT/USB/FM Player

£19999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Rack-mountable 1U mixer with built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.

  • Bluetooth with programmable ID
  • Media player with USB playback and FM tuner
  • Switchable +20V phantom power
  • Variable priority muting for channel 1
  • 24V emergency mute contacts
Specification
Power supply 100-240Vac, 50/60Hz (IEC)
Inputs : Mic/Line 3 x XLR (bal/unbal)
Audio source Internal Bluetooth, USB & FM player
Outputs L+R XLR, Mono 6.3mm jack, Record out (RCA)
Emergency control 24V contacts mute all except channel 1
Phantom power +20V (switchable channels 1-3)
Fuse T1AL
Controls Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Inputs : Aux 2 x L+R RCA
Input : line 3.5mm jack to media player
Rear panel controls Priority muting level, mic/line and phantom DIP switches
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 20Hz - 18kHz
Frequency response : line 14Hz - 20kHz
Frequency response : aux 10Hz - 23kHz
Input sensitivity : mic/line -45dBV
Input sensitivity : aux/line -10dBV
Signal to noise ratio : mic 55dB
Signal to noise ratio : aux/line 60dB
THD 0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg
Bluetooth
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

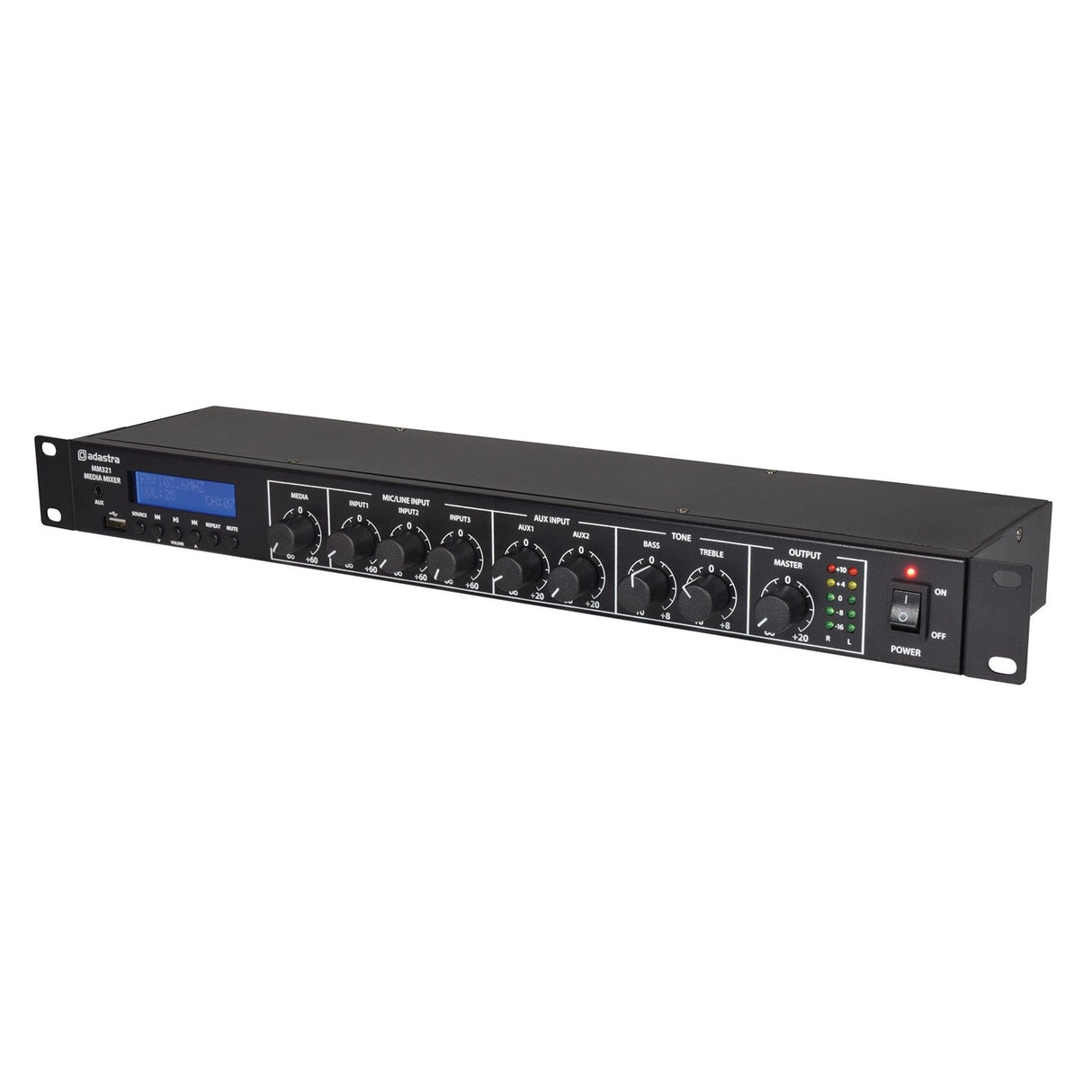

    The Adastra MM321 Rack Mixer + BT/USB/FM Player is a black rack-mounted audio mixer featuring multiple knobs and a digital display on the front panel. This versatile unit includes labeled controls such as volume, balance, power indicators, and an integrated Bluetooth receiver for seamless wireless connectivity.
