Adastra ML622 6 Mic + 2 Aux 1U Rack Mixer

£16199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.

  • 24Vdc power option
  • 6 switchable mic or line inputs
  • 2 stereo aux inputs
  • Individually switchable phantom power
Specification
Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse T1AL 250V (mains) or F500mA (24Vdc)
Inputs : Mic/Line 6 x balanced XLR
Inputs : Aux 2 x L+R RCA
Outputs L+R XLR, mono 6.3mm jack, L+R RCA (REC)
Controls 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
Input impedance 3.3k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 20Hz - 18kHz
Frequency response : line 14Hz - 20kHz
Frequency response : aux 10Hz - 23kHz
Input sensitivity : mic -45dBV
Input sensitivity : aux/line -10dBV
Signal to noise ratio : mic 55dB
Signal to noise ratio : aux/line 60dB
THD 0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg
Phantom power +20Vdc (switchable)
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

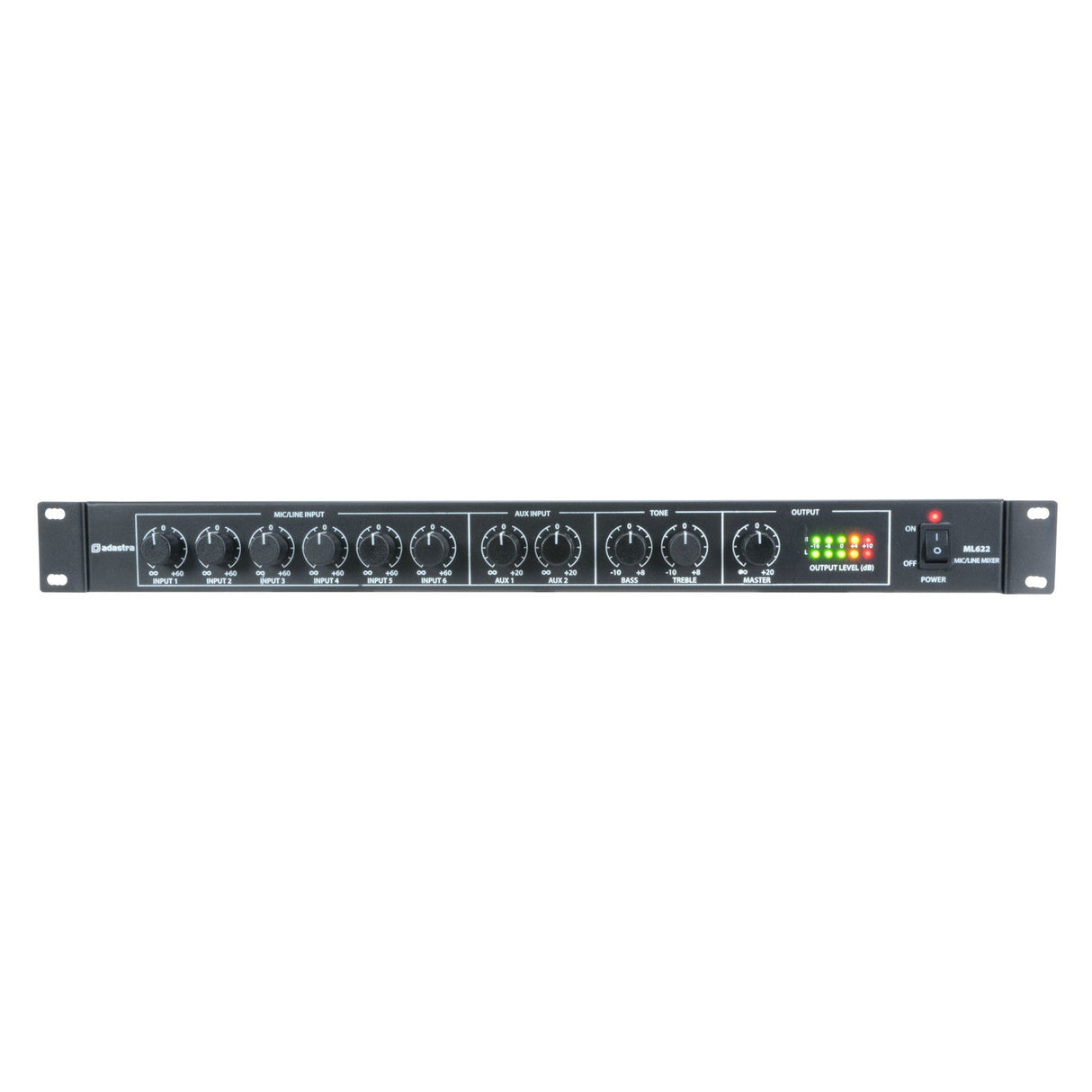

    The Adastra ML622 6 Mic + 2 Aux 1U Rack Mixer is a black rack-mountable mixer equipped with multiple knobs for input adjustments and output meters. Its front panel is labeled for each control, includes mic/line inputs, and features LED indicators to display current settings. Ideal for sound mixing and modulation, this mixer also offers phantom power capabilities.
