Adastra ML432 4 Mic + 3 Aux 1U Rack Mixer

£15499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.

  • 4 balanced microphone inputs
  • +20V phantom power on priority mic input
  • 3 stereo aux line inputs
  • Can tap from an existing 100V PA system
  • 24Vdc power option
Specification
Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse T1AL 250V (mains) or F500mA (24Vdc)
Phantom power +20Vdc (mic1 XLR input only)
Inputs : Mic 4 x balanced 6.3mm jack (+XLR for mic1)
Inputs : Aux 3 x L+R RCA
Inputs : priority Line level (6.3mm jack), 100V (terminals)
Outputs Left + Right 6.3mm jack (unbalanced)
Controls 4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
Rear panel controls Aux muting level, priority input level
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 130Hz - 21kHz
Frequency response : line 120Hz - 26kHz
Frequency response : aux 50Hz - 35kHz
Input sensitivity : mic -50dBV
Input sensitivity : line -19dBV
Input sensitivity : aux -12dBV
Signal to noise ratio : mic 54dB
Signal to noise ratio : aux/line 58dB
THD 0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

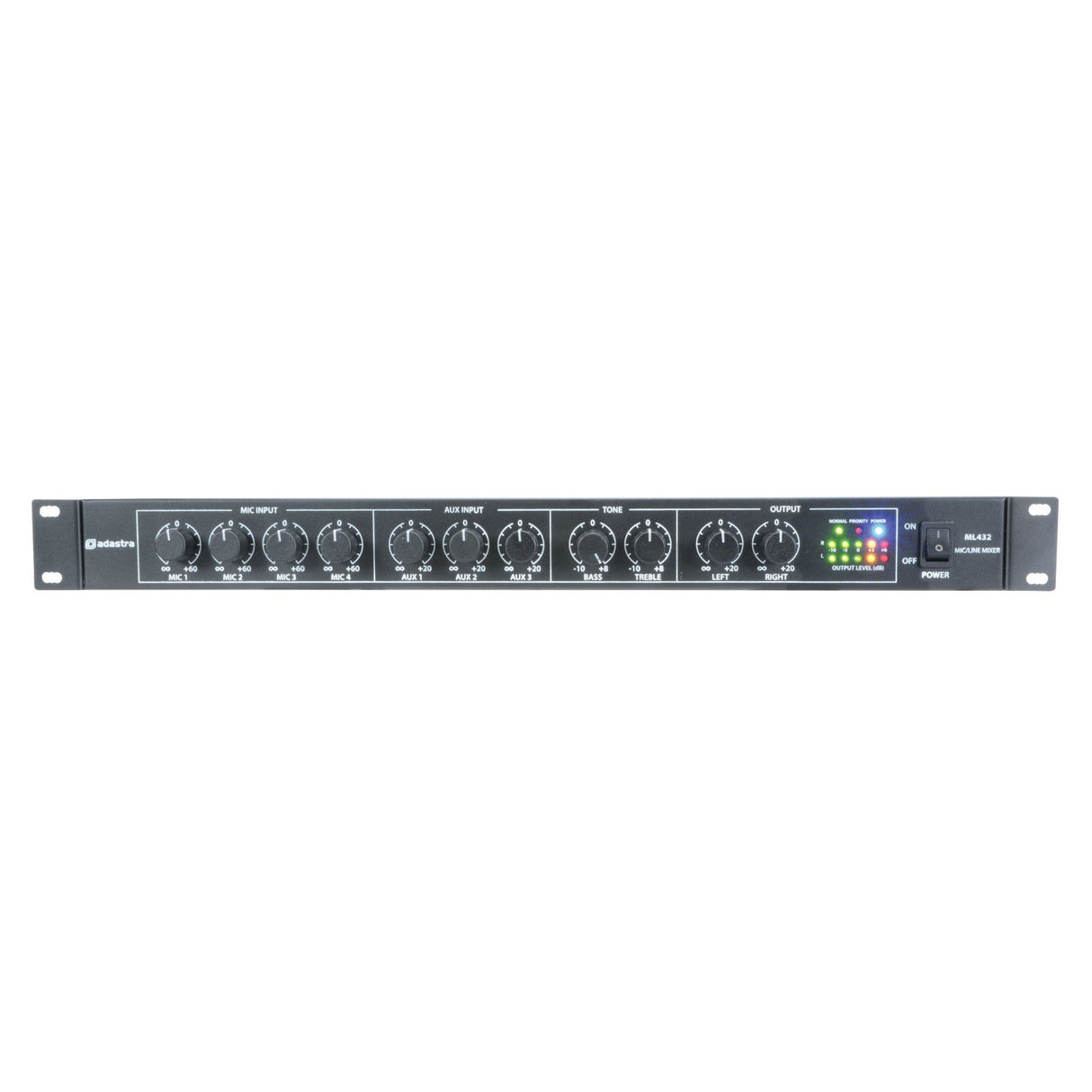

    The Adastra ML432 4 Mic + 3 Aux 1U Rack Mixer is a rack-mountable audio device featuring multiple dials for mic input, aux input, tone control, and output adjustment. It includes phantom power to enhance microphone performance. On the right side, you'll find a power button alongside an LED display. The mixer boasts a sleek black rectangular design, ideal for professional audio processing.
