Adastra LS26 Line Splitter 1:12/2:6

£8799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

  • Up to 12 outputs from 1 or 2 inputs
  • Individual volume control for each output
  • Input peak LEDs
Specification
Power supply 115/230Vac, 50/60Hz (IEC)
Inputs A & B, (6.3mm jack)
Outputs 1 - 6 & 7 - 12 (6.3mm jack)
Input impedance 20k Ohms
Output impedance 220 Ohms
Frequency response 20Hz - 20kHz, +0/-1dB
Signal to noise ratio >95dB
THD <0.008%
Dimensions 483 x 44 x 170mm
Weight 2.0kg
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

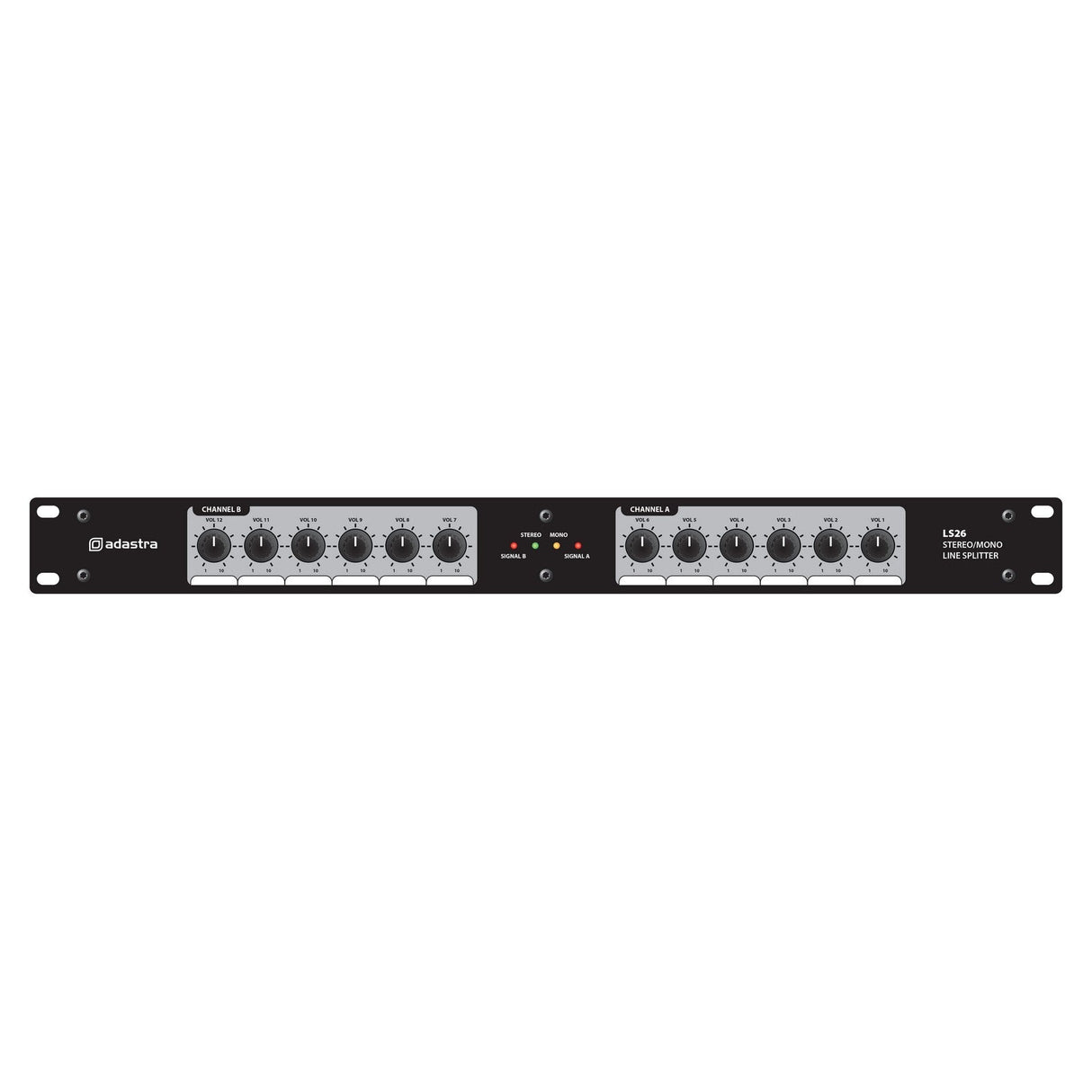

    Image of the Adastra LS26 Line Splitter 1:12/2:6, a rack-mounted device featuring controls and labeling. It includes dual sets of dials for Channel 1 and Channel 2, connectors, and centered LED indicators on a sleek black and gray panel designed for precise zone mixing.
