Adastra Hinged Rack Cabinet - 9U

£16799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra 9U Hinged Rack Cabinet is designed to make equipment management simple, secure, and efficient. Created for professional AV, IT, and networking installations, it provides safe housing for 19-inch rack-mount equipment with a lockable tempered glass front door for both visibility and protection. The rear section of the cabinet is hinged and lockable, allowing the entire unit to swing out when wall-mounted. This gives immediate access to the rear panels of installed devices, making cabling, adjustments, and servicing far easier without dismantling the setup.

Built with cold-rolled steel and reinforced with folded edges, the cabinet is strong and stable while maintaining a sleek, professional look. Its removable side panels further simplify access, and both front and rear rack strips are adjustable to support equipment of varying depths. Cable management is handled with top and bottom knock-outs, while ventilation is integrated to support cooling, with space for an optional fan if required.

Compact and practical, the 9U hinged cabinet is a reliable choice for anyone needing secure storage with quick access to wiring and connections.

  • Durable epoxy powder coated finish
  • Supplied with glass door, lock and 2 keys
  • Hinged rear section with lock and 2 keys
  • Easy to assemble with adjustable front & rear rack strips
  • Top and bottom knock-outs for cable feeds
Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 60kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Height 500mm
Mounting depth 370mm
Rack height 400mm (9U)
Depth 550mm
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

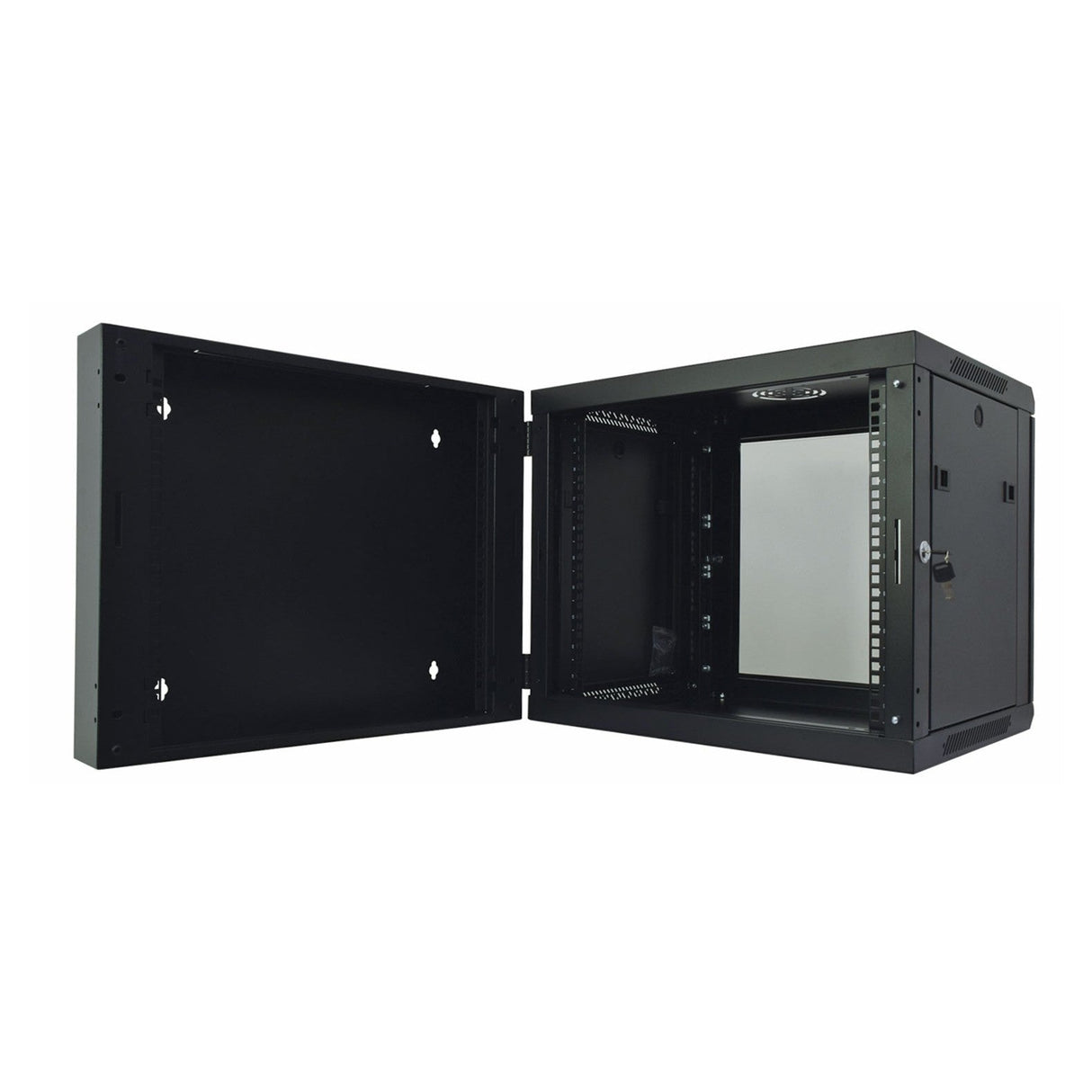

    The Adastra Hinged Rack Cabinet - 9U is a black, wall-mounted IT server rack cabinet with a hinged door that reveals its spacious interior, perfect for installing rack-mount equipment. It includes adjustable rack strips and a secure lock on the door to keep your network equipment organized and safe.
