Adastra Hinged Rack Cabinet - 6U

£16399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Easy-access cabinets for 19" rack-mount equipment with removable side panels and lockable front door. A lockable rear section is hinged to allow the cabinet to swing out when wall-mounted, revealing the rear panels of installed equipment for access to connections and wiring. Constructed from cold-rolled steel with folded edges for strength and stability. Front and rear rack strip is supplied for mounting to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. Secure and convenient containment for professional rack installations.

  • Durable epoxy powder coated finish
  • Supplied with glass door, lock and 2 keys
  • Hinged rear section with lock and 2 keys
  • Easy to assemble with adjustable front & rear rack strips
  • Top and bottom knock-outs for cable feeds
Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 60kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Height 367mm
Mounting depth 370mm
Rack height 267mm (6U)
Depth 550mm

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

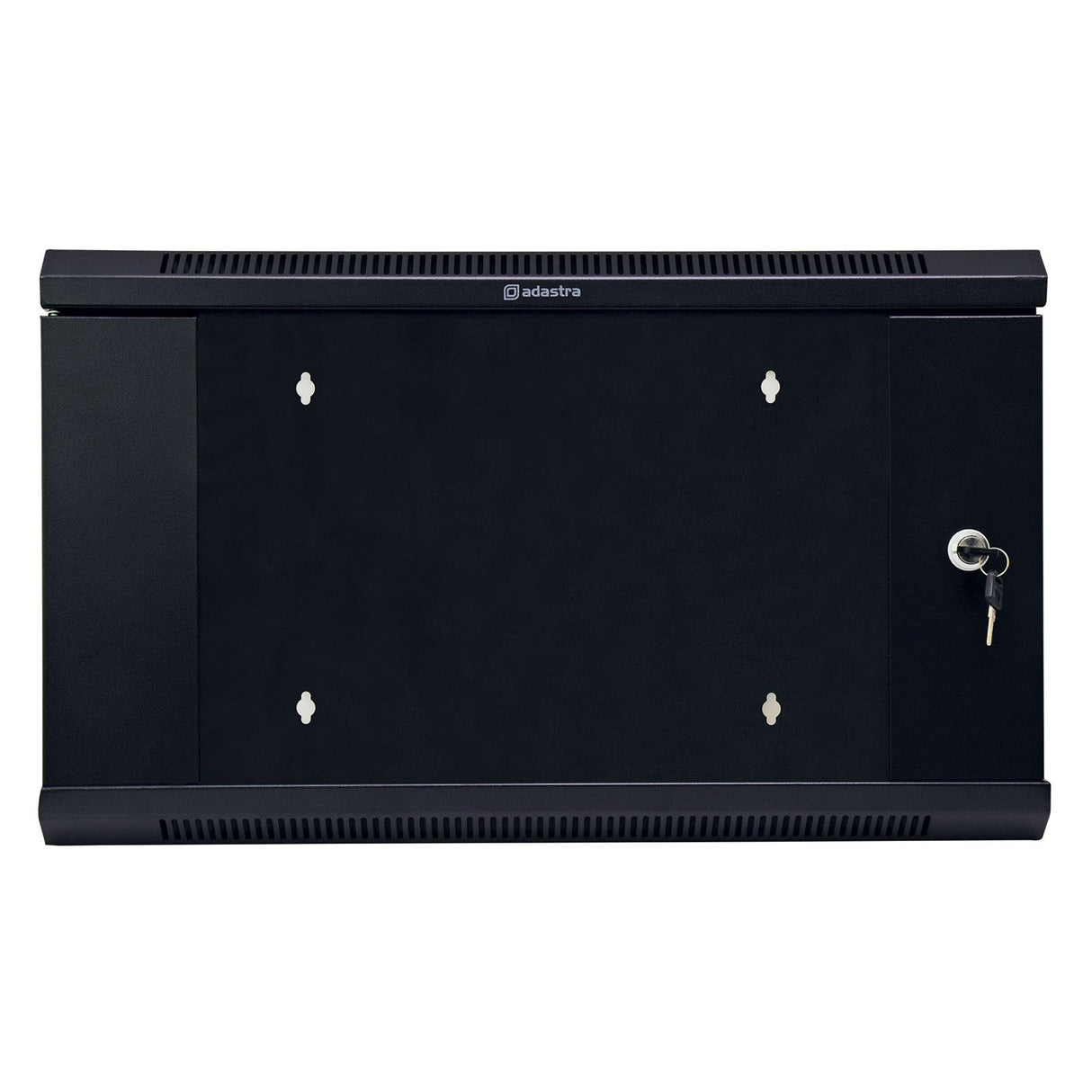

    The Adastra Hinged Rack Cabinet - 6U is a black wall-mount unit featuring a glass front door and adjustable rack strips. It comes with a lockable front door, complete with keys, and has ventilation slots on the top and bottom edges to ensure optimal airflow. This cabinet is ideal for securely mounting electronic rack equipment on any wall.
