Adastra 12U Shallow Rack Wall Cabinet

£8999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Wall mountable powder-coated steel cabinets for rack-mounting 19" equipment in light duy applications. A choice of 2 mounting positions for the front rack-mounting rails can accommodate a mounting depth of up to 280mm, or a shallower 220mm depth with space for protruding connectors in front. A glass window front door can be hinged either side and is fitted with a lock for security. A low profile solution for shallower rack equipment such as patch panels, wireless microphone receivers, mixers and smaller amplifiers.

  • Wall-mounting keyhole punch-outs on the rear panels
  • Knock-out apertures top and bottom for cable entry
  • Front and rear rack rails for securing equipment or shelves
  • Rack-mounting hardware supplied
  • Lockable toughened glass front door
Specification
Width 550mm
Depth 300mm
Construction 1.2mm cold-rolled steel + tempered glass door
Max. load 30kg (static)
Mounting depth 200mm (255mm front rail to wall)
Rack capacity 12U
Height 590mm
Weight 12.56kg
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

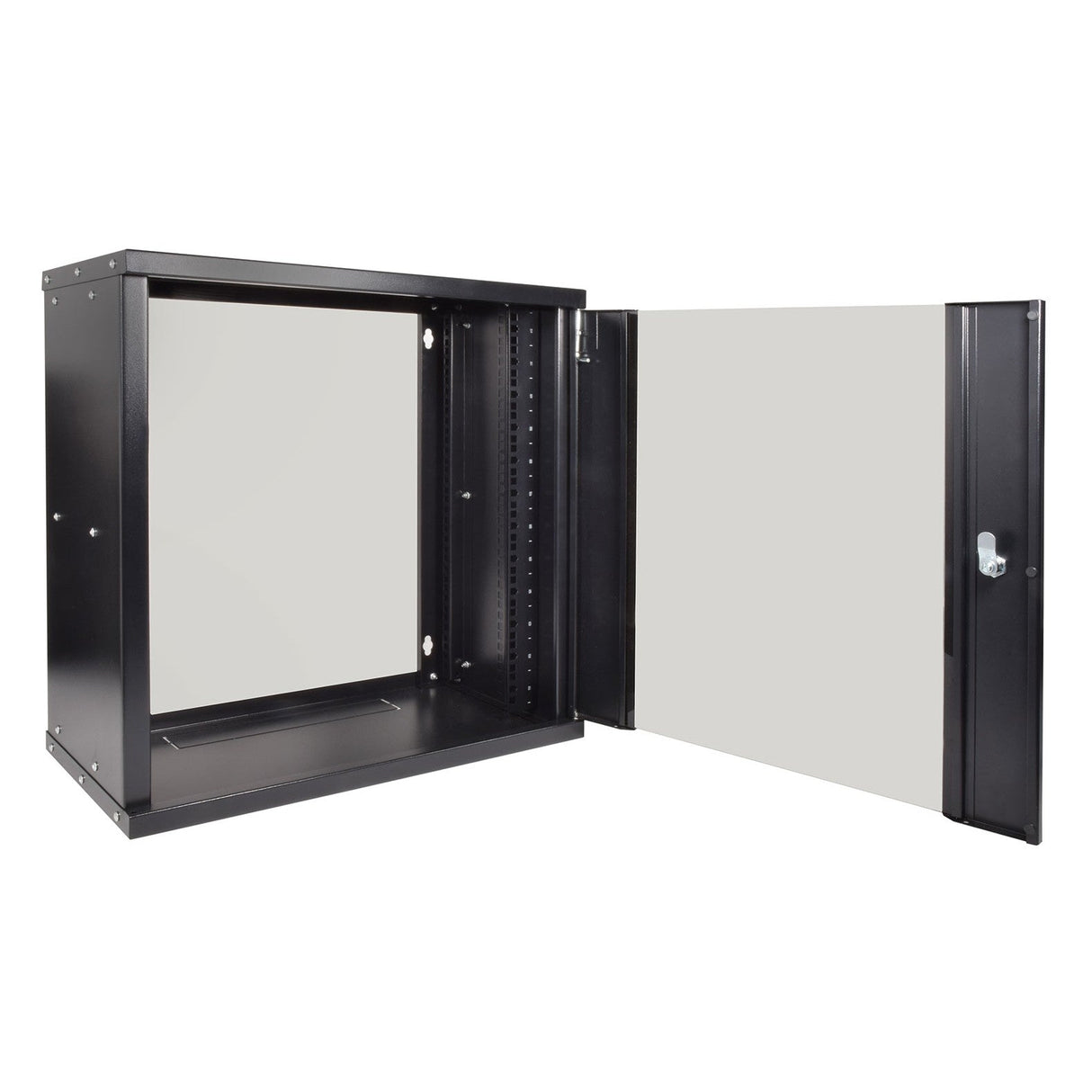

    The Adastra 12U Shallow Rack Wall Cabinet provides a compact solution in black metal, featuring an open, transparent front door. It is equipped with inside rack-mounting brackets for networking or electronic equipment and comes with a handle and lock for added security.
