120° PIR Sensor Module W/Override 50x50mm - Grey

£1899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Optimize energy savings and lighting management with this grey PIR sensor module, offering an override feature for versatile use. Designed for euro modular frames accepting a 50×50mm module, it delivers an understated grey finish well-suited to sophisticated interiors. The passive infrared mechanism monitors motion across a 120° angle and up to five meters, simplifying illumination in hallways, bathrooms, or commercial corridors.

Rated for a maximum load of 100W LED or 200W incandescent, it comfortably supports various lighting schemes. Once triggered, the sensor keeps lights active for a pre-set three minutes, then switches them off to curb unnecessary power usage. Lux sensitivity ensures activation only in low ambient light, while the convenient override button allows occupants to switch from AUTO mode to ON when continuous lighting is needed. Requiring a 47mm back box, it integrates smoothly into existing wiring setups and uses live and neutral for steadfast operation.

Modular Faceplate (not included)

Specification
Height 50 mm
Width 50 mm
Recessed Depth 40 mm
Min. Mounting Box Depth 47mm
Construction Polycarbonate
Finish Grey
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Downloads

Product Specification Sheet

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

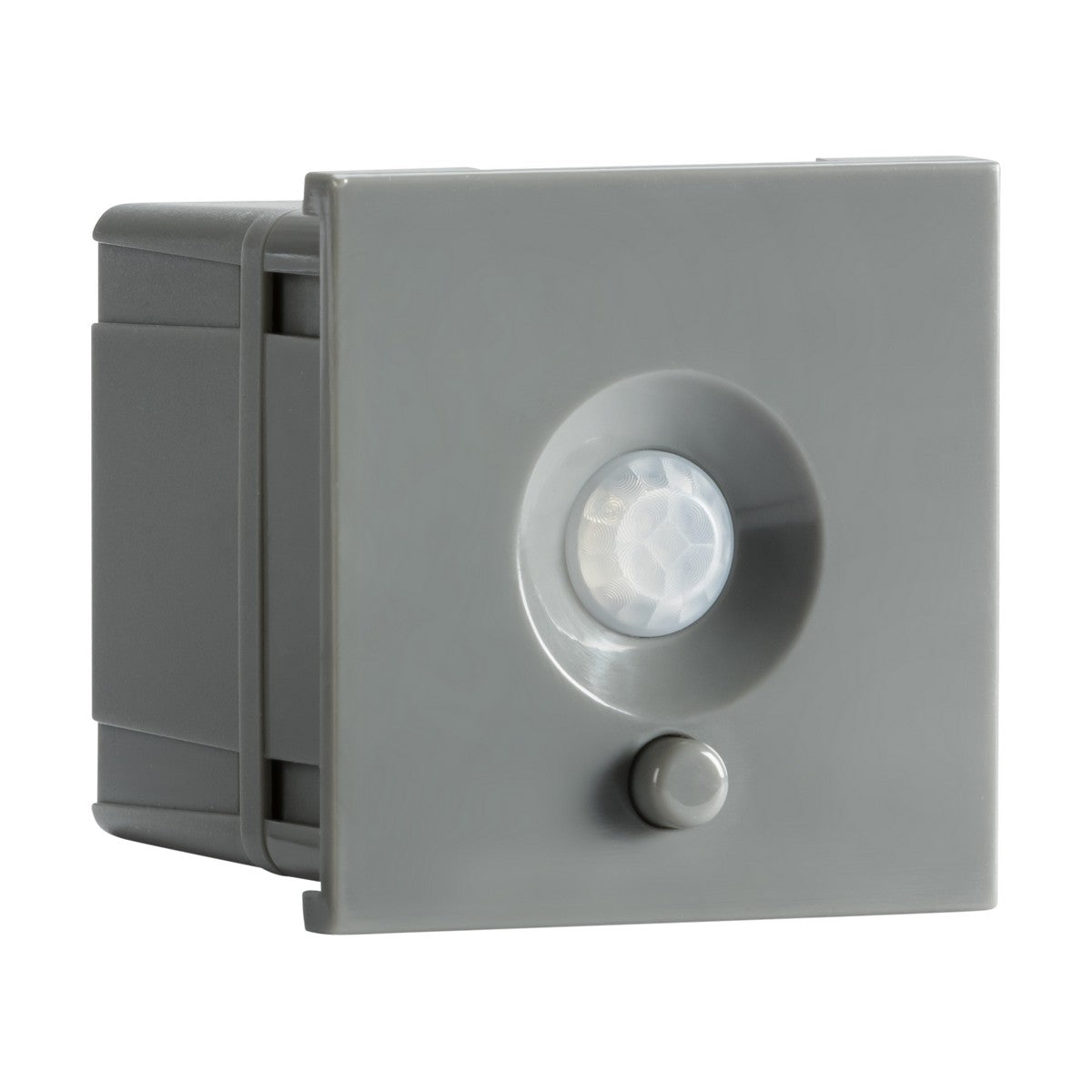

    The 120° PIR Sensor Module W/Override 50x50mm - Grey integrates seamlessly into euro modular frames with its square design, central circular lens, and a small knob underneath. This lux-sensitive passive infrared sensor is ideal for wall mounting and ensures efficient operation.
