TENAX10-20W CCT Self-Test Emergency LED Gear Tray With Sensor

£4699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
30 Day Returns
Flexible payment options

Knightsbridge's latest innovation is the wattage and colour-adjustable LED gear trays. It reduces complexity by combining triple wattage and colour adjustments into a single gear tray. Secured to the casing* via four butterfly clips paired with the push-fit terminal block, ensures a speedy installation. The gear trays are compatible with the Tenax One and Tenax Quad range of casings.

*Casing is not included and must be purchased separately.

  • 3-hour emergency with a Lithium (LiFePO4) battery
  • Self-test emergency for automatic function and duration tests
  • Adjustable microwave sensor: detection area, daylight levels and hold time
  • 3000K/ 4000K/ 5700K adjustable
  • 10W/ 15W/ 20W adjustable
  • Push-fit terminals with loop-in-loop-out capabilities
  • Options available: standard, emergency, self-test emergency, microwave sensor, emergency with a microwave sensor, self-test emergency with a microwave sensor, with daylight sensor, emergency with a daylight sensor
Length 235 mm
Width 235 mm
Projection 28 mm
Construction Aluminium
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Emergency Maintained / Non-maintained / Switched
Lamp Technology SMD LED
Dimmable No
L70B50 40000
Energy Rating (Class) post 2021 SLR D
CCT 3000/4000/5700 K
Light Colour CCT
Lumens 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm
Lumens (Em. mode) 125 lm
Wattage 10/15/20
Efficacy 151/147/141 lm/W
CRI >85
Driver Type Constant Current
Warranty 5

Product Specification Sheet

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

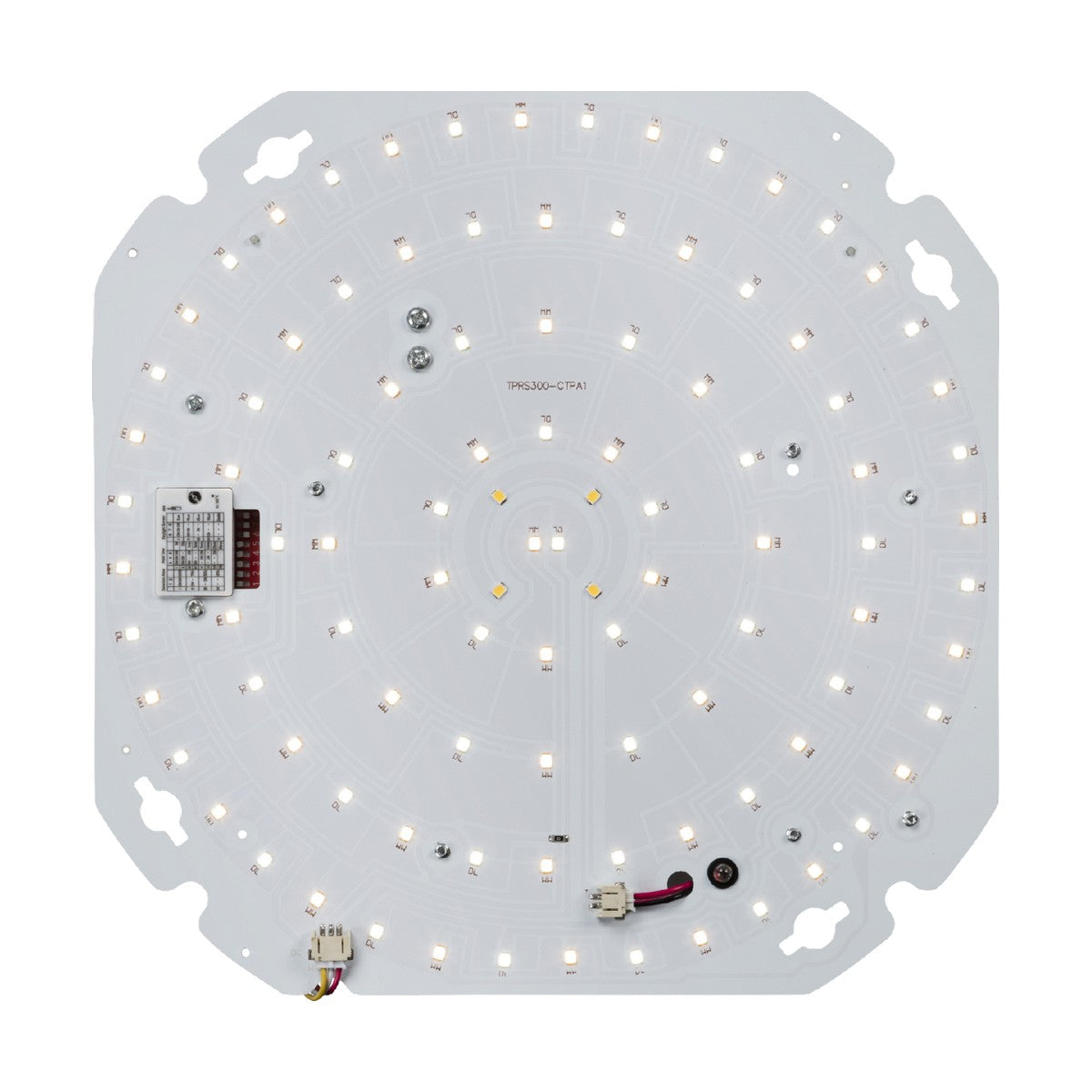

    The TENAX10-20W CCT Self-Test Emergency LED Gear Tray With Sensor is a circular board housing color-adjustable LEDs in concentric circles, mounted on a square white base with rounded edges. It comes equipped with gear trays, connectors, and a small electronic component.
