TENAX 10-20W CCT LED Gear Tray With Sensor

£2899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options

Knightsbridge's latest innovation is the wattage and colour-adjustable LED gear trays. It reduces complexity by combining triple wattage and colour adjustments into a single gear tray. Secured to the casing* via four butterfly clips paired with the push-fit terminal block, ensures a speedy installation. The gear trays are compatible with the Tenax One and Tenax Quad range of casings.

*Casing is not included and must be purchased separately.

  • Adjustable microwave sensor: detection area, daylight levels and hold time
  • 3000K/ 4000K/ 5700K adjustable
  • 10W/ 15W/ 20W adjustable
  • Push-fit terminals with loop-in-loop-out capabilities
  • Options available: standard, emergency, self-test emergency, microwave sensor, emergency with a microwave sensor, self-test emergency with a microwave sensor, with daylight sensor, emergency with a daylight sensor
Length 235 mm
Width 235 mm
Projection 28 mm
Construction Aluminium
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Lamp Technology SMD LED
Dimmable No
L70B50 40000
Energy Rating (Class) post 2021 SLR D
CCT 3000/4000/5700 K
Light Colour CCT
Lumens 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm
Wattage 10/15/20
Efficacy 151/147/141 lm/W
CRI >85
Driver Type Constant Current
Warranty 5

Product Specification Sheet

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

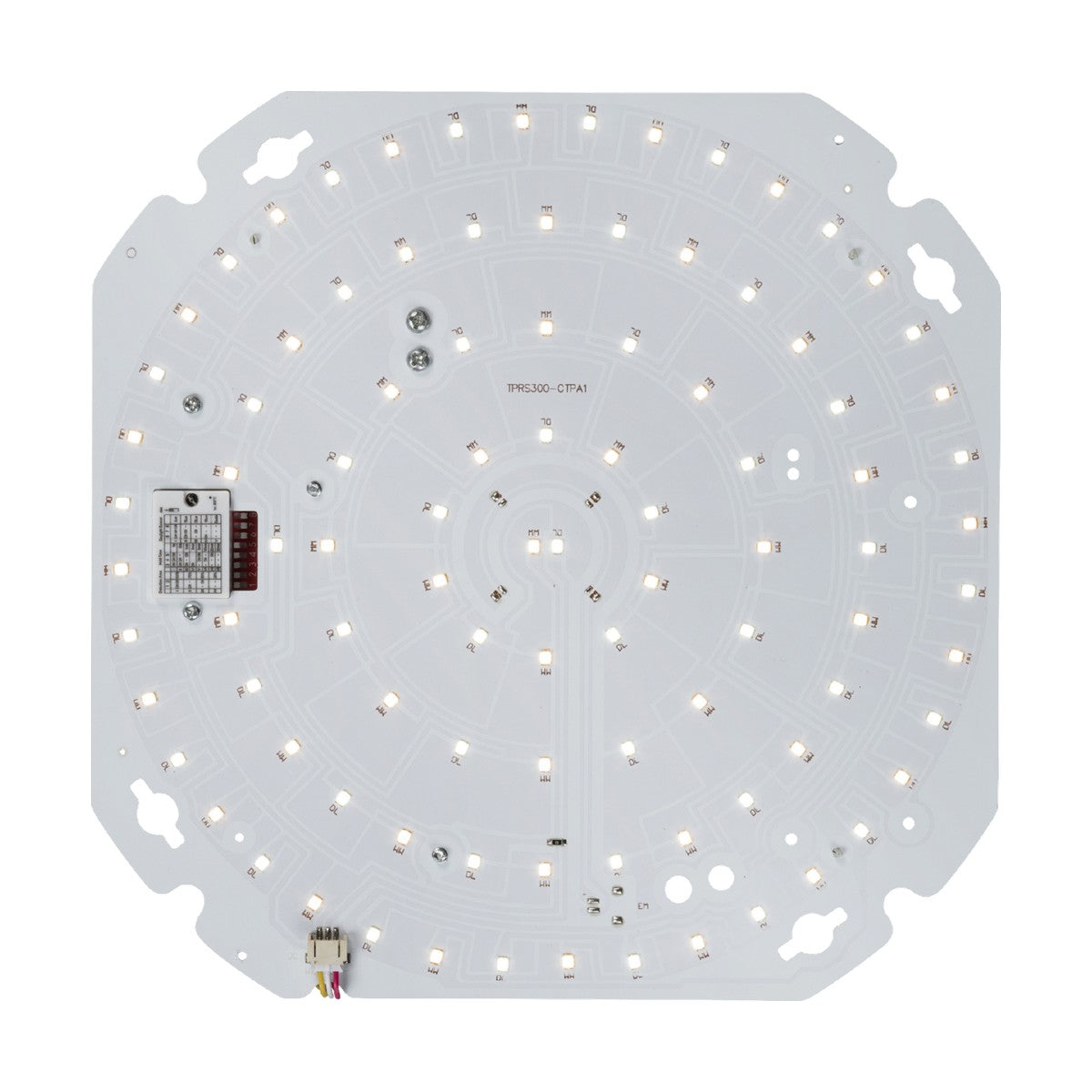

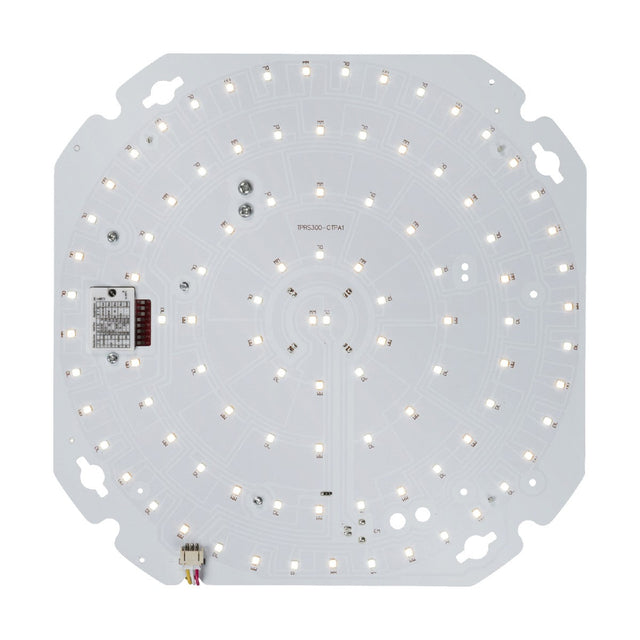

    The TENAX 10-20W CCT LED Gear Tray With Sensor features a circular LED light board with many small bulbs arranged in concentric circles. Boasting a white background, its visible electronic components highlight advanced LED gear trays. The design includes adjustable wattage and color settings, providing versatile lighting solutions.
